Brand JL AUDIO
SKU:  ACP108LGW

JL Audio ACP108LG-W3v3 Single 8" Amplified Subwoofer System

Brand JL AUDIO
SKU:  ACP108LGW

JL Audio ACP108LG-W3v3 Single 8" Amplified Subwoofer System

$599.99
In stock
Earn 599 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.
Installation Service
Available at all Car Toys locations
Our certified installers are true automotive enthusiasts. Their work is their passion and for jobs big or small, simple or complex, there's no better way to go.
JL Audio ACP108LG-W3v3 Single 8" Amplified Subwoofer System-Car Toys
Brand JL AUDIO
SKU:  ACP108LGW
In stock

JL Audio ACP108LG-W3v3 Single 8" Amplified Subwoofer System

$599.99
Earn 599 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.

Overview

About This Product

Description

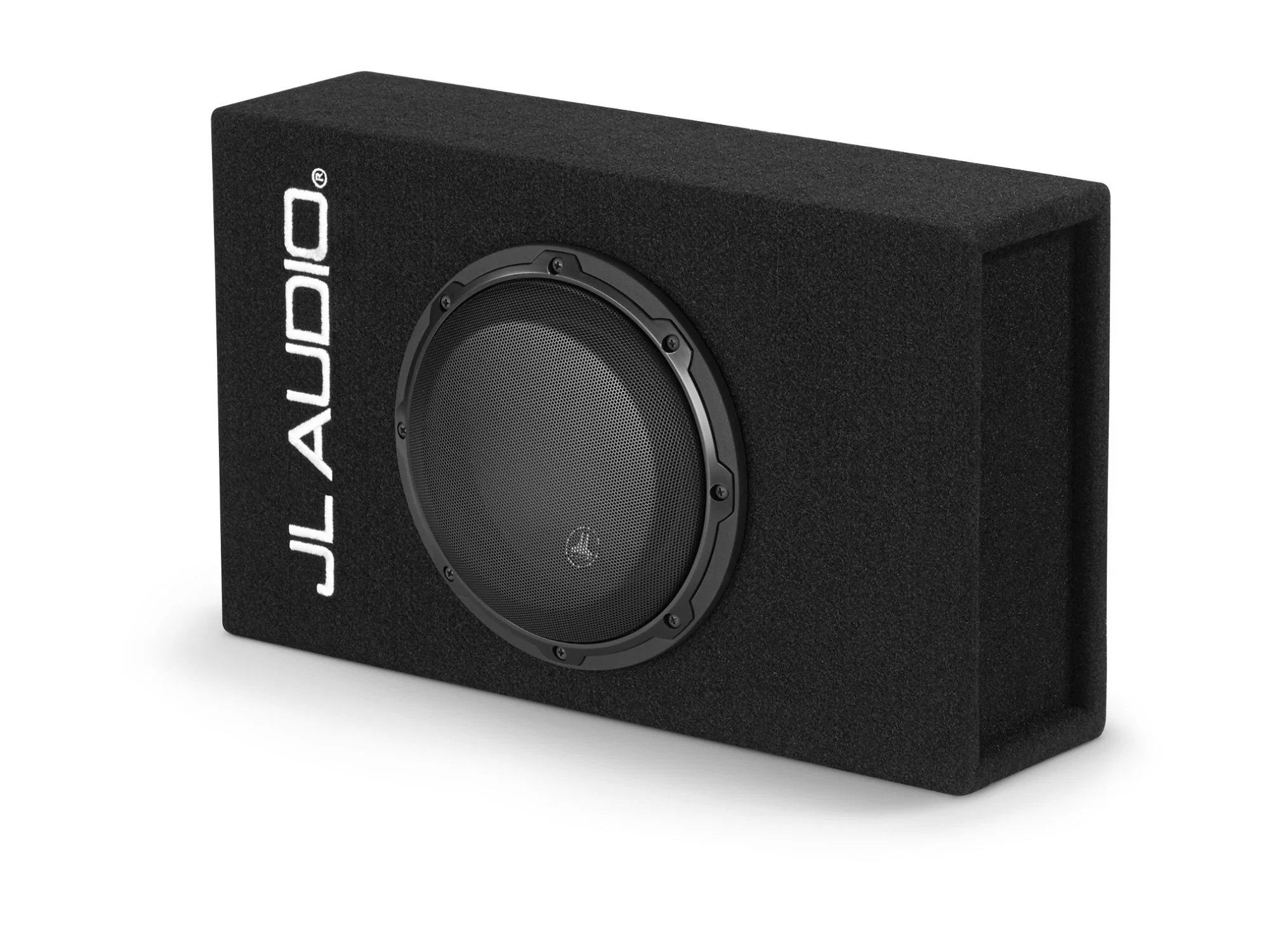

JL Audio ACP108LG-W3v3 Single 8" Amplified Subwoofer System

Amplified Subwoofer System with Single 8W3v3-0.40 Subwoofer, Built-In 250W Class D Amplifier, Black Carpet - Ported Enclosure With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency. Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 8Wv3 Subwoofer. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port. Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems. Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage. Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer. Construction: CNC-Cut High-Grade MDF Enclosure and Subwoofer Built in USA with global components. Signal Processing
Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 200 Hz
Output Polarity Switch: Yes
Remote Subwoofer Level Control: Optional (RBC-1) Physical Specifications Dimensions External Width (W): 18.5 in / 470 mm
External Height (H): 11.125 in / 283 mm
External Depth (D1): 5.125 in / 130 mm
Net Weight: 19.9 lb / 9.03 kg Specifications
Continuous Power Handling (RMS): Built-in amplifier 250 W @ 0.40 Ω
System Nominal Impedance: 0.40 Ω
Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS
Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS
Recommended Copper Power / Ground Wire Gauge: 8 AWG wire
Fuse Rating: 30 A (ATO or ATC)
Enclosure Type: Slot-ported, Low-profile
Finish: Black carpet
Grille Included: Black Steel Mesh
  • Built-In 250W Class D Amplifier
  • Single 8W3v3-0.40 Subwoofer
  • Ported Enclosure
