Alpine SPS-M601

• 6-1/2" 2-way marine speakers (pair)
• Poly-Mica woofer with rubber surround
• 7/8" titanium/PEI balanced-dome tweeter
• Silver UV-resistant grilles and high-temperature ABS custom frames
• Power range: 2-35 watts RMS (110 watts peak power)
• Frequency response: 60-22,000 Hz
• Sensitivity: 89 dB
• IPx5 Water Resistant Design
• Salt/Fog and UV Tested

Alpine R2-S65 R-Series 6.5" Next Gen Speakers with Installation

The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.

Hi-Res Certified
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.

Glass-Fiber Reinforced Cone
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.

Upgraded Mid-Bass
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.

HAMR Surround
Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

Pro vs Standard
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.

Specifications
Maximum Peak Power: 300 Watts
Maximum RMS Power: 100 Watts
Nominal Impedance: 4 Ohm
Frequency Response: 65Hz-40kHz
Sensitivity: 88dB SPL (1W @ 1m)
Woofer Mounting Depth: 6,3cm
Woofer Cutout Diameter: 13,5cm

What's in the Box (x2) 6.5” Mid-Bass Speakers w/1" Coaxial Tweeters
(x2) Grilles
Mounting Hardware (x8 Screws, x8 Speed Clips)
Alpine Registration Card
Alpine Limited Warranty Sheet
Owner’s Manual
Installation Guide

Infinity REF607F Reference Series 6.5" Coaxial Speaker Pair

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations.

Features

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

What's in the box
1 pair of coaxial speakers
8 large mounting screws
8 speed clips
8 small mounting screws
1 pair of adapter rings
Foam mounting tape
Owner’s manual

JL Audio C2-570x

• Continuous Power Handling (RMS) 60 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 15 - 100 W
• System Efficiency 90.5 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 53 Hz - 22 KHz ± 3 dB

• Frame Outer Diameter* (A) 5.47 x 7.68 in / 139 x 195 mm
• Grille Tray Outer Diameter (B) N/A
• Magnet Outer Diameter (C) 2.76 in / 70 mm
• Frontal Coaxial Tweeter Protrusion** (D) 0.47 in / 12 mm
• Frontal Grille Protrusion (E) N/A
• Mounting Hole Diameter (F) N/A
• Mounting Depth (G) 2.43 in / 62 mm

Infinity REF697F Reference Series 6x9 Coaxial Speaker Pair

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Infinity Reference 4032CFX

Features and Benefits

• Description: 4" (100mm) coaxial car speaker
• Power Handling: 35W RMS, 105W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 75Hz – 21kHz
• Impedance: 3.0 ohms

• 1 pair of coaxial speakers
• Foam mounting tape
• Owner’s manual

Infinity Reference 9632IX

Features and Benefits

• Description: 6" x 9" (152mm x 230mm) coaxial car speaker
• Power Handling: 100W RMS, 300W peak
• Sensitivity (@ 2.83V): 94dB
• Frequency Response: 46Hz – 20kHz
• Impedance: 3.0 ohms

• 1 pair of coaxial speakers
• 1 pair of speaker grilles
• 1 pair of spacers
• 8 mounting screws
• 8 speed clips
• Foam mounting tape
• Owner’s manual

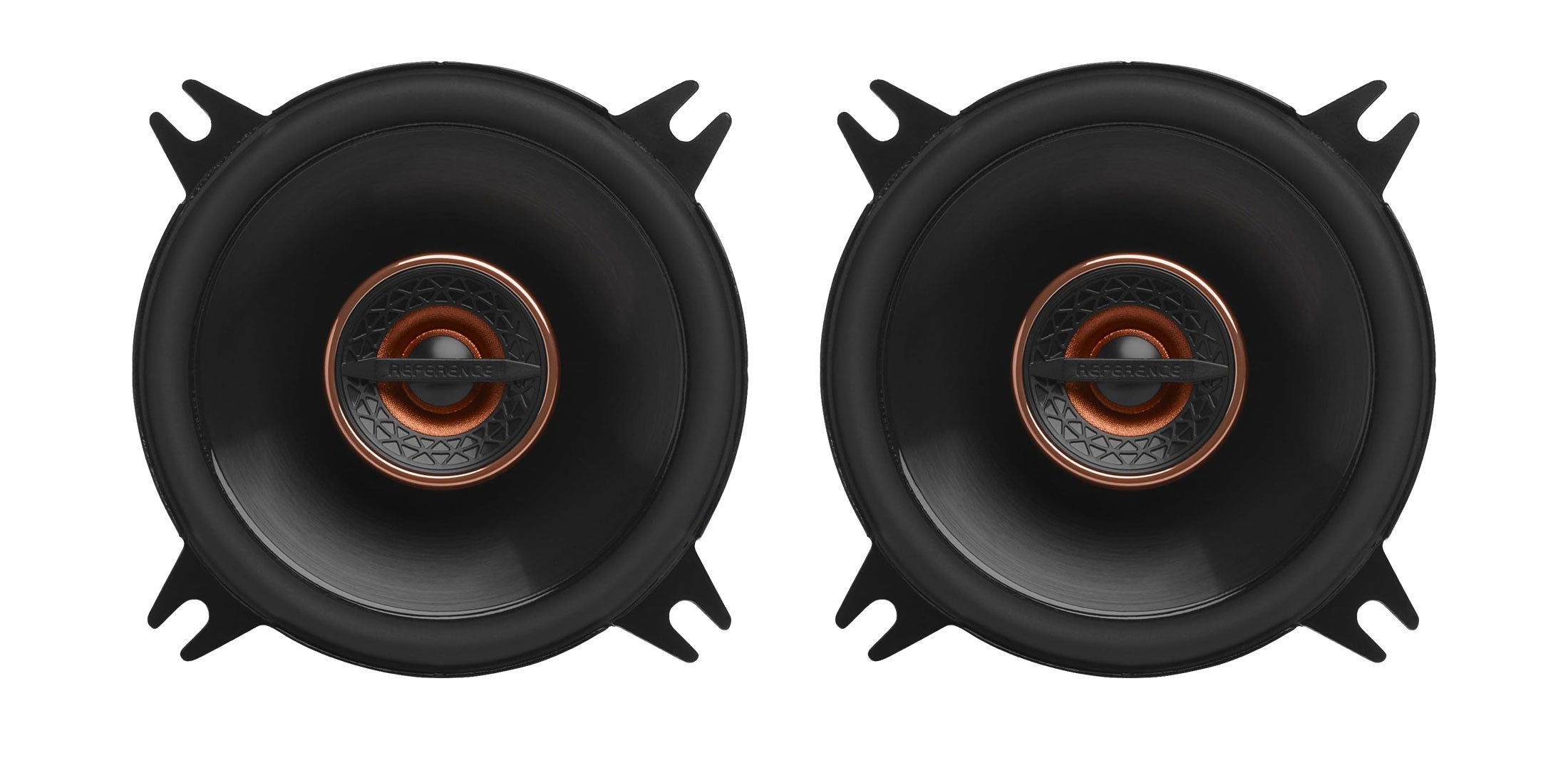

Infinity REF407F Reference Series 4" Coaxial Speaker Pair

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Infinity REF687F Reference Series 6x8 Coaxial Speaker Pair

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Focal ICU 100

• Woofer: 4" (100mm)
• Voice coil diameter: 1" (25mm)
• Max. power: 80W
• Nom. power: 40W RMS
• Sensitivity (2.83V/1m): 90.3dB
• Frequency response: 100Hz-21kHz
• Al/Mg inverted dome tweeter
• Accessories: delivered without grilles
• Integrated crossover: 6dB/oct

Alpine S2-S80C 8" S-Series Next-Gen Hi-Res Component Speaker Set

JL Audio C2-690tx

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-690tx system features 6 x 9-inch (150 x 230 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6 x 9-inch (150 x 230 mm) format is a direct fit in many vehicles. The Mid-Range driver is ferrofluid-cooled, with a 2-inch Mylar® cone diaphragm to smoothly bridge the gap between the woofer and the dome tweeter.

Tweeters are mounted next to the mid-range driver and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic Sold as a pair.
General Specifications

• Continuous Power Handling (RMS) 70 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 15 - 125 W
• System Efficiency 93 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 53 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

• Frame Outer Diameter* (A) 6.40 x 9.33 in / 163 x 237 mm
• Grille Tray Outer Diameter (B) 6.75 x 9.63 in / 172 x 245 mm
• Magnet Outer Diameter (C) 3.94 in / 100 mm
• Frontal Coaxial Tweeter Protrusion** (D) 0.75 in / 19 mm
• Frontal Grille Protrusion*** (E) 0.98 in / 25 mm
• Mounting Hole Diameter (F) N/A
• Mounting Depth (G) 3.06 in / 78 mm

*Does not take into account mounting tabs **Frontal coaxial tweeter protrusion measured from mounting surface ***Frontal grille protrusion measured from mounting surface

• Zero Protrusion Tweeter
• Extended VC for Increased Acoustic Range
• Fits Nearly Every Vehicle on the Road

JL Audio C2-650X Evolution Series Coaxial Speakers

The Evolution C2 systems deliver exceptional sound quality, offering sparkling high-frequency detail, smooth midrange, and powerful mid-bass. This is achieved through real silk dome tweeters and precision-engineered woofer designs.

The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities, and stamped steel frames. These woofers are crafted using JL Audio's extensive expertise and advanced modeling systems, ensuring outstanding performance. The 6.5-inch format is designed to fit directly into many vehicles, with multiple mounting patterns on the woofer frame for easy installation.

The 0.75-inch silk dome tweeters are coaxially mounted to deliver smooth, extended response both on and off axis. Their compact design minimizes protrusion, enabling the C2 coaxial speakers to fit seamlessly behind most factory speaker grilles.

Each system includes woofer grilles, featuring a black grille tray with satin silver accents and a black steel mesh grille adorned with an electroformed JL Audio logo.

• Continuous Power Handling (RMS) 60 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 15 - 100 W
• System Efficiency 91 dB @ 1 W / 1 m System
• Nominal Impedance 4 Ohm
• System Frequency Response 59 Hz - 22 KHz ± 3 dB

• Frame Outer Diameter* (A) 6.5 in / 165 mm
• Grille Tray Outer Diameter (B) 6.84 in / 174 mm
• Magnet Outer Diameter (C) 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion** (D) 0.45 in / 12 mm
• Frontal Grille Protrusion*** (E) 0.85 in / 22 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.44 in / 62 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
***Frontal grille protrusion measured from mounting surface

Focal 165CA1SG

• 120 Watt Power Handling
• Built-In Crossover
• Rotating Inverted Dome Tweeter
• All Weather Woven Fiberglass Cone

• 5-¼" 2-way Car Speakers
• Peak: 225 watts
• RMS: 75 watts
• Impedance: 4 Ohms
• Reliable

• 80 Watts RMS | 240 Watts Peak
• 1" Soft Dome Tweeter
• Poly Propylene, Glass Fiber Woofer

Infinity Reference 6532IX

Features and Benefits

• Description: 6-1/2" (160mm) coaxial car speaker
• Power Handling: 60W RMS, 180W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 53Hz – 21kHz
• Impedance: 3.0 ohms

• 1 pair of coaxial speakers
• 1 pair of speaker grilles
• 8 large mounting screws
• 8 speed clips
• 8 small mounting screws
• 1 pair of adapter rings
• Foam mounting tape
• Owner’s manual

Alpine S-S65

Overview

• Incredible sound quality
• Perfect for an OEM upgrade with many sizes to choose from to suit almost any vehicle
• Now available in a 6x9-inch component set, perfect for newer trucks and SUVs
• Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
• Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement
• 1-inch silk dome tweeter (3/4-inch silk dome tweeter on the S-S40 speaker)
• Grilles available for 6x9-inch, 6.5-inch, and 5.25-inch models (grilles sold separately)
• S-Series speakers deliver the winning combination of incredible sound and value within an entry-level category.

• 6.5-inch models: Compatible with the KTE-S65G Grille

• Max RMS Power Capacity: 80W
• Peak Power Capacity: 240W

Alpine S2-S40C 4" S-Series Next-Gen Hi-Res Component Speaker Set

Infinity Reference 9633IX

Features and Benefits

• Description: 6" x 9" (152mm x 230mm) 3-way car speaker
• Power Handling: 100W RMS, 300W peak
• Sensitivity (@ 2.83V): 94dB
• Frequency Response: 46Hz – 30kHz
• Impedance: 3.0 ohms

• 1 pair of 3-way speakers
• 1 pair of speaker grilles
• 1 pair of spacers
• 8 mounting screws
• 8 speed clips
• Foam mounting tape
• Owner’s manual

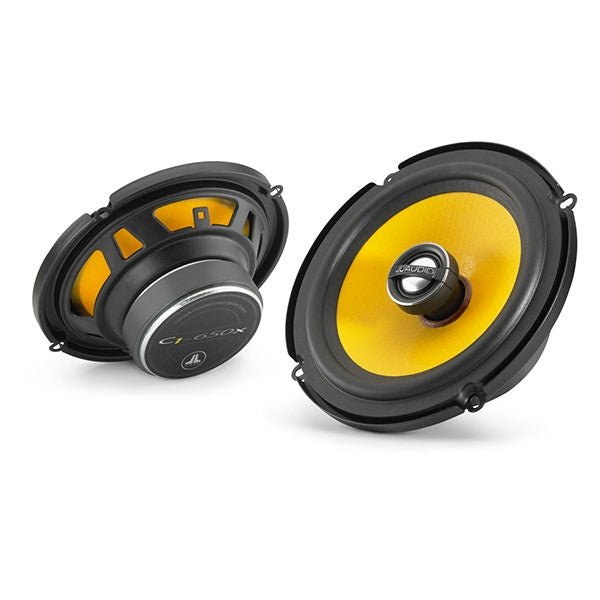

JL Audio C1-650x

Specifications

• Continuous Power Handling (RMS) 50 W
• Peak Music Power 225 W
• Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
• System Efficiency 90.5 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 48 Hz - 24 KHz ± 3 dB

• Frame Outer Diameter* (A) 6.25 in / 159 mm
• Grille Tray Outer Diameter (B) N/A
• Motor Outer Diameter (C) 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion** (D) 0.72 in / 18 mm
• Frontal Grille Protrusion (E) N/A
• Mounting Hole Diameter (F) 5.02 in / 128 mm
• Mounting Depth (G) 2.07 in / 53 mm

Technology

• 50 Watts RMS | 150 Watts Peak Power
• Fits Nearly Every Car Made
• Zero-Protrusion Tweeters

• 50 Watts RMS | 150 Watts Peak
• Frequency Response: 50Hz – 20kHz
• Sensitivity - SPLo [ dB @ 1W, 1m ]: 88dB

• Zero Protrusion Tweeter
• Extended VC for Increased Acoustic Range
• Fits Nearly Every Vehicle on the Road
