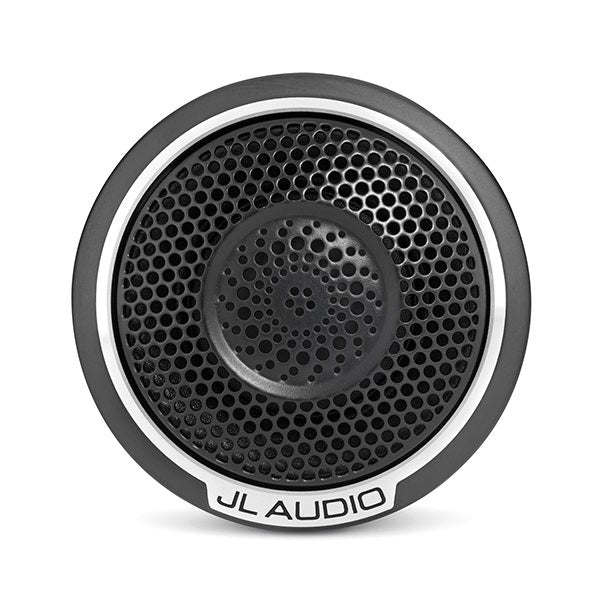

JL Audio C7-100ct 1" Component Dome Tweeter - Single Tweeter

The C7-100ct represents the pinnacle of JL Audio’s automotive speaker design, crafted with precision engineering and cutting-edge technology. This high-performance component tweeter delivers exceptional high-frequency accuracy, ensuring an immersive and detailed listening experience.

Unrivaled High-Frequency Performance
Designed for active sound systems, the C7-100ct does not include passive crossover networks. Instead, JL Audio recommends using a high-quality tuning DSP, such as the TwK™ 88 or D8, along with a dedicated amplifier channel for each C7 driver. With precise tuning of equalization, delay, and crossover filters, the C7-100ct achieves optimal in-vehicle audio performance.

Advanced Engineering and Design

Premium Dome Diaphragm
Corundum ceramic-coated aluminum alloy diaphragm – Ultra-rigid, lightweight, and environmentally stable
True piston operation at high frequencies – Delivers exceptional detail without added moving mass

Optimized Suspension System
Treated silk S-roll surround – Ensures smooth, controlled movement of the diaphragm
Ferrofluid in the magnetic gap – Enhances damping while maintaining unrestricted excursion

High-Precision Motor Design
Neodymium magnet with U-Yoke motor topology – Provides a high-density magnetic circuit
Under-hung voice coil – Copper-clad aluminum wire on an aluminum former for reduced distortion
Advanced FEA-optimized magnetics – Minimizes even-order distortion, IMD, and AMD, resulting in superior clarity

Acoustic Housing and Directivity Control
Tweeter housing shape enhances sensitivity – Boosts response in a specific frequency range
Improved directivity control – Ensures consistent, balanced sound dispersion

Design Bandwidth and Frequency Response
With 48 dB/octave filters: 3,000 Hz - 30,000 Hz
With 24 dB/octave filters: 4,000 Hz - 30,000 Hz
With 12 dB/octave filters: 5,000 Hz - 30,000 Hz

Each C7 tweeter undergoes rigorous performance verification, and owners can register their unit online to receive a copy of its specific Acoustical Test Report.

Sold individually.

Specifications

General Specifications
Continuous Power Handling (RMS) 100 W
Peak Music Power 200 W
Recommended Amplifier Power (RMS) 50 - 150 W / Ch.
Nominal Impedance 4 Ω
Frequency Response 3 kHz - 30 KHz ± 3 dB

Parameters
Voice Coil Resistance (Re) 3.20 Ω
Free Air Resonance (Fs) 1450 Hz
Reference Efficiency (no) 0.267%
Efficiency 86.5 dB @ 1W / 1m
92.5 dB @ 1W / 0.5m
Sensitivity 89.5 dB @ 2.83V / 1m

Tweeter Physical Specifications
Flush Mount Fixture Diameter (A1) 2.13 in / 54 mm
Surface Mount Fixture Diameter (A2) 2.16 in / 55 mm
Flush Mount Mounting Hole Diameter (B) 1.88 in / 48 mm
Flush Mount Mounting Depth (C) 0.73 in / 19 mm
Flush Mount Tweeter Frontal Protrusion (D1) 0.33 in / 8 mm
Surface Mount Tweeter Frontal Protrusion (D2) 1.06 in / 27 mm

Alpine R2-S65 R-Series 6.5" Next Gen Speakers with Installation

The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.

Hi-Res Certified
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.

Glass-Fiber Reinforced Cone
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.

Upgraded Mid-Bass
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.

HAMR Surround
Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

Pro vs Standard
The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.

Specifications
Maximum Peak Power: 300 Watts
Maximum RMS Power: 100 Watts
Nominal Impedance: 4 Ohm
Frequency Response: 65Hz-40kHz
Sensitivity: 88dB SPL (1W @ 1m)
Woofer Mounting Depth: 6,3cm
Woofer Cutout Diameter: 13,5cm

What's in the Box (x2) 6.5” Mid-Bass Speakers w/1" Coaxial Tweeters
(x2) Grilles
Mounting Hardware (x8 Screws, x8 Speed Clips)
Alpine Registration Card
Alpine Limited Warranty Sheet
Owner’s Manual
Installation Guide

Infinity REF607F Reference Series 6.5" Coaxial Speaker Pair

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations.

Features

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

What's in the box
1 pair of coaxial speakers
8 large mounting screws
8 speed clips
8 small mounting screws
1 pair of adapter rings
Foam mounting tape
Owner’s manual

JL Audio C1-650

6.5" 2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Aluminum Dome Tweeter

Overview

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility. C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-650 is a proprietary, stamped, steel 6.50-inch (165 mm) frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control the voice coil's motion. Tinsel leads are carefully routed and attached to the spiders to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers. Equipped with a true, edge-driven, aluminum dome tweeter, C1 speakers stand further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling. When it comes to value, C1 is the real deal! Sold as a pair. Grilles not available.

Specifications

General Specifications

• Continuous Power Handling (RMS) 50 W
• Peak Music Power 225 W
• Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
• System Efficiency 91.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 59 Hz - 22 KHz ± 3 dB

Woofer Physical Specifications

• Frame Outer Diameter* (A) 6.5 in / 165 mm
• Grille Tray Outer Diameter (B) 6.84 in / 174 mm
• Motor Outer Diameter (C) 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion (D) N/A
• Frontal Grille Protrusion** (E) 0.85 in / 22 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.44 in / 62 mm

*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface Tweeter Physical Specifications

• Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
• Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
• Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
• Flush Mount Mounting Depth (C) 0.76 in / 19 mm
• Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
• Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm

Crossover Physical Specifications

• Width (W) 1.96 in / 50 mm
• Height (H) 0.90 in / 23 mm
• Depth (D) 1.34 in / 34 mm

Technology

Dynamic Motor Analysis - DMA Optimized Motor
Summary:
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers. DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker. DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior:

1. Linear motor force over the speaker's operational excursion range
2. Consistent motor force with both positive and negative current through the coil
3. Consistent motor force at varying applied power levels

Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems. The payoff is reduced distortion, improved transient performance and stellar sound quality. Aluminum Dome Tweeter
Summary:
Lightweight Aluminum Dome tweeters deliver sparkling high-frequency detail that extends well beyond the frequency response of typical human hearing. Detailed Information:
Compared to similar textile designs, aluminum tweeter diaphragms offer superior stiffness and high-frequency extension, with only a minor penalty in efficiency. JL Audio’s aluminum dome tweeters employ a rubber surround and ferrous fluid in the motor gap to damp the aluminum diaphragm. This additional damping reduces ringing and improves the tweeter’s smoothness of reproduction while still delivering the high-frequency energy and extension that metal domes are known for.

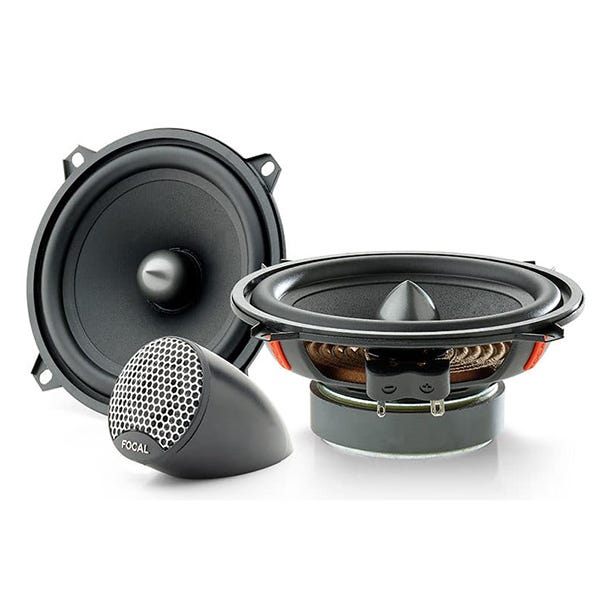

Focal Access 130 AS

5" 2-Way Component Speaker Kit The 5'' (130mm) Access 130 AS 2-way component speaker kit is very versatile. It fits perfectly into your vehicle interior and offers three different mounting options for the tweeter. You can very easily use the tweeter's 3-position level control, thanks to its separate, easy-to-fit filter.
This kit combines dynamic bass with precise treble, for prolonged listening without auditory fatigue. Focal pays extreme attention to the reliability and musicality of all its products including the Access range, which has all the brand's DNA and tradition of more than 30 years. Specifications

• tweeter TN44
• chassis 20% Fiberglass filled ABS
• max power 100W
• nominal power 50W
• sensitivity 91 dB
• frequency response 60 Hz – 20 kHz

Infinity REF697F Reference Series 6x9 Coaxial Speaker Pair

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Features

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

What's in the box
1 pair of coaxial speakers
8 mounting screws
8 speed clips
8 small mounting screws
1 pair of spacers
Foam mounting tape
Owner’s manual

Infinity Reference 9632IX

6x9 Inch Coaxial Speaker System Accurate, high performance sound.
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes – 3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers.

Features and Benefits

Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels. Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference. Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction. Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today. Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices. Technical Specifications

• Description: 6" x 9" (152mm x 230mm) coaxial car speaker
• Power Handling: 100W RMS, 300W peak
• Sensitivity (@ 2.83V): 94dB
• Frequency Response: 46Hz – 20kHz
• Impedance: 3.0 ohms

What's in the box:

• 1 pair of coaxial speakers
• 1 pair of speaker grilles
• 1 pair of spacers
• 8 mounting screws
• 8 speed clips
• Foam mounting tape
• Owner’s manual

Infinity Reference 4032CFX

4 Inch Coaxial Speaker Set Accurate, high performance sound.
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes – 3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers.

Features and Benefits

Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels. Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference. Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction. Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today. Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices. Technical Specifications

• Description: 4" (100mm) coaxial car speaker
• Power Handling: 35W RMS, 105W peak
• Sensitivity (@ 2.83V): 92dB
• Frequency Response: 75Hz – 21kHz
• Impedance: 3.0 ohms

What's in the box:

• 1 pair of coaxial speakers
• Foam mounting tape
• Owner’s manual

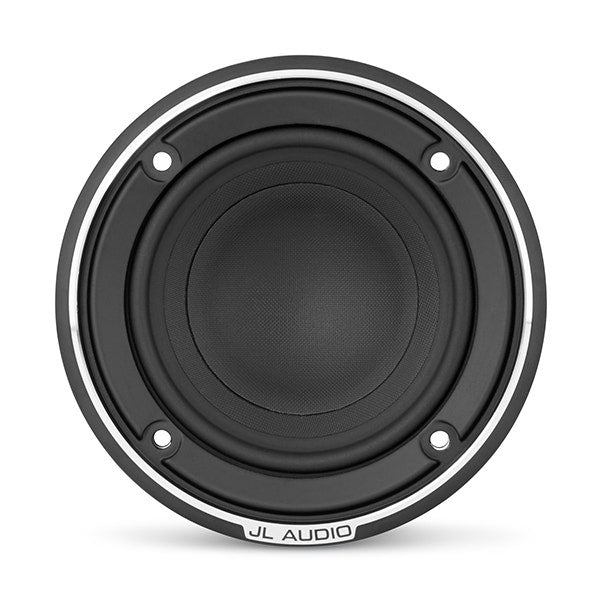

JL Audio C7-350cm 3.5" Component Midrange with Grille - Single Midrange Speaker

C7 is the pinnacle of JL Audio automotive loudspeaker design, benefiting from our most advanced development tools and a complete commitment to precision manufacturing.

The C7-350cm component midrange is designed to operate in a 3-way system, with a woofer and tweeter. Conceived and purpose-built from the ground up, it offers exceptional transient response and outstanding linearity, resulting in unsurpassed clarity and natural mid-range reproduction. Distortion and non-linearities have been minimized through critical optimization of dynamic motor and suspension behaviors.

Passive crossover networks are not included with C7 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning DSP, such as the JL Audio TwK™ 88 or D8, and a dedicated amplifier channel for each C7 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

C7-350cm Design Notes

Cone and Dust Cap
Vacuum-formed, mineral-filled polypropylene material offers excellent damping and low mass. The cone body features a gentle curvilinear profile to optimize response. A concave dust cap further improves high frequency behavior.

Suspension Design
The moving assembly is suspended and damped via a linear profile spider formed from a Nomex®/polycotton blend, and a positive-roll, rubber surround. The two combine to provide optimum damping without prematurely restricting excursion.

Motor Design
The C7-350cm employs a high-density magnetic circuit with a high-grade, neodymium magnet, and a specially machined, U-Yoke motor topology. Motor magnetics have been precisely optimized utilizing advanced FEA tools to reduce distortion and provide linear motor force throughout the driver's performance range.

A 36 mm (1.42 inch) diameter, overhung voice coil is employed, wound with copper-clad aluminum wire onto a fiberglass voice coil former. The oversized voice coil offers extended power handling capability, minimizing thermal compression and distortion at higher listening levels.

Chassis Design
A purpose-engineered cast alloy basket is employed, featuring thin spokes to maximize rear open area.

Design Bandwidth
With 48 dB/octave filters: 300 Hz - 10 kHz
With 24 dB/octave filters: 400 Hz - 10 kHz
With 12 dB/octave filters: 500 Hz - 10 kHz

Built in USA with Global Components
Sold individually, with a cast-alloy grille tray, one fine mesh steel grille insert and one spiral steel grille insert.

The performance of every C7 driver is tested and verified, then assigned a unique serial number. Register your C7 loudspeaker online to receive a copy of its specific Acoustical Test Report.

Specifications

General Specifications

• Continuous Power Handling (RMS) 100 W
• Peak Music Power 200 W
• Recommended Amplifier Power (RMS) 50 - 150 W / Ch.
• Nominal Impedance 4 Ω
• Frequency Response 300 Hz - 10 KHz ± 3 dB

Parameters

• Moving Mass (Mms) 4.009 g
• Equivalent Compliance (Vas) 0.015 cu. ft. (0.430 liters)
• Mechanical Compliance (Cms) 0.000257 m/N
• Magnetic Strength (BL) 4.66 N/A
• One Way Linear Excursion (Xmax) 1 mm
• Effective Piston Area (Sd) 5.31 sq. in. (0.003426 sq. m)
• Total Speaker “Q” (Qts) 0.541
• Mechanical “Q” (Qms) 6.454
• Reference Efficiency (no) 0.27%
• Free Air Resonance (Fs) 156.9 Hz
• Efficiency 86.5 dB @ 1W / 1m
• 92.5 dB @ 1W / 0.5m
• Sensitivity 89.5 dB @ 2.83V / 1m
• Electrical “Q” (Qes) 0.59
• Voice Coil Resistance (Re) 3.245 Ω

Midrange Physical Specifications

• Frame Outer Diameter (A) 3.45 in / 88 mm
• Bolt Hole Circle Diameter (B) 3.15 in / 80 mm
• Mounting Hole Diameter (C) 2.87 in / 73 mm
• Grille Tray Outer Diameter (D) 3.95 in / 100 mm
• Frontal Grille Protrusion (E) 0.58 in / 15 mm
• Mounting Depth (F) 1.46 in / 37 mm
• Motor Outer Diameter (G) 2.36 in / 60 mm

Technology

Dynamic Motor Analysis - DMA Optimized Motor
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass.

Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers.

DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker.

DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior:

1. Linear motor force over the speaker's operational excursion range
2. Consistent motor force with both positive and negative current through the coil
3. Consistent motor force at varying applied power levels

Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems.

The payoff is reduced distortion, improved transient performance and stellar sound quality.

Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902) JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Detailed Information:
Many speakers employ venting techniques to enhance voice coil cooling. This is typically accomplished by having big holes in the sides of the frame just below the spider attachment shelf. While it provides a modest cooling benefit, this low-velocity air-flow does not blow directly or strongly on the voice coil.

Our patented design improves upon this cooling technique in a number of ways. By elevating the frame above the top-plate of the motor (via stand-offs integrated into the bottom of the frame) a narrow, high-velocity air-path is created between the bottom surface of the frame and the top surface of the top-plate. This air path leads directly to the voice coil and then turns upward into the spider air cavity. By utilizing the pumping action of the spider through this focused air path, a large volume of cool air hits the coil windings directly.

Another important benefit is that the upper surface of the top-plate (one of the speaker's hottest parts) is directly exposed to cooling air flow, whereas on a conventional design it is isolated from the air flow by the lower flange of the frame. The elevated frame technology greatly increases thermal power handling, reduces compression effects and does so without any additional parts.

Infinity REF407F Reference Series 4" Coaxial Speaker Pair

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Features

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

What's in the box
1 pair of coaxial speakers
Foam mounting tape
Owner’s manual

JL Audio Evolution C3-650 6.5" Component Speaker System

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures. C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. General Specifications

• Continuous Power Handling (RMS) 75 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 25 - 150 W
• System Efficiency 90.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 48 Hz - 25 KHz ± 3 dB

Woofer Physical Specifications

• Frame Outer Diameter (A) 6.50 in / 165 mm
• Grille Tray Outer Diameter (B) 6.74 in / 171 mm
• Rear Cover Outer Diameter (C) 4.08 in / 104 mm
• Frontal Coaxial Tweeter Protrusion* (D) 0.75 in / 19 mm
• Frontal Grille Protrusion** (E) 1.03 in / 26 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.55 in / 65 mm

*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface Tweeter Physical Specifications

• Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
• Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
• Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
• Flush Mount Fixture Mounting Depth (C) 0.71 in / 18 mm
• Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
• Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm

Crossover Physical Specifications

• Width (W) 3.36 in / 85 mm
• Height (H) 1.44 in / 37 mm
• Depth (D) 4.72 in / 120 mm

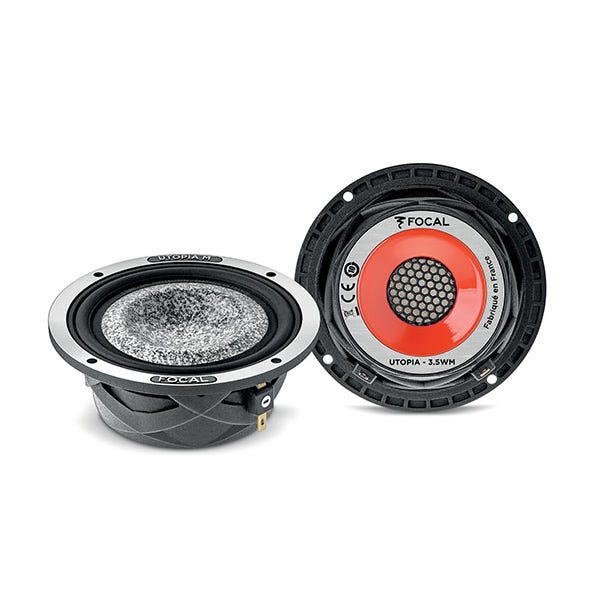

Focal 3.5WM

Utopia M 3.5 inch Midrange Speaker Driver Each The design of this ultra-compact midrange speaker driver was made possible thanks to the exclusive use of our new ‘M'-profile 'W' sandwich cone, combined, amongst other things, with our TMD® surround and a red neodymium motor, Focal's signature. Our ears being particularly sensitive around 4kHz, this 3.5” midrange will surprise you with its extreme softness and striking realism.

The Best of Focal Technologies

'M'-profile 'W' sandwich cone
The new, patented, ‘M'-profile cone is the result of many years of research and our expertise in materials and their geometry. The innovative ‘M’-profile, made from a single piece, means it is incredibly rigid and perfectly combines the three criteria essential for creating an “ideal” speaker driver: rigidity, lightness and damping. The result is an extremely linear frequency response, a low distortion rate and better sound dispersion. Upon listening, this cone delivers striking realism and level of detail, that transports you into the heart of music. TMD Surround
Originally developed for the Sopra line of high-fidelity loudspeakers, our TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. The speaker driver takes advantage of this patented technology by spreading better defined and very realistic midranges’ frequencies. Progressive Spider
The progressive spider used on all our Utopia drivers is built around a progressive section that reproduces all the impact of the bass whilst optimising the linearity, precision and dynamics of the sound. An ‘À LA CARTE’ Concept
Do you dream about building your own, bespoke, audio system, by choosing each speaker driver based on your vehicle and your requirements? With our new Utopia M line, this dream has now come true, with only one limit: your creativity. Made In France and Unique Design
Utopia M range is entirely designed, developed and manufactured in France, in our workshops in Saint-Etienne. A unique and internationally recognized expertise for nearly forty years. In addition to the new ‘M’-profile ‘W’ sandwich cone, our designers went to the extreme in developing a disruptive design. The design of the Utopia M chassis is a subtle mix of tradition, performance and elegance “à la française”.

Infinity REF687F Reference Series 6x8 Coaxial Speaker Pair

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Features

• The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
• The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
• Harman’s patented (US patent #7,548,631) Plus One cones provide more overall speaker-cone area than other cones in its class - the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
• Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

What's in the box
1 pair of coaxial speakers
Foam mounting tape
Owner’s manual

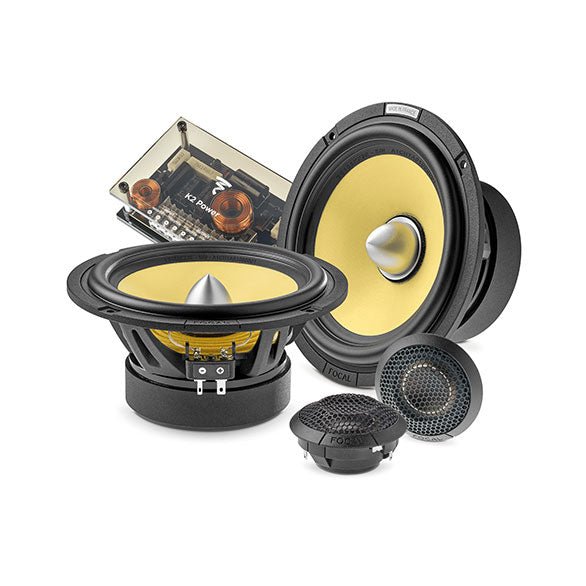

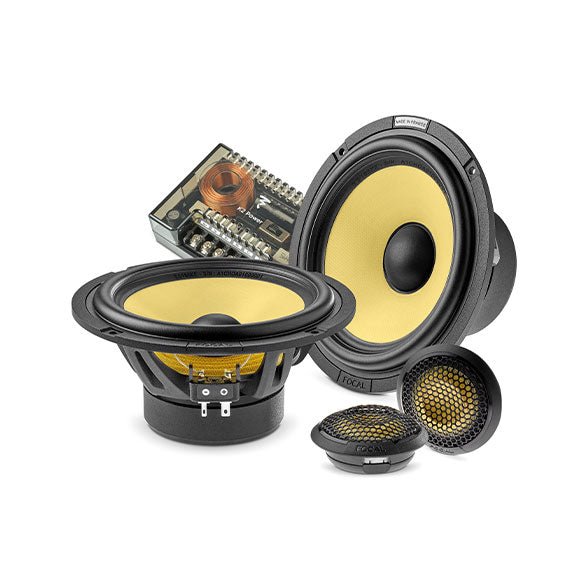

Focal ES 165 KE K2 Series 6.5" Component Speakers

Composed of two 6 1/2” (165mm) woofers and two TKME tweeters, the ES 165 KE kit is a compact, easy-to-install system. The speaker drivers’ K2 cones diffuse super dynamic, razor-sharp sound. Born from Focal’s expertise in all things acoustic, they combine the assets of lightness, rigidity and damping, all prerequisites of a good speaker driver.

The inverted dome TKME tweeters also feature an aramid fibre dome. Their exclusive ‘M’-shaped profile helps to improve control of cone deformation and to reproduce the high frequencies smoothly and accurately. The tweeters can be mounted in different ways: in the factory locations, flush or on angled brackets, for all-encompassing installation options.

The kit is supplied with aluminium grilles.

K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.

TMD® Surround
The speaker drivers benefit from TMD (Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.

TKME Tweeter
The ‘M’-profile TKME tweeter extends the frequency response to 22 kHz with an even greater reduction of distortion, for smooth and precise diffusion in the high treble. Coupled with a ‘push-pull’ motor, based on IAL2 technology, it achieves very low resonance frequencies for perfect harmonic balance.

More Linearity and Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.

Increased SPL
The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.

Optimised Crossovers
All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.

Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.

Specifications - Woofer 6.5"
Nominal power: 100W
Maximum power: 200W
Sensitivity (2.83V/1m): 90.8dB
Cone: K2 Sandwich
Nom. impedance: 4Ω
Surround: Butyl
DC resistance: 3.2Ω
VC diameter: 32mm 1 1/4"
Former: Kapton
Layers: 2
Wire: CCAW
Magnet (dxh): 90x20mm 31/2x3/4"
Net weight: 1350g 3 lbs

Parameters
Rdc: 3.2Ω
Fs: 64Hz
Mms 14.5g
Cms 0.41mm/N
Vas 10l
Qts 0.62
Qes 0.69
Qms 5.7
Bxl 5.2 N/A
Sd 128.6cm2
SPL 89dB
Xmax 4.5mm

Focal TBM

Utopia M Tweeter Pair The culmination of the very best of our latest innovations, our Beryllium tweeter combines for the first time ever our ‘M’-profile dome and our patented TMD® surround. With this new combination, our engineering teams have successfully extended the frequency response and obtained better dispersion. We also get a treble that is unrivalled in its precision, of great finesse, and an incredible soundstage's width.

The best of Focal technologies

"M" Profile Beryllium Inverted Dome Tweeter
Only metal capable of scratching glass because of its extreme rigidity, Beryllium is the perfect material for a tweeter dome. Two years of research and development led to a world first with the creation of a pure Beryllium inverted dome capable of covering over five octaves. It is an exclusive Focal technology, unique worldwide, that we have now combined with our latest innovation, the ‘M’ profile, which enables optimum dispersion and the use of a large, 1” (25mm) voice coil for improved power handling. TMD Surround
Originally developed for the Sopra line of high-fidelity loudspeakers, our TMD® (Tuned Mass Damper) surround has a unique profile, designed to better control the effects of resonance and to drastically reduce the distortion associated with deformations of the cone. Made In France
Utopia M range is entirely designed, developed and manufactured in France, in our workshops in Saint-Etienne. A unique and internationally recognized expertise for nearly forty years.
