JL Audio M3-10IB-S-Gw-4 10" Marine Subwoofer Gloss White Sport Grille - 4 Ohm

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels. Purpose-engineered and built for real marine duty, the M3 infinite-baffle subwoofers are designed to operate without a dedicated enclosure and are targeted towards moderate power applications. The M3-10 is best used with amplifier power in the 50W - 175W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead. Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Specifications

General Specifications
Continuous Power Handling (RMS): 175 W
Nominal Impedance (Znom): 4 Ω Physical Specifications
Nominal Diameter: 10.0 in / 250 mm
Overall Diameter (A): 10.75 in / 273 mm
Mounting Hole Diameter (B): 8.875 in / 225 mm
Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
Motor Outer Diameter (D): 5.29 in / 134 mm
Mounting Depth (E): 5.12 in / 130 mm
Driver Displacement: 0.04 cu ft / 1.13 L
Net Weight: 6.5 lb / 2.94 kg Parameters
Free Air Resonance (Fs): 41.84 Hz
Electrical “Q” (Qes): 0.806
Mechanical “Q” (Qms): 11.751
Total Speaker “Q” (Qts): 0.754
Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
Reference Efficiency (no): N/A
Efficiency (1 W / 1 m)**: 87.23 dB SPL
Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
DC Resistance (Re): 3.957 Ω * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”. Enclosure Specifications
Infinite Baffle Use: Yes (preferred)
Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L

JL Audio M3 650X S GW I 6.5 Inch Marine Speakers with RGB LED Lighting

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models. The M3-650X 6.5-inch coaxial speaker is designed around the standard marine 6.5-inch speaker format and features a wide mounting flange with a six hole mounting pattern. The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor. The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance. A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics. Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended. Although M3-650X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.

Summary
The design of marine products requires extensive materials testing to achieve reliability and longevity. Detailed Information
Building serious marine products requires a real commitment to environmental testing and materials specification. To this end, JL Audio has invested in Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments). This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years.

Materials Used
Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically Formulated with UV inhibitors for marine duty.
Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
Gold-plated, marine-grade brass connection terminals
Marine-grade stainless steel mounting hardware is included.

Specifications

General Specifications
Continuous Power Handling (RMS): 60 W
Peak Music Power: 225 W
Recommended Amplifier Power (RMS): 20 - 125 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 55 Hz - 25 KHz ± 3 dB Coaxial Physical Specifications
Frame Outer Diameter (A): 6.90 in / 175 mm
Bolt Hole Circle Diameter (B): 6.125 in / 155.5 mm
Motor Outer Diameter (C): 3.85 in / 98 mm
Frontal Grille Protrusion* (D): 0.973 in / 25 mm
Mounting Hole Diameter (E): 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (F): 2.74 in / 69.5 m
*Frontal grille protrusion measured from mounting surface

JL Audio M6-650X-S-GwGw-i 6.5" Marine Coaxial Speakers with LED Lighting - Gloss White Sport Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment, with the added visual impact of JL Audio’s Transflective™ RGB LED lighting. A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor. A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure. Although M6-650-X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Sold as a pair.

General Specifications

Continuous Power Handling (RMS): 75 W
Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 55 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter (A): 6.90 in / 175 mm
Bolt Hole Circle Diameter (B): 6.13 in / 156 mm
Frontal Grille Protrusion* (C): 1.02 in. / 26 mm
Mounting Hole Diameter (D): 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (E): 3.00 in. / 76 mm

*Frontal grille protrusion measured from mounting surface

Dynamic Motor Analysis - DMA Optimized Motor

Summary:
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers. DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker. DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior: Linear motor force over the speaker's operational excursion range
Consistent motor force with both positive and negative current through the coil
: Consistent motor force at varying applied power levels Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems. The payoff is reduced distortion, improved transient performance and stellar sound quality.

Marine Materials / Testing

Summary:
The design of marine products requires extensive materials testing to achieve reliability and longevity. Detailed Information:
Building serious marine products requires a real commitment to environmental testing and materials specification. To this end, JL Audio has invested in Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments). This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years.

JL Audio M650-CCX-CG-WH 6.5" Marine Coaxial Speakers - White

Overview

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment. A DMA-optimized, long excursion woofer design and excellent power handling ensures your music will come through loud and clear at speed, or at anchor. A 0.8-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure. Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials. Sold as a pair.

Specifications

General Specifications
Continuous Power Handling (RMS): 60 W
Recommended Amplifier Power (RMS): 20 - 120 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ohm
System Frequency Response: 55 Hz - 25 KHz ± 3 dB Coaxial Physical Specifications
Frame Outer Diameter (A): 6.90 in / 175 mm
Bolt Hole Circle Diameter (B): 6.125 in / 155.5 mm
Motor Outer Diameter (C): 3.85 in / 98 mm
Frontal Grille Protrusion* (D): 0.973 in / 25 mm
Mounting Hole Diameter (E): 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (F): 2.74 in / 69.5 m
*Frontal grille protrusion measured from mounting surface

JL Audio M3-770X-S-Gw-i 7.7" Marine Coaxial Speakers RGB LED Lighting White Sport Grilles

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models. The oversized 7.7-inch design of the M3-770X results in increased efficiency (more output for a given amount of power). This gives them the ability to play louder and cleaner at high volumes than smaller speakers. The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance. A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics. Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended. Although M3-770X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel. Sold as a pair.

General Specifications

Continuous Power Handling (RMS): 70 W
Recommended Amplifier Power (RMS): 20 - 140 W / Ch.
System Efficiency: 90.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 45 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter (A): 7.70 in / 196 mm
Bolt Hole Circle Diameter (B): 6.92 in / 176 mm
Frontal Grille Protrusion* (C): 1.10 in / 28 mm
Mounting Hole Diameter (D): 6.25 in / 159 mm
Mounting Depth (E): 3.17 in / 81 mm

*Frontal grille protrusion measured from mounting surface

Dynamic Motor Analysis - DMA Optimized Motor

Summary:
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers. DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker. DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior: Linear motor force over the speaker's operational excursion range
Consistent motor force with both positive and negative current through the coil
: Consistent motor force at varying applied power levels Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems. The payoff is reduced distortion, improved transient performance and stellar sound quality.

Marine Materials / Testing

Summary:
The design of marine products requires extensive materials testing to achieve reliability and longevity. Detailed Information:
Building serious marine products requires a real commitment to environmental testing and materials specification. To this end, JL Audio has invested in Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments). This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years.

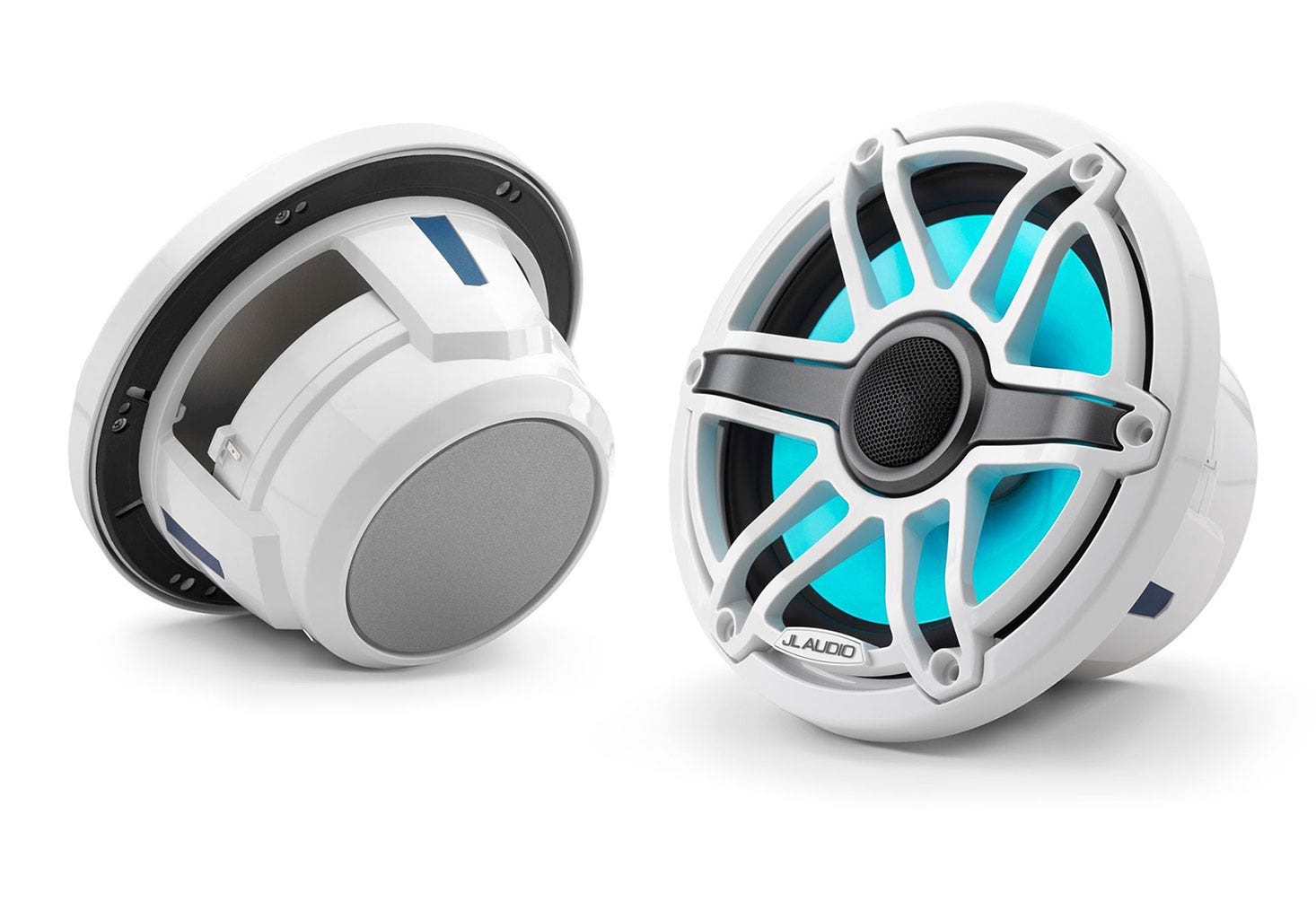

JL Audio M6-770X-S-GwGw-i 7.7" Marine Coaxial Speakers with LED Lighting - Gloss White Sport Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment, with the added visual impact of JL Audio’s Transflective™ RGB LED lighting. The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed. The woofer element is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance. A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels. A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure. Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Sold as a pair.

General Specifications

Continuous Power Handling (RMS): 100 W
Recommended Amplifier Power (RMS): 40 - 200 W / Ch.
System Efficiency: 91.0 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 45 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter (A): 7.70 in / 196 mm
Bolt Hole Circle Diameter (B): 6.92 in / 176 mm
Frontal Grille Protrusion* (C): 1.08 in. / 27 mm
Mounting Hole Diameter (D): 6.25 in / 159 mm
Mounting Depth (E): 3.32 in. / 84 mm *Frontal grille protrusion measured from mounting surface

Dynamic Motor Analysis - DMA Optimized Motor

Summary:
JL Audio's proprietary Dynamic Motor Analysis system is a powerful suite of FEA-based modeling systems, first developed by JL Audio in 1997 and refined over the years to scientifically address the issue of speaker motor linearity. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers. DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker. DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior: Linear motor force over the speaker's operational excursion range
Consistent motor force with both positive and negative current through the coil
Consistent motor force at varying applied power levels Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems. The payoff is reduced distortion, improved transient performance and stellar sound quality.

Marine Materials / Testing

Summary:
The design of marine products requires extensive materials testing to achieve reliability and longevity. Detailed Information:
Building serious marine products requires a real commitment to environmental testing and materials specification. To this end, JL Audio has invested in Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments). This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years.

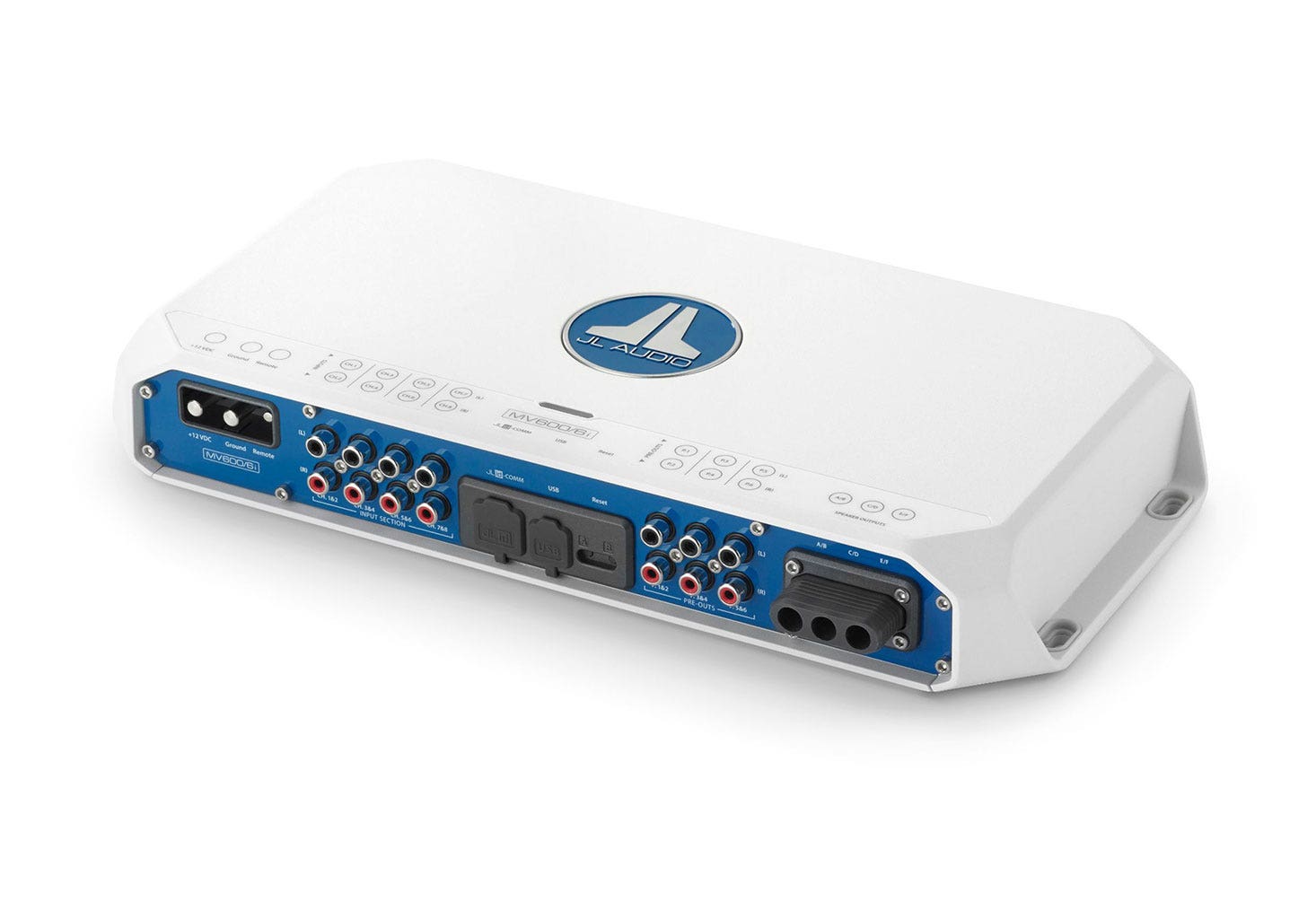

JL Audio MV600/6i 6 Channel Marine Amplifier with Integrated DSP

Engineered to deliver reference-grade audio performance in marine environments, every MVi amplifier unites our cutting-edge NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. Outfitted with our second-generation NexD2™ technology, the MV400/4i produces up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, generating up to 200 W x 3. The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. Housed in a compact, cast alloy chassis with marine-grade powder coat finish, the MV600/6i is outfitted with corrosion-resistant hardware and connectors. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Speaker Output Harnesses (3), 6 ft A/B USB Cable

Specifications

Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 75 W RMS x 6
@ 2 Ω: 100 W RMS x 6
Bridged @ 4Ω: 200 W RMS x 3 Rated Continuous (RMS) Power @ 12.5 V
@ 4 Ω: 60 W RMS x 6
@ 2 Ω: 90 W RMS x 6
Bridged @ 4Ω: 180 W RMS x 3 General Specifications
Frequency Response: 12 Hz - 24 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω: >100 / 50 Hz
Damping Factor @ 2 Ω: >50 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 250 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
IP Rating: IPX2 (when mounted vertically with connections pointed downward) Physical Specifications
Height (H): 2.05 in / 52 mm
Width (W): 13.96 in / 355 mm
Depth (D): 6.93 in / 176 mm
Net Weight: 5.6 lb / 2.54 kg
