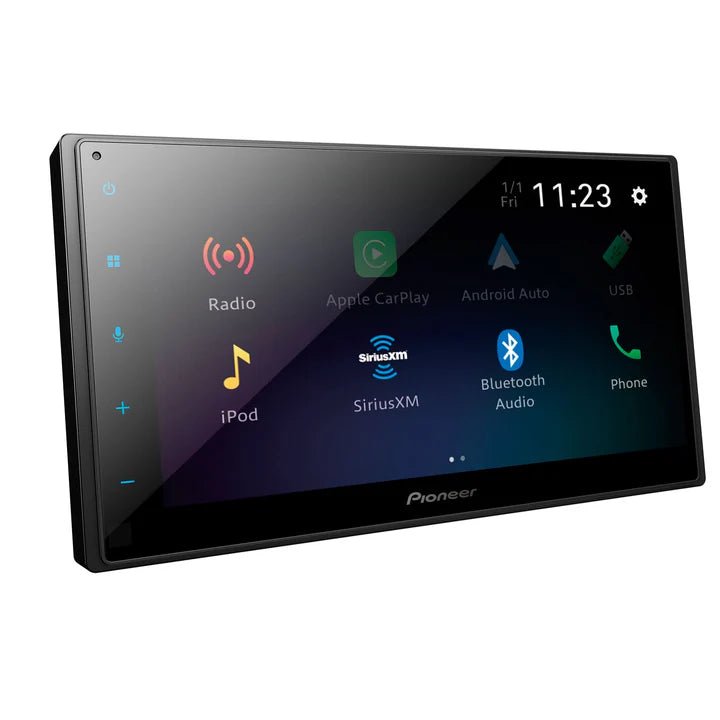

Pioneer DMH-1800NEX 6.8" Media Receiver
The DMH-1800NEX offers connectivity solutions designed for today’s smartphone-driven lifestyle. This 6.8” receiver features a capacitive touchscreen display and includes built-in Bluetooth®, Android Auto™ (wired), wired Apple CarPlay® (wired), SiriusXM-Ready™, and much more. The DMH-1800NEX also has a 13-band graphic equalizer and is equipped with a backup camera input.
6.8 Inch WVGA Touchscreen (Capacitive)
Upgrade your ride with a capacitive WVGA touchscreen The Display with built-in LED backlight, color customization, and illumination timer, dimmer setting, and brightness control.

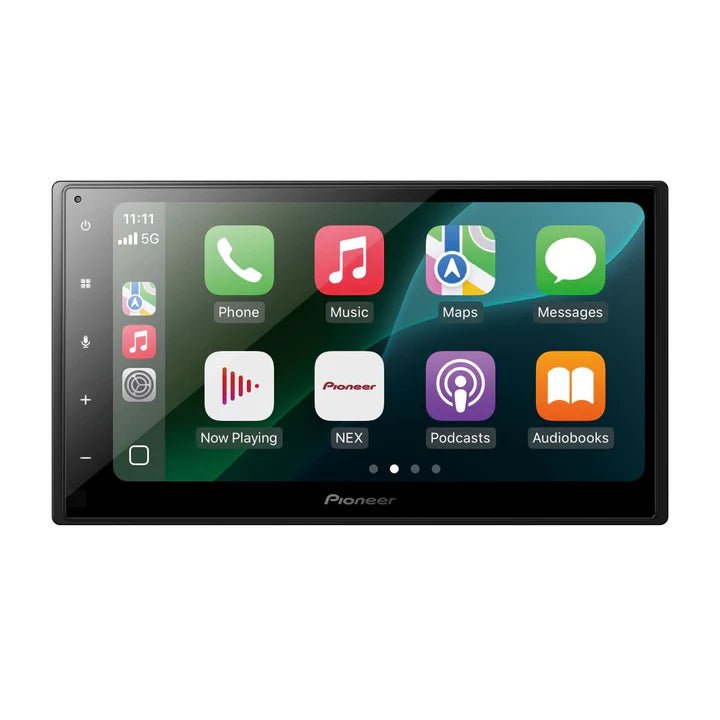

Apple CarPlay (Wired)
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.

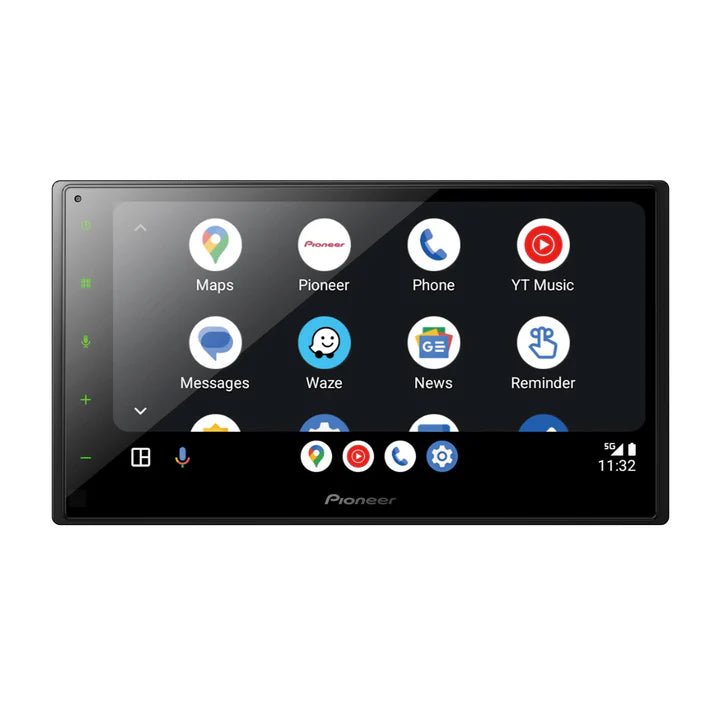

Android Auto™ (Wired)
This receiver features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all Android smartphones.
Bluetooth
This receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Siri® Eyes Free - touchscreen
Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers, helping you keep your eyes on the road and your hands on the wheel. (For select iPhones.)
SiriusXM Ready
Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.
Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.
Wired Remote Input
This receiver integrates an input specifically designed to connect a third-party interface (optional) which will allow you to keep the key functions from the steering wheel control buttons of your vehicle. (if applicable)
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Audio Equalizer
The 13-band equalizer allows for detailed adjustments to your acoustic settings. This lets you tailor the equalization to match your car's interior acoustics and speaker characteristics as desired. Multiple EQ presets ensure that even users with basic acoustic knowledge can learn and enjoy the benefits of using an equalizer.
Specifications
Product Performance
Continuous Power Output: 22 W x 4-Channel
Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
Max Power Output: 50 W x 4-ch 4 ohm
RCA Preamp Outputs: 6-ch
RCA Preout Voltage: 2V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
General
Detachable Face Security: Fixed
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Remote Control: Included
Steering Wheel Control Ready (Adapter Sold Separately): Yes
Display
Back Light: LED
Brightness Control: Yes
Color Customization: 5 key colors
Device (Non-DIN/Modular Unit): 2-DIN
Dimmer: Automatic with vehicle illumination, Manual
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8"/16:9
Touch Screen: Capacitive
Bluetooth
Advanced Audio Distribution Profile (A2DP): Yes
AVRCP: 1.6
Built-in Bluetooth®: Yes
Hands-Free: Yes
Microphone Included: Included
Phone Registation: 3-phone
Secure Simple Pairing (SSP): Yes
Sound Retriever Air: Mode 1/Mode 2/Off
Tuner
Best Station Memory: Yes
Local Seek tuning: Yes
Presets: 18 FM 12 AM
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes
Intergration
Android Auto™: Wired USB Connection
Apple® CarPlay: Wired USB Connection
Mirroring: USB-Android Phone Only
Mobile Operating System: Android,Apple iOS
Pandora®: With Apple CarPlay or Android Auto
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: With Apple CarPlay or Android Auto
Voice Control: Yes
Digital Media Playback
Audio Playback via USB: MP3 Audio Playback,WMA Audio Playback,AAC Audio Playback,WAV Audio Playback (Hi-Res),FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB: .avi,.mpg/mpeg,.mp4,.3gp,.mkv,.mov,.flv,.wmv/.asf,.m4v,.ts,.m2ts,.mts
Image Display Via USB: BMP,JPEG,PNG
Audio
Audio Bass Boost: Yes
Balance: Yes
Built-in Amplifier: MOSFET 50 W x 4
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Easy EQ (EEQ) Preset Equalizer: Yes
Loudness: High/Mid/Low/Off
Speaker Output: 4-ch
Subwoofer Control: Yes
Expandibility
Audio Video Inputs: Input 1 - Backup Camera Dedicated,Input 2 - AUX (Minijack)
Firmware upgradability: Yes
Parking Assist Lines: Yes
RCA-Video-Output: Yes
USB: Single Rear Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone®: 5s and newer
