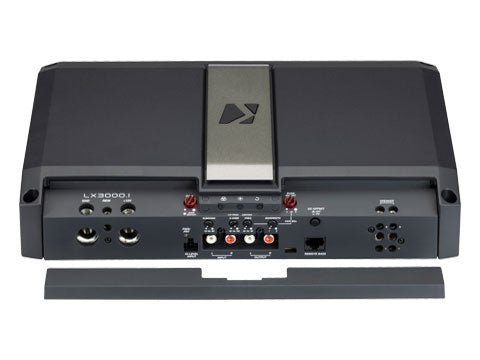

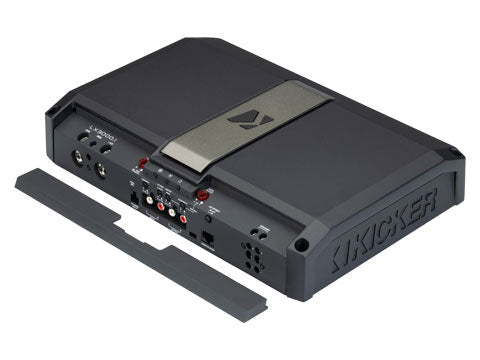

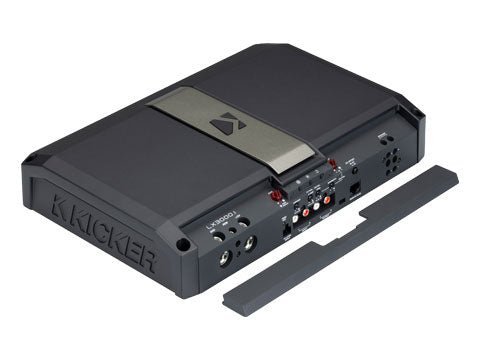

Kicker 51LX30001 Subwoofer Amplifier

Kicker 51LX30001 Subwoofer Amplifier

The KICKER LX-Series is a perfect marriage of SQL design and high-powered output, utilizing feedback from the industry to deliver the most requested features while maintaining the highest performance possible. All monoblock amplifiers come with a robust remote level control (LXRC) featuring SHOCwave2.0™.

The LX-Series represents KICKER’s high-power premium amplifier line designed in-house from the ground up. Precision control, next-level flexibility, designed for performance, built to last.

Features

• Monitor and adjust with the included LXRC Dash Remote
• Class-D design for lower current draw, longer playing times, and lower operating temperatures
• Gain-match LEDs show you perfect gain setting
• KickEQ+™ parametric bass boost 0–6dB
• Customize the appearance with reversible center panel and choice of 11 RGB LED accent colors
• Equipped with FIT+™ technology, accepting low- and high-level signals up to 40V, with differential inputs designed to eliminate unwanted noise for crystal-clear sound
• LX features choice of turn-on modes and comprehensive protections for thermal, circuit, and voltage stability, ensuring reliable performance
• LX Remote Control (LXRC) with RGB LED indicators.

Comes with the LX REMOTE CONTROL (LXRC)

• Dynamic fingertip dash remote of bass level adjustment
• Features SHOCwave2.0™ (Sub-Harmonic Octave Creation), KICKER’s 2nd-gen digital bass restoration algorithm that recovers lost, low-bass frequencies vital to your music selections
• Displays battery voltage in fuel-gauge-style readout
• Control of its RGB LED brightness
• Output clipping indicator to prevent distortion and protect your system
• Cable Length – 19.75 feet (6m) RJ45 cable

Specifications
LX 3000.1 white paper: 51LX30001 Whitepaper PDF
RMS Power [Watts Channel] @ 14.4V:
   1Ω mono: 3000W
   2Ω mono: 2000W
   4Ω mono: 1100W
Dynamic Power [Watts]: 3800
Frequency Response [Hz]: 10–160, +0/–1dB
Signal-to-Noise Ratio (a-weighted, re: rated power): >95dB
Signal-to-Noise Ratio (ref: 1W output): >75dB
Dimensions [in]: 2 3/8 H x 8 7/16 W x 12 5/8 L
Input Sensitivity:
   High level 1V–40V
   Low level 125mV–5V
Variable Electronic Crossover:
   LP; 24dB/octave Linkwitz-Riley
   variable 40–160Hz
Variable Subsonic Filter:
   24dB/octave Linkwitz-Riley
   variable hi-pass @ 10–80Hz
KickEQ+™ Parametric Bass Boost:
   0–6dB, variable center 20–80Hz,
   variable bandwidth 1–5
