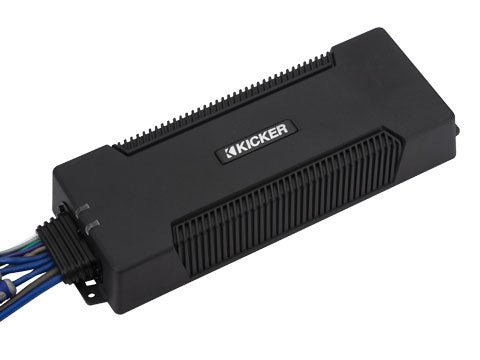

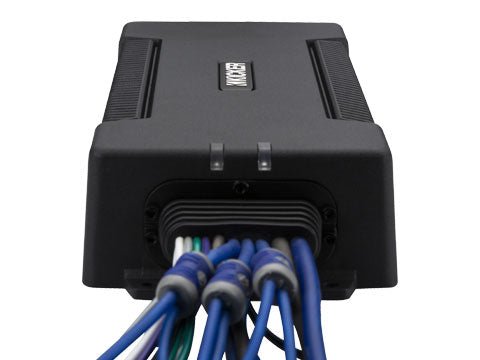

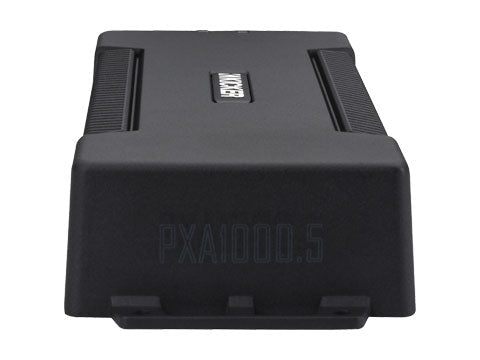

Kicker 48PXA1000.5 Marine Subwoofer Amplifier

Kicker 48PXA1000.5 Marine Subwoofer Amplifier

Completely re-engineered, the PXA1000.5 is a single-amp solution to an entire system! It supplies big full-range power, in a compact, waterproof design for the trickiest installs.

Features

• Waterproof amplifier design with IP66 and IP67 certifications
• Ideal for UTVs, off-road vehicles, hot rods or space-challenged vehicles
• High-efficiency Class-D technology
• Huge full-range power from a small footprint – rated at 1400 watts Dynamic Power!**
• Includes subwoofer channel stable at one-Ohm
• Dual turn-on modes (choice of DC offset or 12v trigger)
• Includes inline power and ground couplers that need no soldering or crimping
• Stainless-steel mounting hardware included

Specifications
Power (watts/ch), 2 Ohm Stereo: 150 x 4
Power (watts/ch), 4 Ohm Stereo: 100 x 4
Power (watts/ch), 1 Ohm Mono: 600 x 1 (sub ch)
Power (watts/ch), 2 Ohm Mono: 500 x 1 (sub ch)
Power (watts/ch), 4 Ohm Bridged Mono / 4 Ohm Mono (Sub): 300 x 2 (amp 1 and 2);300 x 1 (sub ch)
**Dynamic Power (watts): 1400
Frequency Response (Hz, +0/-3dB): (FR) 10-20k; (sub) 25-200
Crossovers: 24dB/octave hi-pass 80/120Hz (amp1 and amp2); lo-pass 60/80/100/120Hz (sub only)
Subsonic – 25Hz, 24dB/octave (sub only)
Bass Boost: selectable 0/+6dB, centered at 40Hz (sub channel only)
Dimensions (in): 4-1/2 W x 1-15/16 H x 12-7/8 L
CXARC Remote capable (sold separately): Yes (sub channel only)

What's in the Box
Waterproof IP66/IP67 power sports amplifier
2 DC power couplers
Stainless-steel mounting hardware
Customer information Card

*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision® analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
