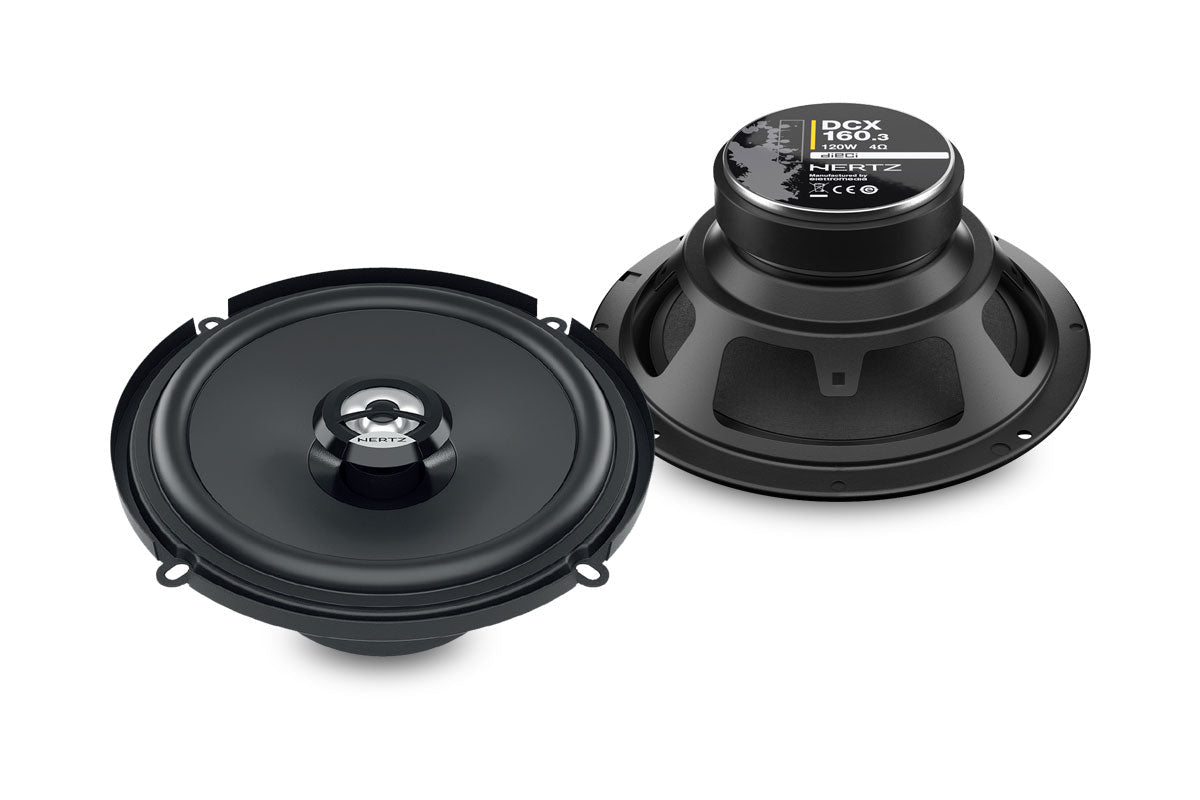

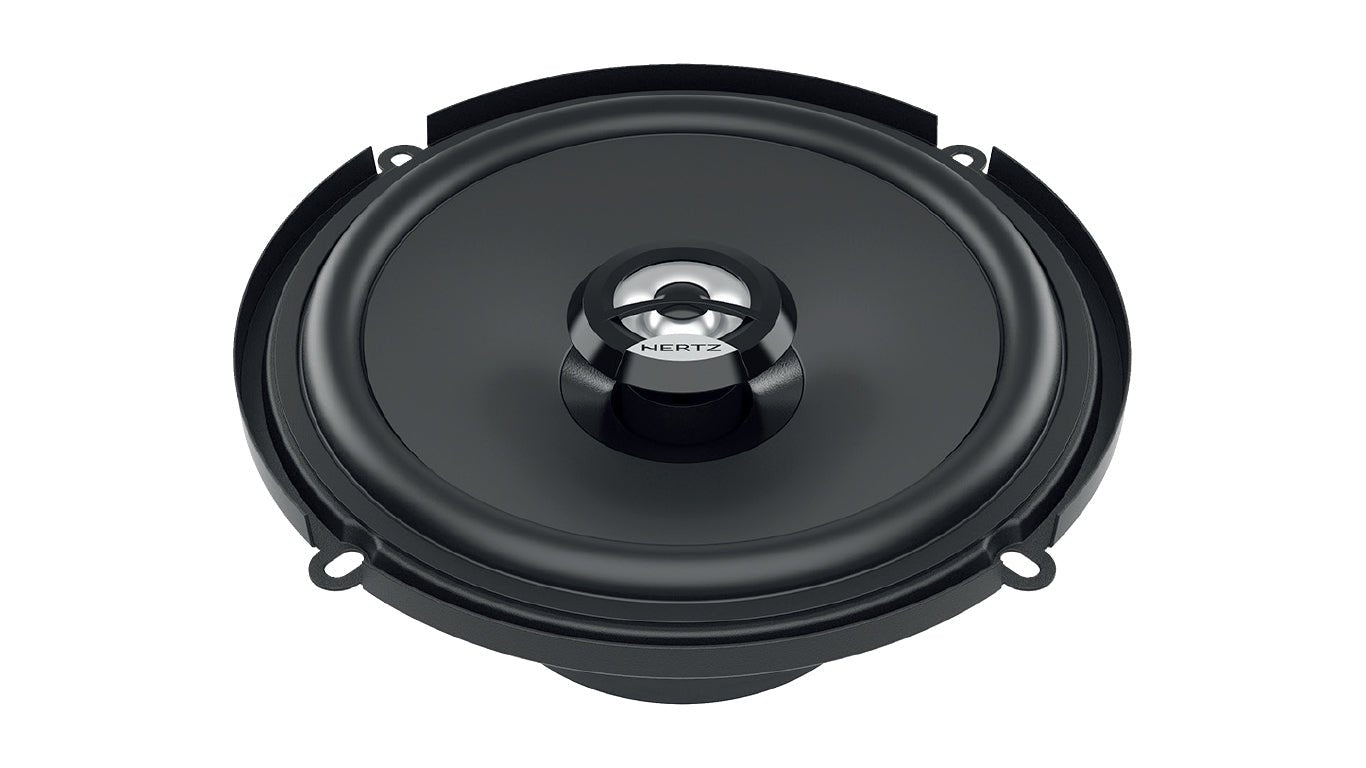

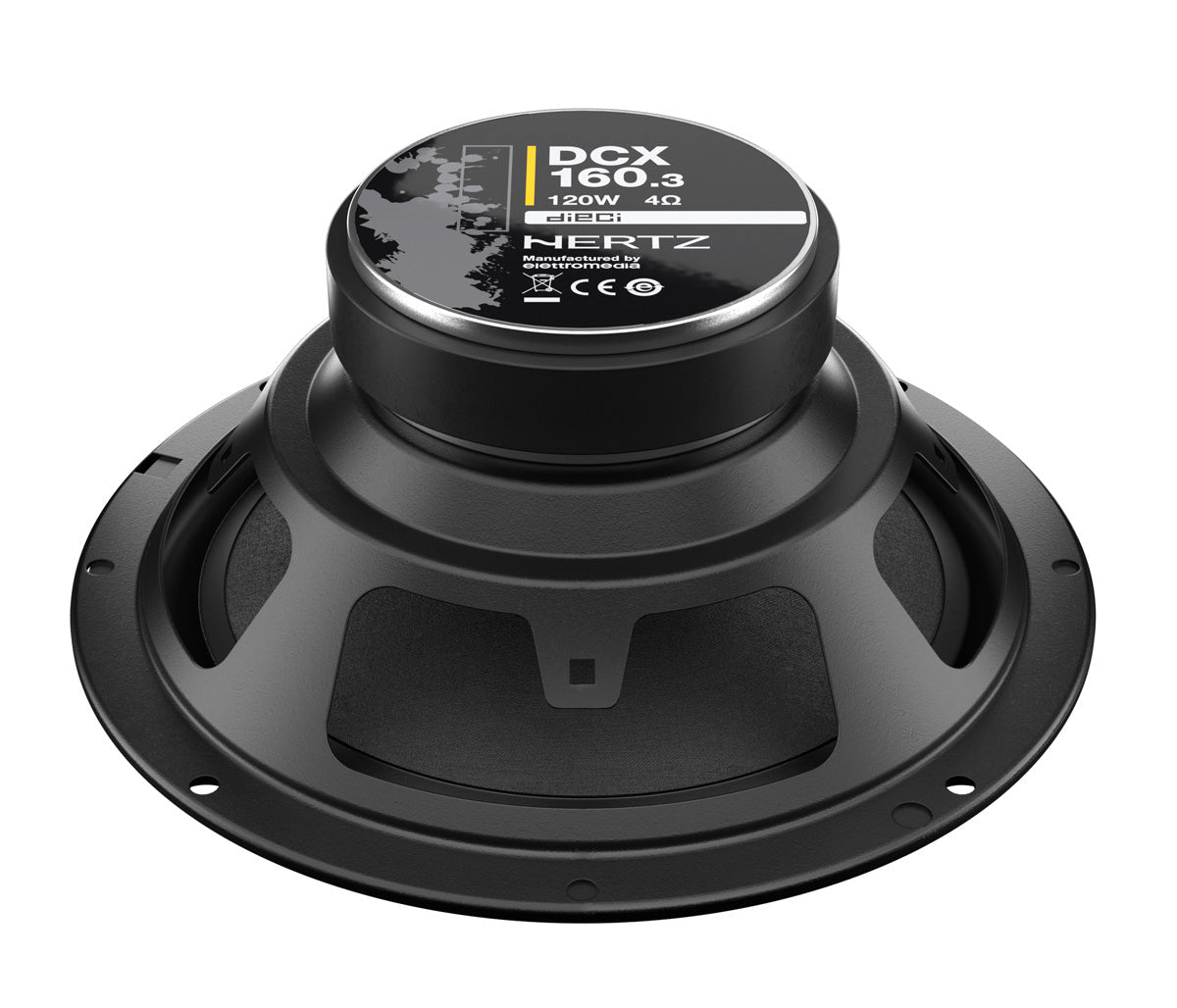

Hertz DCX 160.3 Dieci Series 6" Coaxial Speakers

Hertz DCX 160.3 Dieci Series 6" Coaxial Speakers

To meet all installation needs, without giving up on Hertz quality and performance, Hertz DCX 160.3 Dieci series car audio coaxial is designed with maniacal care to provide linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.

Features

• Large motor assembly for mobile voice coil control.
• Pure copper voice coil, wound on conex former, for maximum lightness.
• Water-repellent treated paper cone.
• TPU surround, for wide excursion and resonance damping.
• Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
• DIN size basket protected by abrasion-proof dust paint.
• Tin-plated, high current terminals.
• Silver-plated lead wires for maximum reliability and conductivity.
• Butyl rubber protective cover, against crashes and abrasions.
• Epoxy glue for basket and motor system provides perfect coupling.
• Low carbon content plates for maximum magnetic permeability and high heat dissipation.
• Provided adaptor ring designed for installation in GM and Honda models with 6”.

Technical Specifications
Component: Two way coaxial
Size mm (in.): 160 (6)
Power Handling - Continuous W: 60
Power Handling - Peak W: 120
Impedance Ohm: 4
Woofer Voice Coil Ø mm (in.): 25 (1)
Frequency Response Hz: 50 ÷ 21k
Woofer Magnet size D x d x h mm (in.): 80 x 40 x 15 (3.1 x 1.6 x 0.6)
Weight of one speaker kg (lb.): 0,75 (1.65)
Woofer Magnet: High density flux ferrite
Tweeter Magnet: Neodymium
Cone: Water-repellent pressed paper
Dome: PEI

Electro-acoustic Specifications
D mm: 124
Re Ohm: 3,2
Fs Hz: 70
Le mH: 0,18
Vas I: 10,32
Mms g: 10
Cms mm/N: 0,52
BL T*m: 4,50
Qts: 0,62
Qes: 0,69
Qms: 6,3
Spl dB: 93

Physical Specifications

A: 167 mm (6.57 in.)
B: 127 mm (5 in.)
C: 66,5 mm (2.62 in.)
D: 56,5 mm (2.22 in.)
