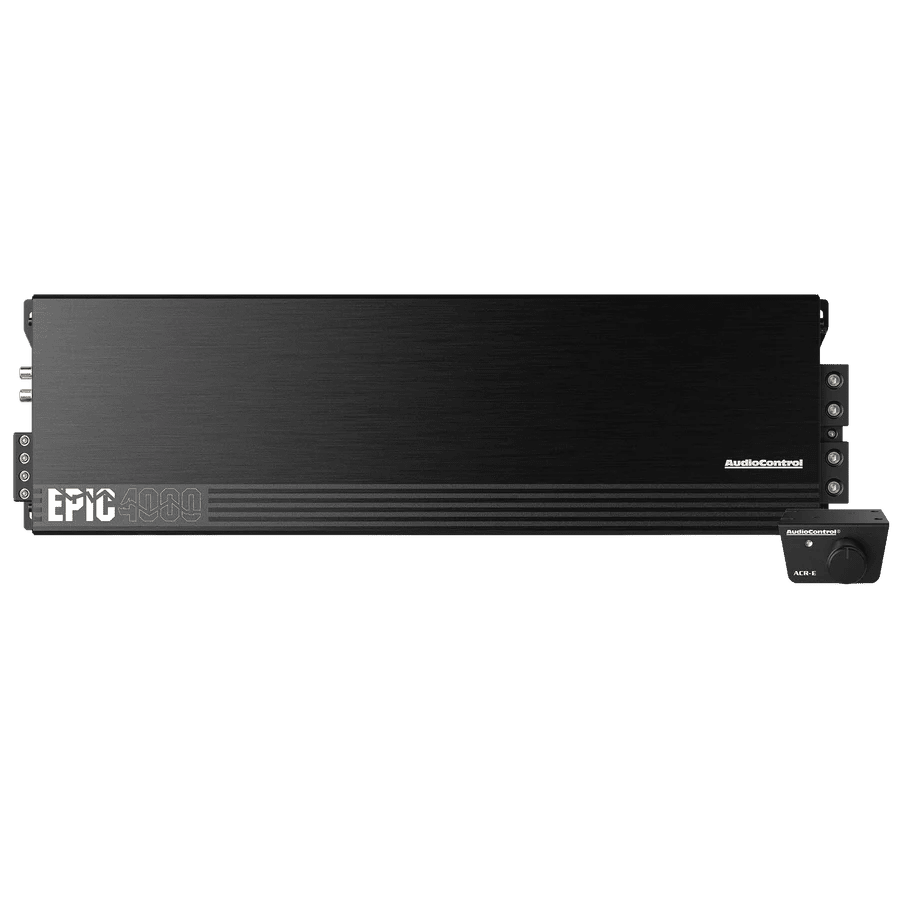

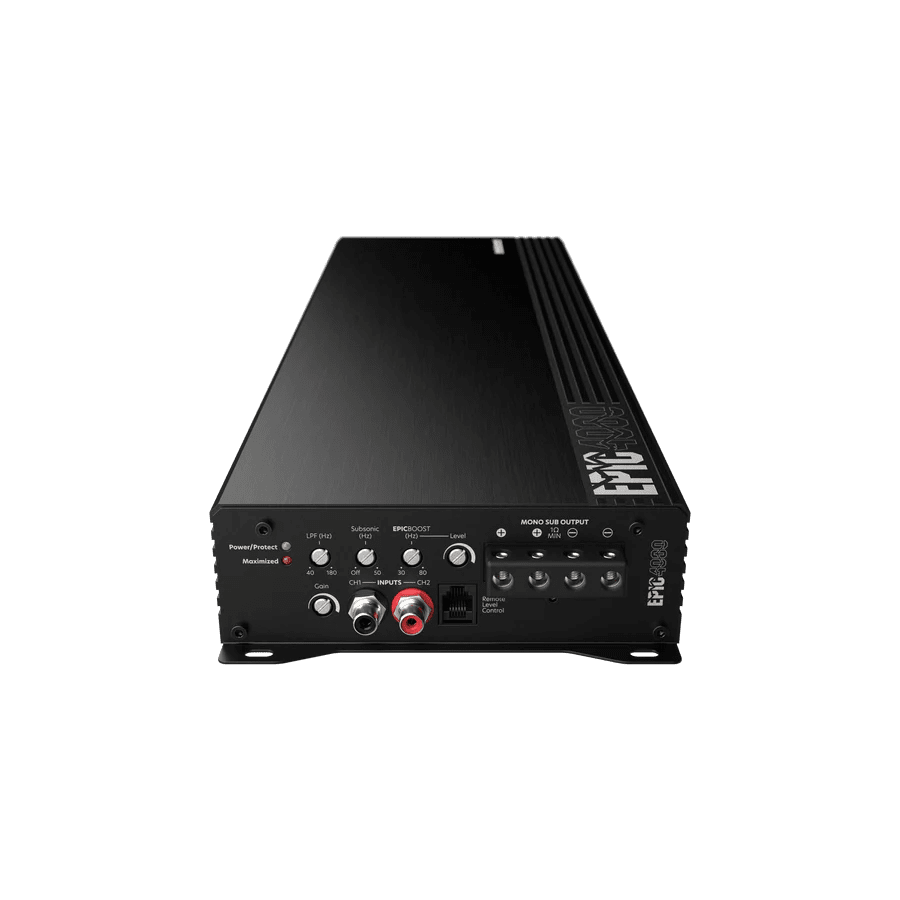

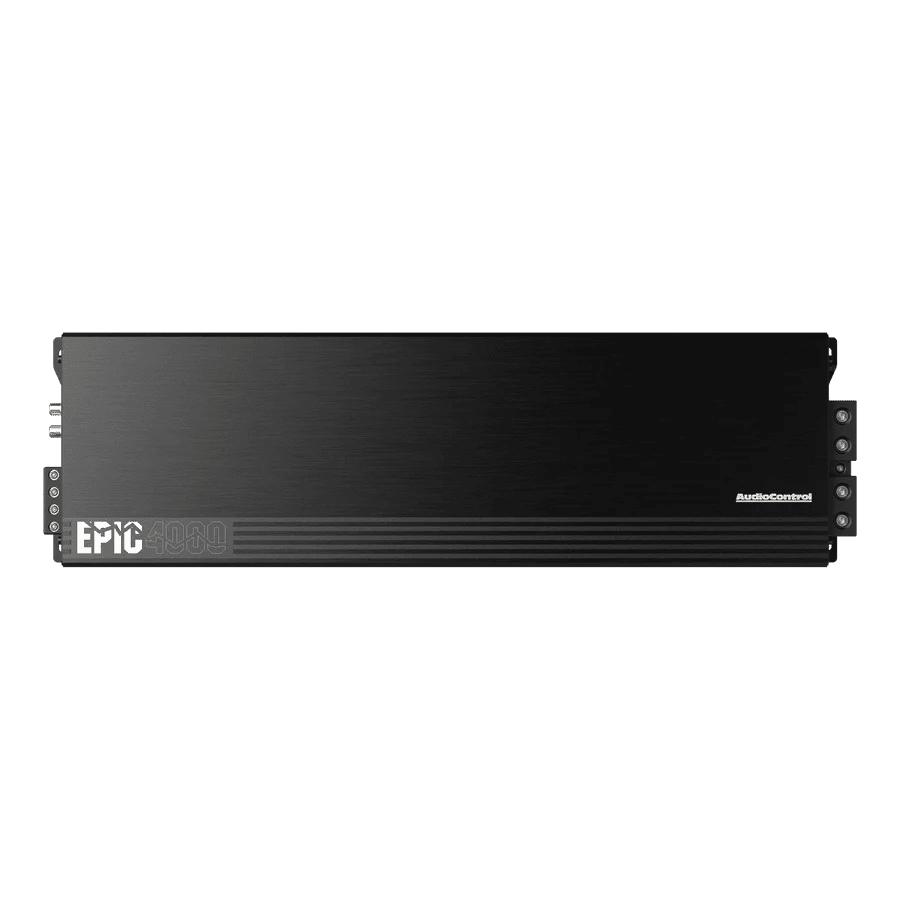

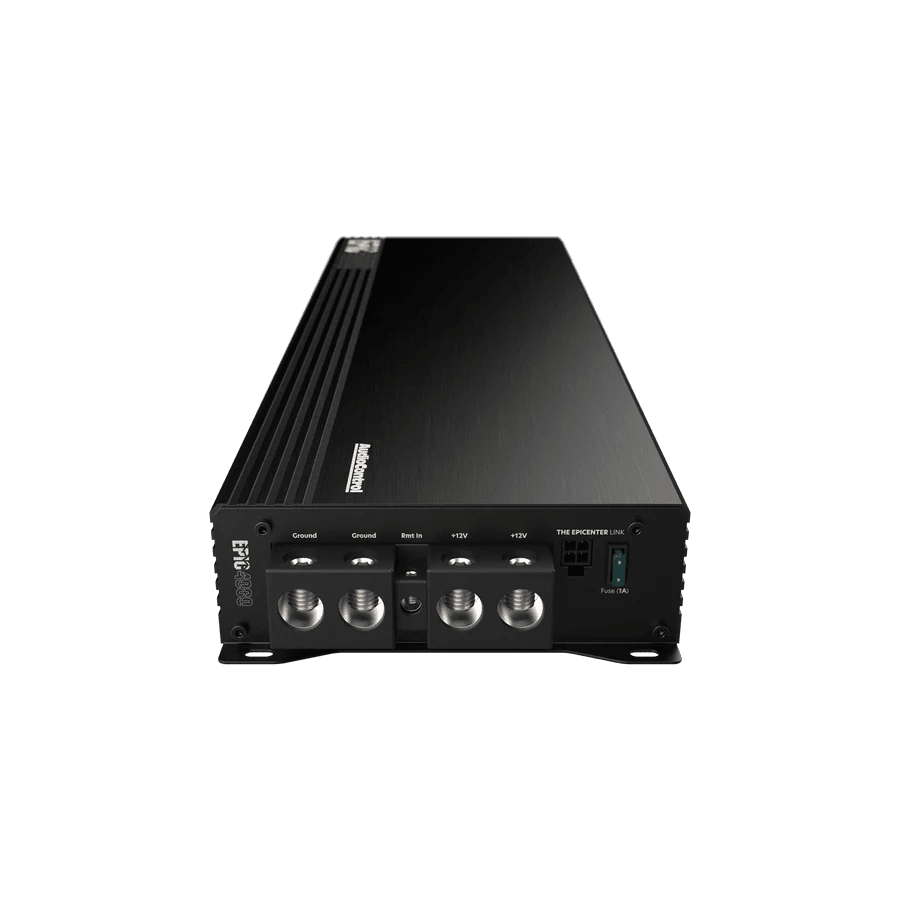

AudioControl EPIC4000 EPIC Series Subwoofer Amplifier

AudioControl EPIC4000 EPIC Series Subwoofer Amplifier

The AudioControl EPIC Series Amplifier delivers massive, heart-pounding bass in a thermally efficient design. Perfectly paired with The EPICENTER Bass Restoration Processor (sold separately), it enhances your bass experience to insane levels. The EPIC4000 is the definitive engine for competition-grade audio. Engineered for extreme efficiency and uncompromising stability down to the lowest impedances, this amplifier is built with oversized components and advanced thermal management to deliver its rated wattage reliably, not just on the bench, but deep into every demanding track. It’s not just about loudness; it's about converting colossal power into pure low-frequency output that dominates the sound stage and achieves legendary SPL scores.

Features

• High-Power, Competition-Grade Class D: Experience high performance and thermal efficiency that delivers monster power to the most demanding subwoofer systems.
• High-Current Design – 1Ω Stable: Provides massive, stable power output necessary to drive the most demanding low-impedance speaker loads at 4000W RMS @ 1 ohm.
• Smart Auto-Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier should encounter an issue.
• 12 dB/octave Linkwitz-Riley Variable Low Pass & Subsonic Filters: Fine-tune your audio setup, matching your subwoofer’s frequency range for ground-shaking bass performance while protecting your subwoofers in vented enclosures.
• EPIC Boost Variable Frequency Bass Boost: Hear your bass slam with a variable frequency (30 to 80 Hz) bass equalizer with a boost range of 0 dB to +12 dB.
• Solid Power/Speaker Terminals with Hex Screws: Secures maximum current flow and signal integrity, ensuring low-resistance connections for consistent performance.
• EPICENTER Link: Simplify installation with the EPICENTER LINK (included) to seamlessly connect the EPIC amplifier and The EPICENTER bass restoration processor (sold separately) for an unbeatable bass experience and 1A fuse protection to safeguard your equipment.
• ACR-E Remote Level Control Included: Adjust your sound effortlessly with the included remote gain knob, giving you full control at your fingertips.

Specifications
Amplifier Topology: Class D
Power Output RMS (14.4V, <1% THD):
     1000 Watts @ 4 ohms
     2000 Watts @ 2 ohms
     4000 Watts @ 1 ohm
Frequency Response (+/- 1 dB): 10 Hz - 190 Hz
S/N Ratio: 104.8 dBa, Ref 1000 Watts @ 4 ohms
Power / Ground Wire Gauge: 0 AWG
Speaker Terminal Wire Gauge: 8 AWG
Recommended Fuse Rating: 200 Amp x 2 / 400 Amps x 1
Low Pass Filter: 12dB/octave Linkwitz-Riley, 40 Hz to 180 Hz
Subsonic Filter: 12 dB/octave Linkwitz-Riley, Off to 50 Hz
EPIC Boost: 30 to 80 Hz, Gain: 0 to 12 dB
Line-level Inputs: 0.5 to 12 VRMS
Chassis Dimensions (LxWxH): 21 in x 6.1 in x 2.04 in
