AudioContorl PNW-1 PNW Series 1" Tweeters

AudioContorl PNW-1 PNW Series 1" Tweeters

Take your audio experience to the next level with the PNW-1 high-fidelity tweeters from AudioControl! The PNW-1 features a hybrid silk dome tweeter, silk dome diaphragm and aluminum housing so you can experience accurate sound reproduction without distortion.

The detachable housing and versatile mounting accessories simplify installation, accommodating various applications seamlessly. The included in-line high-pass filters ensure only the desired frequencies reach the tweeter to maximize your sound and minimize distortion.

Pair PNW-1 tweeters with any of the AudioControl PNW speaker line-up for a truly immersive audio experience!

• The tweeters are designed to provide an immersive audio experience with accurate sound reproduction and minimal distortion.

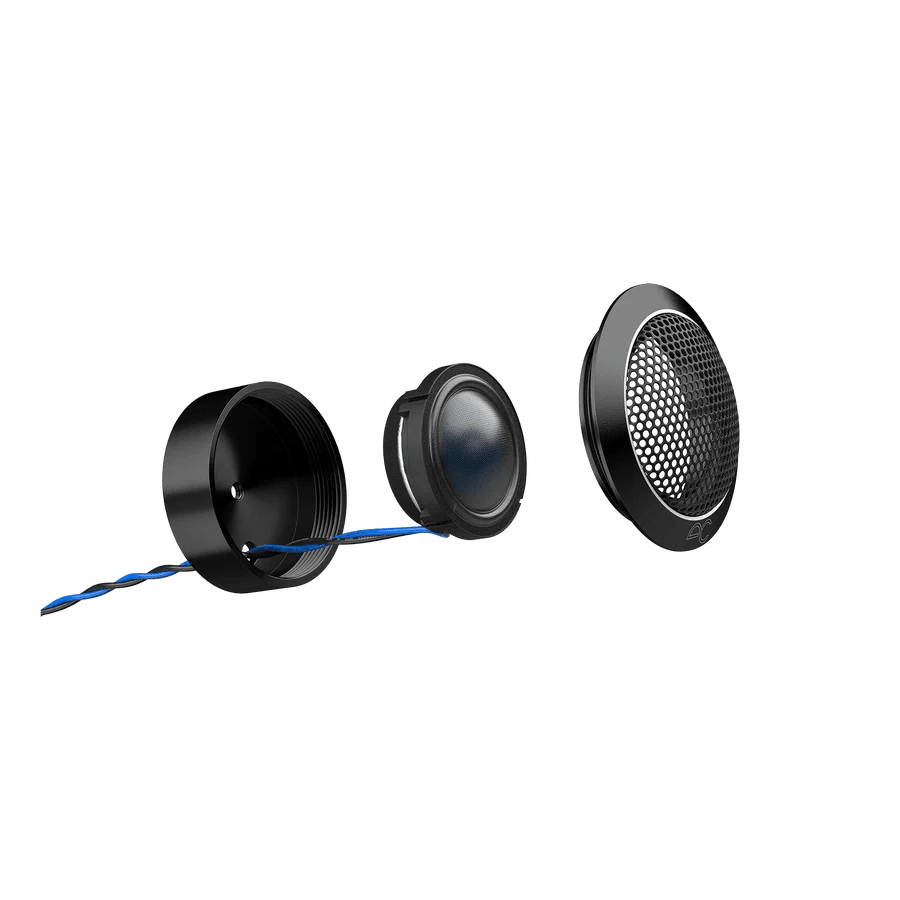

• Easy installation is facilitated by the detachable housing assembly and multiple mounting accessories, making them suitable for various applications.
• In-line high-pass filters are included to optimize sound by allowing only the desired frequencies to reach the tweeter.
• Compatibility: The tweeters can be paired with any of the AudioControl PNW speaker lineup for a comprehensive audio setup.

Features

• Assembly: Detachable assembly for OE (Original Equipment) applications.
• Frequency Response: Rear dampened hybrid silk dome tweeter for extended frequency response.
• Mounting: Multiple mounting accessories included for easy installation.
• Filters: Included in-line high-pass filters to ensure only desired frequencies reach the tweeter, minimizing distortion.

Specifications
DC Resistance (Re).: 2.3 Ohms
Power: 100W RMS / 125W Max
Nominal Impedance (Z): 3 Ohms
Resonance Freq. (Fs): 1.621 kHz
Mechanical Q Factor (Qms): 6.92
Electrical Q Factor (Qes): 2.3091
Total Q Factor (Qts): 1.7314
Frequency Response: 1k-20kHz
Tweeter Voice Coil Diameter: 25 mm
Crossover Type: 1st Order Butterworth
Crossover Frequency: 3.5 kHz HP
Slope (Octave): -6 dB

Dimensions
Overall Diameter (w Grille): 2.13 in/ 54 mm
Cut Out Diameter: 1.85 in/ 47 mm
Mounting Depth: 0.63 in/ 16 mm
