Pioneer TS-D69C

6" x 9" Component Speaker Set

• 26mm Polyester Soft Dome Tweeter with Swivel Capability
• Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
• Unique Tri-position, Swivel Tweeter Mounting Kit Expands Installation Flexibility

Overview

D Full Range, Music For All
The D is a result of Pioneer’s automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities. Following Pioneer’s OPEN & SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener. 26mm Polyester Soft Dome Tweeter
Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound. Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass. Compact Swivel Tweeter With Tri-Position Mounting Kit
More than any other speaker, the positioning and mounting location of the tweeter is crucial to the stereo imaging of the system and the overall listening experience. To ensure installation flexibility, the D component system tweeters are extremely compact and feature a unique swivel mount that allows precise aiming of high frequencies. Pioneer’s tri-position mounting kit (included) provides the flexibility to mount the tweeter using a variety of methods; flush mount, surface mount or bracket mount, especially important for concealing the tweeter behind an original equipment tweeter grille in the vehicle dash or door.

Specifications

System

• System Type 2-way Component
• Sound Pressure Level (Sensitivity) 86dB (+- 1.5dB)
• Frequency Range 33 Hz to 49 kHz
• Continuous Power Handling (RMS) 110 Watts
• Maximum Peak Power Handling 330 Watts
• Nominal Impedance 4 ohms

Woofer

• Diameter 6” x 9”
• Cone Material Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
• Center Cap Material Polyethylene Terephthalate (PET)
• Surround Material Butyl Rubber
• Magnet Material Ferrite
• Magnet Weight 15.2 oz

Tweeter

• Type Soft Dome
• Diameter 26mm
• Diaphragm Material Polyester
• Magnet Material Neodymium
• Magnet Weight 6.4 g
• Swivel Type Yes

DMH-WT3800NEX 9-inch display has the latest connectivity solutions designed especially for today’s smartphone driven lifestyle. This receiver highlights a capacitive floating touchscreen display attached to a 1-DIN Chassis, allowing installation flexibility to ensure the best fit and usability for your vehicle’s dash. Access Apple CarPlay or Android Auto via a wireless or wired connection and take advantage of split screen mode to give you access to more on-screen information. With Light and Dark mode, its easier to see the screen when sunlight is being reflected in the car. Availability of non-Pioneer content and services, including apps and connectivity, may change without notice due to changes in operating systems, firmware, or app versions; changes to, restrictions on or discontinuation of the service or service plans; non-Pioneer hardware changes; or other events. LIGHT and DARK MODE - Choose Your Style!
Introducing new Light Mode for the Pioneer NEX interface! This mode will make the receiver screen much easier to see when sunlight is being reflected in the car. The receiver will automatically switch between light/dark mode at a set time, or when your vehicles headlights turn on/off. This can also be controlled manually.

Split-Screen Mode
If you’ve ever wanted to control two apps simultaneously when using Apple CarPlay or Android Auto, get excited for Pioneer’s Split-Screen mode. With Split-Screen mode you can simultaneously display and control both the Apple CarPlay -or Android Auto- UI and the receiver’s menu for your secondary source at the same time, on one screen. This function is useful when you want to access your music content (i.e. AM/FM Tuner or USB) while navigating through Apple CarPlay or Android Auto without having to toggle back and forth. Pioneer’s intuitive Split-Screen mode also allows different configurations you can switch between by tapping the switch key icon. Display your current or last app in full screen, view several apps in split-screen mode, customizable widget sizes for easy viewing, or view the home screen with access to all your apps. Split-Screen mode allows seamless operation for various functions on the same screen to personalize features and customize menu settings. The NEX in-dash receiver when interfaced with a Metra Axxess or iDataLink Maestro RR/RR2 module (sold separately) offers smart vehicle integration solutions to retain and control settings that would otherwise be lost after replacing the factory head unit, including HVAC functions, audio controls on the steering wheel, gauges, heated/cooled seats, visual parking assistance, and more, without fully exiting the Apple CarPlay UI.

Floating Display
The DMH-WT3800NEX floating display configuration allows a large display to be installed using a universal 1-DIN chassis. The floating screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle's dash.

Wireless or wired, the choice is yours
The DMH-WT3800NEX supports a cable free connection between your smartphone and the receiver using Wi-Fi® wireless connectivity. Now compatible with both Android Auto Wireless (available on Google Pixel and Nexus devices)¹ and Android Auto over USB, the DMH-WT3800NEX makes it easier than ever to connect. Android Auto¹ makes it easier to access your favorite navigation, media and communication apps on the road while minimizing distractions. Compatibility with Apple CarPlay® supports connecting to an iPhone® device using either a wireless connection or a wired USB connection. Now you no longer need to worry about taking your smartphone out of your bag or your pocket before you get into your car.

Apple CarPlay
The DMH-WT3800NEX features Apple CarPlay®, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS. Learn More from: Apple + Pioneer Car Global

Android Auto
The DMH-WT3800NEX also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices. Learn More about Compatible Phones

CarAVAssist
The Pioneer DMH-WT3800NEX in-dash receiver is compatible with the CarAVAssist App, which supports home screen customization and other functions. You can bookmark websites that you want to enjoy in your car while parked, register your favorite sports teams to receive real-time game updates, make notifications settings for your smartphone, and more. The app also allows you to customize your receiver's home screen, including adding your own background image. Visit www.pioneerelectronics.com/CarAVAssist for a list of all compatible models.

Your Favorite Stations Wherever You Go, Wherever You Are
The DMH-WT3800NEX is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (sold separately, SiriusXM subscription required). Simply connect a SiriusXM SXV300 tuner to the Pioneer receiver and receive additional features like TuneMix™, SportsFlash™ and Traffic and Weather Now™. To learn more or to purchase the tuner, visit SiriusXM.

iDataLink Maestro
Keep your factory features and expand your level of in-vehicle connectivity with Pioneer NEX and iDatalink Maestro RR. When your DMH-WT3800NEX receiver is installed in a compatible vehicle using the iDatalink Maestro RR interface (sold separately), you’ll be able to enjoy the performance and features of the DMH-WT3800NEX receiver plus touchscreen control over key factory audio features. The DMH-WT3800NEX supports factory functions via the iDatalink Maestro RR interface including: Steering Wheel Controls, Media Player (including the factory AUX-in and USB ports), Hands-Free Telephone, Voice Commands, Satellite Radio, and Secondary Display Support. *Images will vary dependent on AV receiver and camera system

 Metra Axxess
The Metra Axxess Data Interface (sold separately) allows retaining and adjustments of your personalized features and customized menu settings through the DMH-WT3800NEX receiver. The Metra Axxess Data Interface with plug-n-play harness allows vehicle information and customized settings to be displayed on the DMH-WT3800NEX. Interfacing with the Metra Axxess offers smart vehicle integration solutions to retain and control settings that would otherwise be lost after replacing the factory head unit, including HVAC functions, audio controls on the steering wheel, gauges, and more.

Back Up Camera Input Ready*
Back Up Camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear. *Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

Second Camera Input
The DMH-WT3800NEX has an additional input where you can add a second camera. The second camera view can be activated at any time and has many potential uses including monitoring a tow vehicle, providing a side view for better lane visibility. Downloading the latest firmware allows the camera to show inverse perspective mapping for additional installation flexibility. This feature comes in handy when positioning a second camera on another area of the vehicle for a mirror imaging perspective from left to right.

Hands-Free Calling and Audio Streaming
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth enabled phone to the DMH-WT3800NEX without having to go through complicated settings. When a registered Bluetooth device is in proximity to the receiver, the auto connection function automatically pairs the two units. From hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search*, simple pairing, and control audio (AVRCP profile), Bluetooth® wireless technology has made life in the vehicle much more convenient. The DMH-WT3800NEX with Bluetooth also includes superior call quality reception using Wideband Speech Handsfree Profile 1.6. Wideband Speech nearly doubles the bandwidth of frequencies of a normal Bluetooth call (when compared to calls without Wideband Speech)**. Other features include the ability to browse music libraries on smartphones wirelessly. *Search functions vary by phone.
**Call quality depends on wireless provider’s support of HFP 1.6.

Sound Quality For All
Your car and your music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features such as the 13-Band Graphic Equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences.

SiriusXM SXV300V1 Tuner (Optional) - Add Satellite Radio to Stereo (Subscription Required)

Connect Vehicle Tuner Model #: SXV300V1 Connect, control and enjoy Satellite Radio, including new SiriusXM Xtra Channels, through your compatible SiriusXM-Ready car stereo. The SXV300 tuner plugs directly into compatible car stereos from top manufacturers, without the need for special adapters or translators. The compact size installs easily and discreetly behind the dash for a fully integrated look.

Features
Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed. Enjoy SiriusXM Xtra Channels including SiriusXM Latino, dedicated Spanish language channels.*
Compact size hides discreetly behind the dash for a fully integrated look.
Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.**
Automatically start songs from the beginning on your favorite channels with TuneStart.**
Use to hear a mix of songs from your favorite channel.**
Use to preview songs that you have not yet heard on your favorite channels.**
Keep up with the big plays for your favorite teams with SportsFlash™.**
Keep Moving with the most current updates using Traffic 7 Weather Now™.**
Get alerts when your favorite song, artist or team is playing.**
Discover new music and tag for purchase with iTunes® radio tagging.**
Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.
Includes: SXV300 Tuner and Magnetic Mount Antenna. * Access to Xtra channels depends on subscription package. Subscription sold separately.
** Consult car stereo receiver manufacturer for detailed description of features and operations and capabilities.

Specifications
SiriusXM Connect Tuner (OPTIONAL)
Dimensions: 3.42 in (width) x 2 in (height) x 0.7 in (depth)
87 mm (width) x 51.8 mm (height) x 17.9 mm (depth)
Weight: 3 oz (85 g)
Cable Connector Type: Male (SiriusXM-Connect)
Cable Length: 25.6 in (650 mm)
Antenna Connector: SMB Male
Power Requirements: 12V DC, 0.3A (Max) supplied by SiriusXM-Ready car stereo receiver
Operating Temperature: -4°F to +140°F (-20°C to +60°C)
Vehicle Antenna
Type: SiriusXM Magnetic Mount
Connector: SMB female, right angle
Cable Length: 23 ft (7 m) *Specifications are subject to change without notice

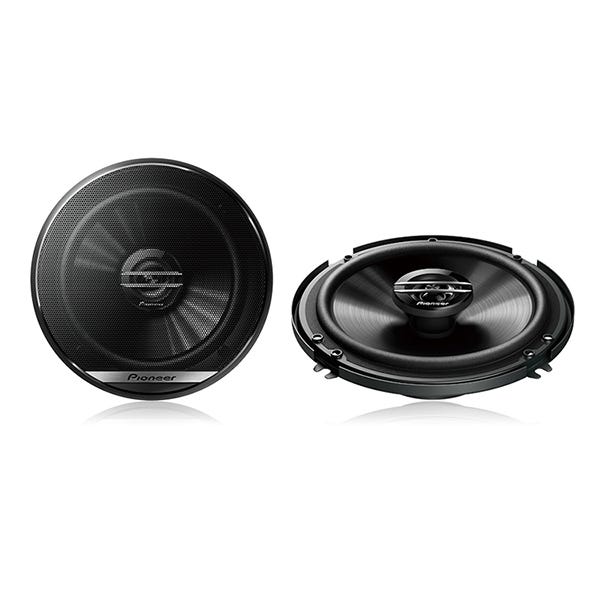

Pioneer TS-G1620F

6.5" Coaxial Speaker System

• 300 Watts Max. Power
• Injected Molded Polypropylene™ (IMPP) composite Cone Woofer
• Patented Pioneer P.F.S.S Spider
• 1-3/16" Balanced Dome Tweeter

Overview

Installation and Sound to Suit Any Car Our TS-G1620F speakers are excellent choices to replace a bad set of factory 6-1/2" speakers. Their two-way design handles 300 watts max. power (40 watts nominal) and features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) Composite Cone Woofer for improved sensitivity and reduced distortion.
You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the 1-3/16" Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles. Speaker grilles are not included. P.F.S.S. Spider
Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, its hard part controls excessive vibration and prevents movement error.

Specifications

General

• Size 6-1/2
• Design Coaxial 2-Way
• Tweeter Design 1-3/16" Balanced Dome
• Tweeter Composition Polyethylene Terephthalate (PET)
• Woofer Composition Injected Molded Polypropylene™ (IMPP) with MICA
• Woofer Surround Rubber Coated Cloth
• Woofer Magnet Composition Ferrite
• Warranty 1 Year

Installation Specification

• Max. Music Power (Nominal) 250W (35W)
• Frequency Response 31 Hz to 18 kHz
• Sensitivity (1W/1 m) 89 dB
• Impedance 4 Ohms
• Mounting Depth 1-3/4" (in.)
• Cut-Out Dimensions 5" (in.)
