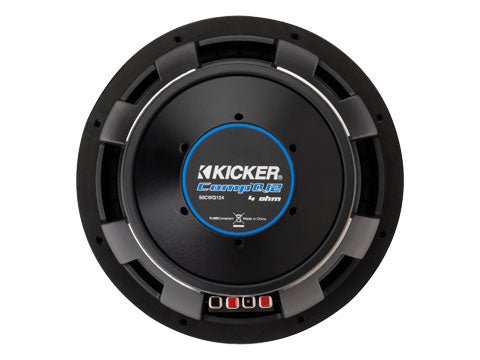

Kicker 51CWQ124 CompQ Series 12" Subwoofer

Kicker 51CWQ124 CompQ Series 12" Subwoofer

The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.

The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs.

A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded.

The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 1000 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters: 51CWQ124 T/S Parameters
Product Dimension Sheet: 51CWQ12 Dimensions
CNC Software: Comp6.75-15.DXF - for subwoofer hole cutouts
3D Printing Software: Comp6.75-15.SLDPRT - 3D-printing of grille spacers
Woofer (in, mm): 12, 30
Impedance (Ohms): 4 DVC
Recommended Amp Power (watts RMS): 500-1000
Frequency Response (Hz): 20-100
Sensitivity (1W, 1m): 85.4
Xmax (mm): 23
Mounting Depth (in, mm): 7-1/8, 18.1
Mounting Diameter (in, mm): 11-1/16, 28.1

Sealed Enclosure Specs
Sealed Enclosure Volume Min (cu. ft., L): 0.88, 24.9

Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
Box Volume [ft³, L]: 0.88, 24.9
Panel A [in, cm]: 13.5x13.5, 34.3x34.3
Panel B [in, cm]: 13.5x10.5, 34.3x26.7
Panel C [in, cm]: 12x10.5, 30.5x26.7
Sealed Enclosure Volume Max (cu. ft., L): 2.0, 56.6
Vented Enclosure Volume Min (cu. ft., L): 1.75, 49.6
Vented Enclosure Volume Max (cu. ft., L): 3.25, 92
