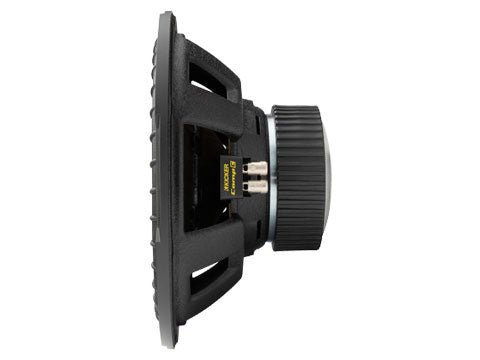

Kicker 50CWCS124 CompC 12" Subwoofer

Kicker 50CWCS124 CompC 12" Subwoofer

The perfect combination of performance and value, the KICKER® CompC™ Subwoofer delivers the bump you’ve been craving!

The dual-voice-coil CompC Subwoofers make wiring easy with spring-loaded terminals, for easy optimizing of a CX-Series Amplifier. Big power and big bass are easy to get.

Features:

• Dual Four-Ohm Voice Coil and Reengineered for Increased Excursion and Deeper Bass
• Injection-Molded Polypropylene Cone
• Forced-Air Cooling™ for Outstanding Durability
• Ribbed Polyurethane Surround
• Signature Yellow Surround Stitching
• High-Strength Spiralead™ Tinsel Leads
• Stamped Steel Basket
• High Temp Voice Coil
• Spring-Loaded Speaker Terminals
• Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

*The CompC 12-inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters: 50CWCD124 T/S Parameters
Product Dimension Sheet: 50CWCD124 Dimensions
Size [in, cm]: 12, 30
Recommended Amplifier Power [watts RMS]: 150-300
Peak Power Handling [watts, per ANSI/CTA-2031-A]: 600
Sensitivity [dB 1w/1m]: 87.1
Rated Impedance [OHMS]: 4 DVC
Fs [Hz]: 30.6
Frequency Response [Hz]: 27-500
Outer Frame Dimension [in, cm]: 12-5/8, 32
Mounting Depth [in, cm]: 5-3/4, 14.6
Mounting Cutout [in, cm]: 11, 27.9
Max Rec Sealed Box Vol [cu. ft, liters: 3.5, 99.1
Min Rec Sealed Box Vol [cu. ft, liters: 1.25, 35.4
Max Rec Vented Box Vol [cu. ft, liters): 2.25, 63.7
Min Rec Vented Box Vol [cu. ft, liters]: 1.75, 49.6

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
