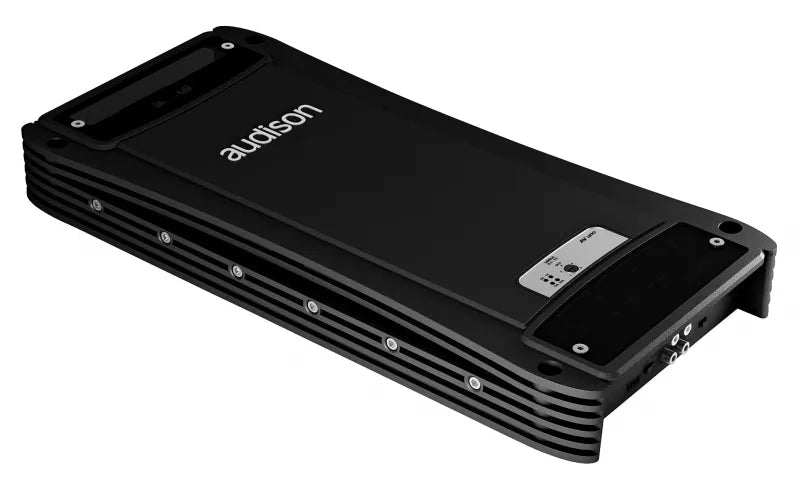

Audison AV UNO Subwoofer Amplifier

Audison AV UNO Subwoofer Amplifier

AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand). It allows to combine the plus points, in terms of audio quality and robustness, of the AB Class traditional amplifiers with the efficiency of the D Class amplifiers. AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power Dual Mono systems. Power, control and outstanding final stages are capable to unbelievable bass and extraordinary musical quality on the whole frequency range. AV uno also allows you to replace the analog input board with the digital one(AV bit IN).

Features

• POD (Power On Demand) circuitry to combine AB Class sound with the efficiency of the D Class.
• Suitable for high-power Dual Mono systems and subwoofer systems.
• 1 x 1700 W RMS @ 1ohm stable.

Specifications
Channels: 1
Class: AB-Class
Hi Level Input: Yes
Low Level Input: Yes
Digital Input: No
Power supply voltage / fuse: 11 ÷ 15 VDC
Idling current: 2 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power: 120 A
Remote OUT: 12 VDC - 50mA
Remote IN: 7 ÷ 15 VDC - 1mA
Adjustable Crossover: Yes
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.04 %
Bandwidth A: (-3 dB, 2 VRMS, 4 Ω): 7 ÷ 20k Hz
S/N ratio A: (A weighed @1 V): 95 dBA
Damping factor A: (1kHz, 4 Ohms): 160
Input sensitivity Pre-In: 0.3 ÷ 5 V RMS
Pre In Impedance: 15k Ω
Input sensitivity Speaker-In: 1.4 ÷ 24 V RMS
Input impedance Speaker-In: 5k Ω
Total Power RMS: 1300 W
Minimum load impedance: 1Ω
Output Power (RMS) @14.4 VDC, 1% THD:
    1 Ch: 700 W x 1(4Ω)
    1 Ch: 1300 W x 1(2Ω)
    1 Ch: 1700 W x 1(1Ω)
