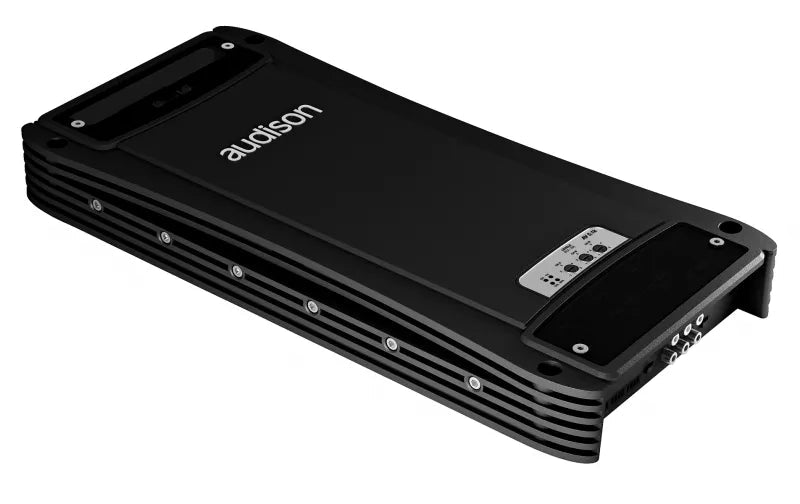

Audison AV 5.1K Voce Series 5-Channel Amplifier

Audison AV 5.1K Voce Series 5-Channel Amplifier

AV 5.1k, 1650 W (RMS) max, five channels: with its hybrid design, it is the specialist amplifier for front + rear + subwoofer or multi-amplified front + subwoofer systems. Its high-quality AB Class output stage provides two channels with 250 W (RMS), combined with another pair of A class pure audio channels rated at 75 W (RMS), perfect for active two-way front speaker systems. The D Class mono section provides 1000 W (RMS) for powerful subwoofer output. AV 5.1k also allows you to replace the analog input board with the digital one (AV bit IN).

Features

• Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
• Hi-Res audio certification thanks to 4 ÷ 60k Hz bandwidth

Specifications

Amplifier Tech Data
Channels: 5
Class: AB-Class
Hi Level Input: Yes
Low Level Input: Yes
Digital Input: No
Power supply voltage / fuse: 11 ÷ 15 VDC
Idling current: 3 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 110 A
Remote OUT: 12 VDC - 50mA
Remote IN: 7 ÷ 15 VDC - 1mA
ART from OUTPUT BTL speakers (Selectable): Selectable

Amplifier Stage
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: A, B Ch: 0.05 % | C (sub) Ch: 0.3 %
Bandwidth A:
     (-3 dB) A, B Ch: 5 ÷ 20k Hz
     -3 dB) C (sub) Ch: 7 ÷ 350 Hz
S/N ratio A:
     (A weighted @ 1V): A, B Ch: 100 dB
     (A weighted @ 1V): C (sub) Ch: 87 dB
Damping factor A:
     (1k Hz @ 4Ω) A, B Ch: 100
     (100 Hz @ 4Ω) C (sub) Ch: 80
Input sensitivity Pre-In: 0.3 ÷ 5 V RMS
Pre In Impedance: 15k Ω
Input sensitivity Speaker-In: 1.4 ÷ 24 V RMS
Input impedance Speaker-In: 5k Ω
Total Power RMS: 1650 W
Minimum load impedance: 4Ω / 2Ω / 2Ω
Output Power (RMS) @14.4 VDC, 1% THD:
     5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 600 W x 1 (4Ω)
     5 Ch: 75 W x 2 (4Ω) + 140 W x 2 (4Ω) + 1000 W x 1 (2Ω)
     5 Ch: 75 W x 2 (4Ω) + 250 W x 2 (2Ω) + 1000 W x 1 (2Ω)
Adjustable Crossover: Yes

CEA Specifications
Output power @ 4Ω, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
SN ratio (ref. 1W output):
     75 W Channels: 80 dBA
     140 W Channels: 80 dBA
     600 W Channels: 78 dBA

Inputs
Input Type: Pre IN / Speakers IN
Filters Outputs: Pre OUT Full Range
Filter Pass A: Ch Filters (Full / Hi-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
Filter Pass B: Ch Filters (Full / Hi-Pass / Band-Pass): 50 ÷ 1k Hz (Hi) / 250 ÷ 5k (Lo) @ 12 dB/Oct.
Filter Pass C: Ch Filters (Full / Lo-Pass): 50 ÷ 150 Hz @ 24 dB/Oct.
Remote Sub Volume: -50 ÷ 6) dB

Other
Fuse: 100 A
Weight: 7.2 kg

Dimensions

Dimension A: 470 mm
Dimension B: 399 mm
Dimension C: 220 mm
Dimension D: 198 mm
Dimension E: 58 mm
