Rear View Safety RVS-01-360-01 Inview 7" HD Monitor and 360 HD Around Vehicle Monitoring System

Rear View Safety RVS-01-360-01 Inview 7" HD Monitor and 360 HD Around Vehicle Monitoring System

Details

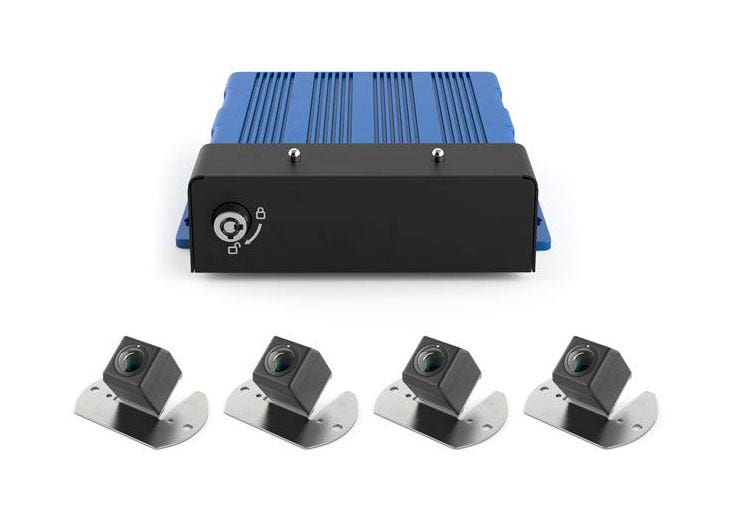

The inView 360° HD is an Around Vehicle Monitoring System that greatly reduces blind spots by giving drivers a real-time 360° view around the apparatus. The inView 360° HD is a revolutionary Around Vehicle Monitoring System that eliminates blind spots by giving drivers a real-time 360° view around the apparatus. The RVS-01-360 is equipped with 4 Full HD ultra-wide fish-eye cameras, which give you four unique views that seamlessly merge together to create a complete image of your vehicle and its surroundings. While the standard system consists of 4 HD cameras, the system also includes two spare video/camera channels to monitor other areas of the vehicle such as the interior or the exterior.

The inView 360 HD system has a built-in DVR with solid-state storage encoded with H.264. The system supports a maximum of 1TB of solid-state storage space. The solid-state storage consists of up to 4 SD cards in the ECU.Use the 360° view to assist with parking, check blind spots, or navigate narrow roads. A truly HD system, the RVS-01-360 easily integrates with our 7” or 10” HD monitor. These monitors can be configured to automatically shut off based on the vehicle speed to minimize distraction. The system comes with a G-Sensor (built-in) and an external GPS receiver. The RVS-01-360 supports the use of a graphic overlay (outrigger) for large vehicles such as fire trucks and wide commercial vehicles. The extent of the outrigger is configurable. This versatile system can also be connected directly from the ECU to a Mobile DVR as a single channel.

Please Note: One calibration kit may be used to calibrate multiple systems.

This updated version of the inView 360 now comes with auto-calibration and an automatic trigger switch (Reverse/Left/Right/Front).

Features

Full Around Vehicle Monitoring (AVM)
The standard system consists of four cameras that can provide multiple views, including a 2D bird’s eye four camera stitched-around vehicle view (top view). The system is capable of connecting two additional cameras. All connected cameras are recorded.

Full HD
System features 4 Full HD 1080P Fisheye Cameras and a high definition video output to attach a Full HD monitor.

Out-of-the-Box-Recording
Integrated HD recording onto 4 solid state SD cards, for a total capacity of 1 TB. (Sold Separately).

Automatic Triggers
Set triggers to have the camera view change automatically (Left/Right/Reverse/Default).

Customizable on Screen Overlay
Customize the length, width, and position of the overlay for specific applications.

Auto Calibration
Calibration is performed simply and easily, directly through the system monitor.

Instant Reverse
The system activates the rear camera image with 2 seconds of ignition, enabling FMVSS-111 compliance.

Specifications

System
Operating Voltage: 8 VDC to 32 VDC. Reverse polarity protection on power
Operating Temperature: -20ºC to 70ºC
Storage Temperature: -40ºC to 85ºC
Self-Diagnostics: On boot. LED indicators, on-screen indicators
Views:
      Top View, 2D stitched around vehicle view / Front / Reverse / Left / Right
      Top view combined with one of the following views Front / Reverse / Left / Right
      Auto-switched based on external signal triggers: Left / Right / Reverse Signals

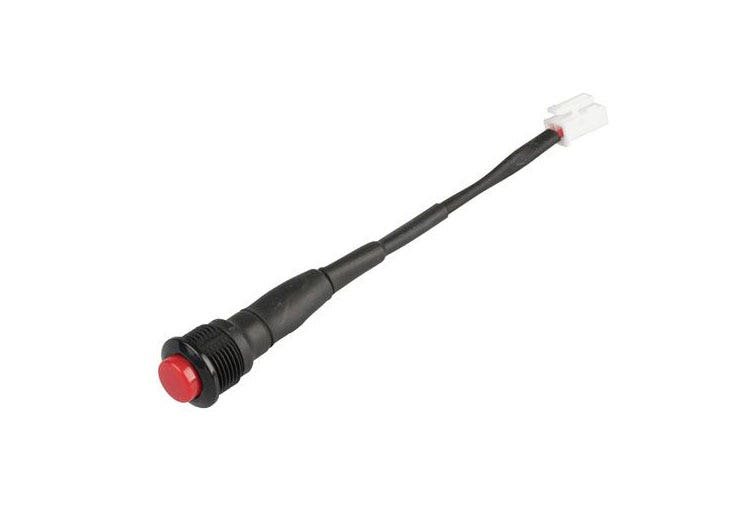

      Manual-switched with an external push button
      Instantaneous reverse view after engine ignition and reverse gear engaged
Bulk Calibration: Supported
Trigger Signal Voltage: 6 to 32 VDC
Video Download: Via Wi-Fi
Configuration: Via IR, via Wi-Fi, via monitor (touch screen or mouse driven)
Video Recording: Supported; continuous
Frame Rate: 1080p @30fps NTSC, @25fps PAL; all channels
Compression/Encoding: H.264
Storage: Up to 4 SD cards in series; max capacity 256 GB for a total of 1TB max system storage.
Monitor: Supports 720p (CVBS) and /or 1080p (HD); touch screen capable
Video Streaming: RTSP support via ethernet
Vehicle Image Library: Editable - Preloaded with 8 vehicle types

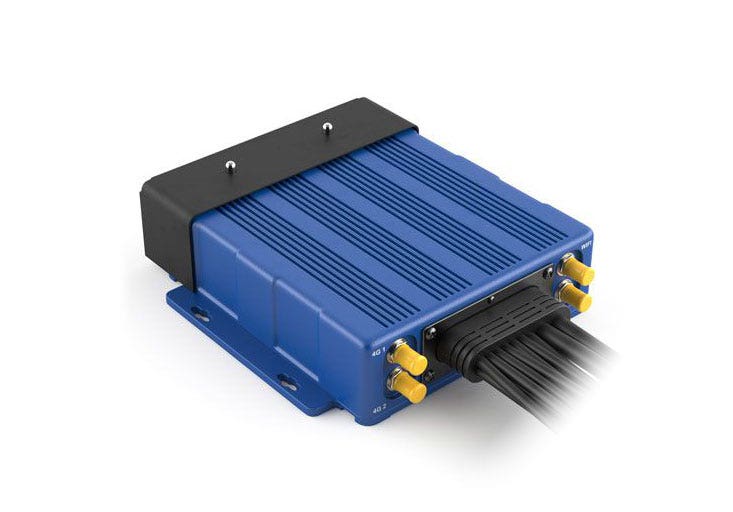

ECU

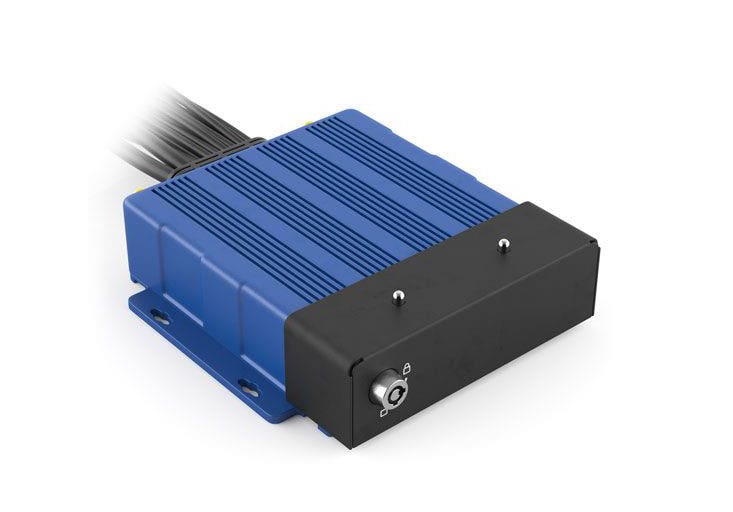

Enclosure Enclosure: die-cast aluminum ADC12; lockable / removable front cover (metal).
Video Outputs: 1080p / CBVS, 2 ports
Video Inputs: Up to 6; 4 cameras to provide top view, 2 spare channels
Trigger Signals: Left / Right / Reverse / Panic (event marking), 6-32VDC @ 0.12 to 0.63 mA.
Camera Port Impedance: 75 Ω
Video Output Port Impedance: 75 Ω
GPS: <28mA @ 3.3V
Dimension: 135 x 120 x 40 mm; 5.8 x 6.8 x1.5 in

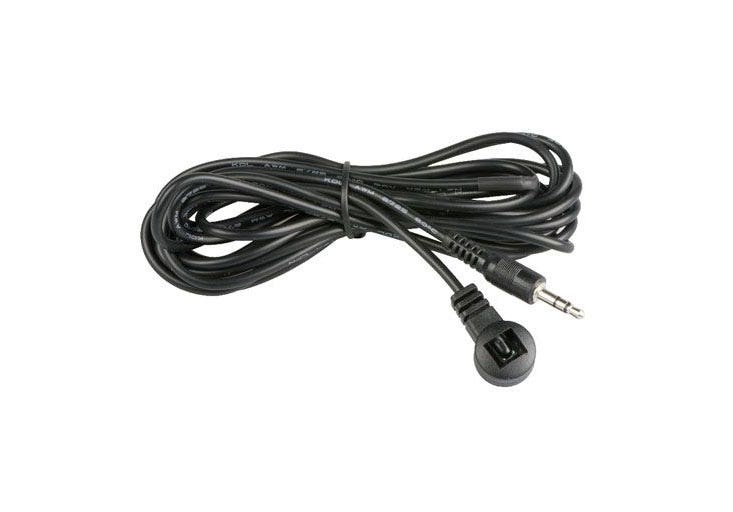

IR Sensor: 3m extension

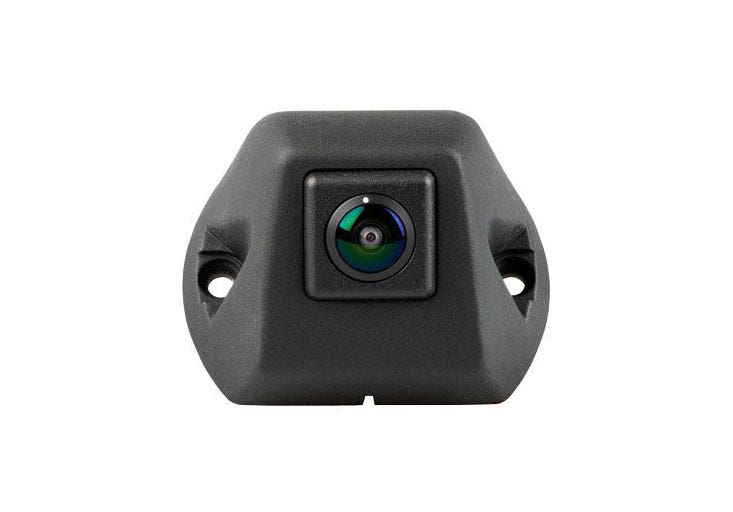

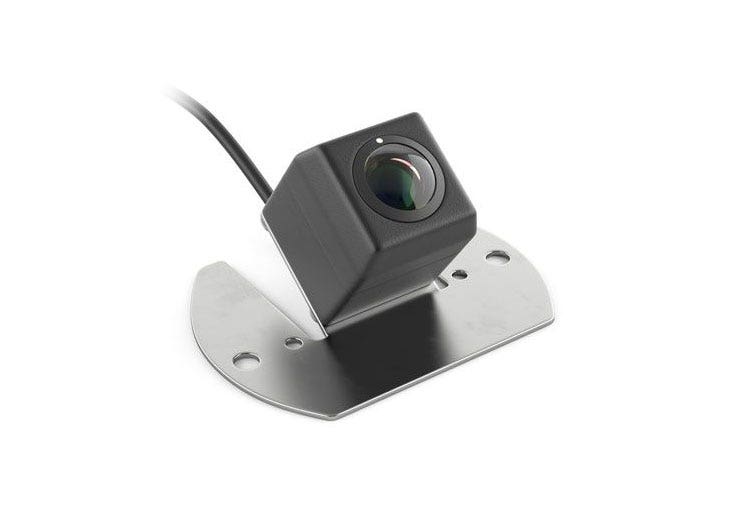

Camera

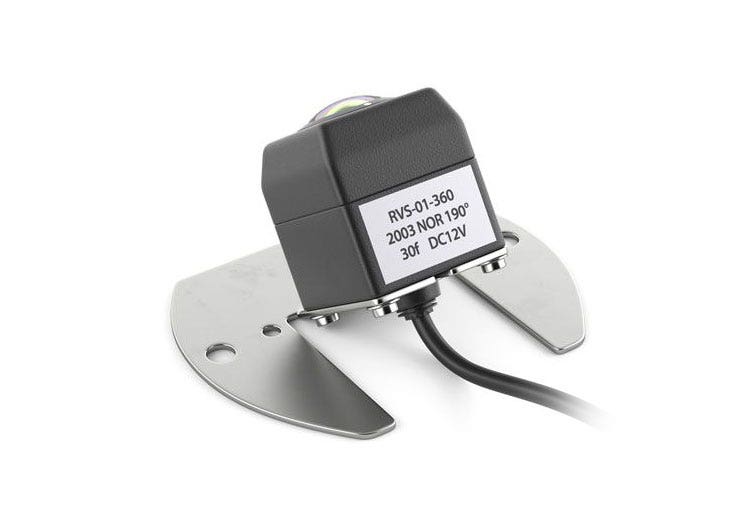

Enclosure: Die-cast aluminum ADC12 with a 304 stainless steel bracket; IP69K-rated
Dimensions: 52 x 42 x 40 mm; 2.0 x 1.7 x 1.6 in (approximate)
Sensor: 2.9 mega-pixel CMOS
Power: ECU-supplied
Voltage: 12VDC @65 mA
Focal Length: 2.8mm
Field of View (FOV): 130º (V) x 190º (H)
SNR: >80dB

Other
G-Sensor: Equipped; Built-In

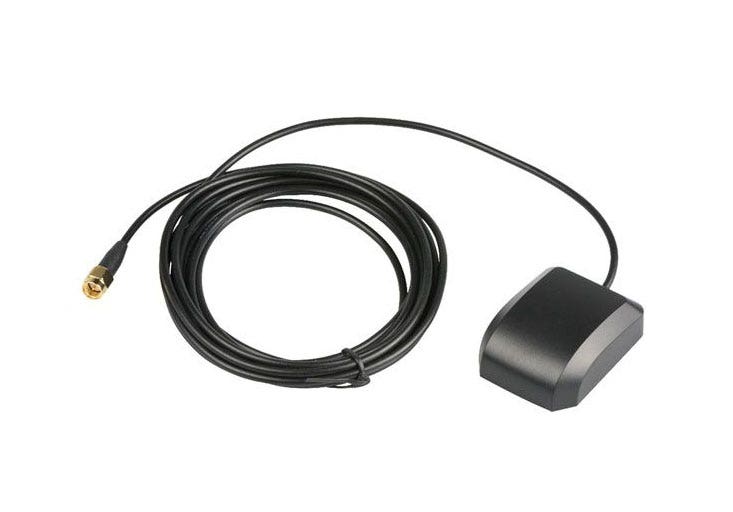

GPS: External Receiver

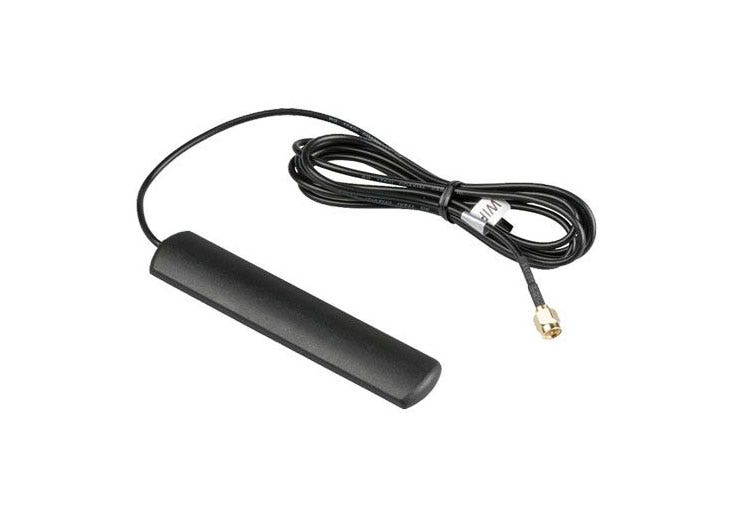

Wi-Fi: External antenna; 802.11 b/g/n/ac
Language: English / French / German / Dutch
Units of Measure: Metric / Imperial
Ports: USB / RS232C / RS485 / Can Bus
Homologation: FCC / EMark / CE
Video Player:
      HD Player (native) - with routing information
      H.264 compliant - without routing information
      Recorded video can be filtered by event types
