Kenwood DAX8000S Digital Media Receiver

Kenwood DAX8000S Digital Media Receiver

DirectReplacement OEM Replacement Solution
With the introduction of Direct Replacement Category and the adaptation of Maestro APX Parts, the Receiver is Designed to fit seamlessly into OEM dashboards with retaining OEM receiver controls and features.

Click HERE for the Compatible vehicle List

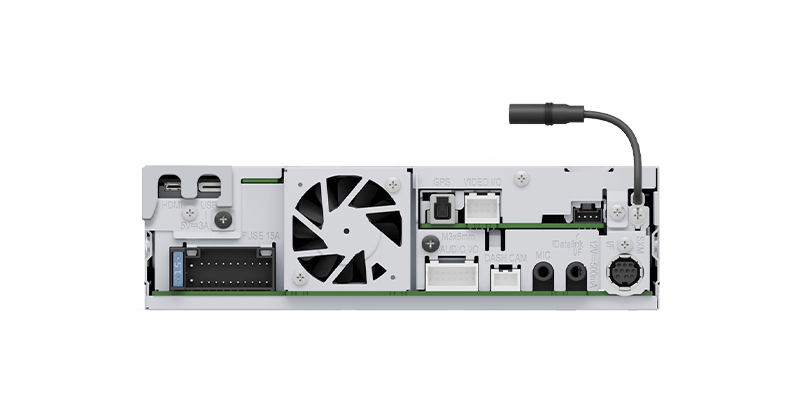

Separated Display and Chassis
The display and chassis are separated, and the chassis can be placed either vertically or horizontally, allowing for flexible installation in a variety of vehicles.

KCA-A150EX External Cable (Sold Separately)
If the cable connecting the Display and Chassis is not long enough, you can solve the problem by Connecting a 5ft (1.5m) extension cable (sold separately).

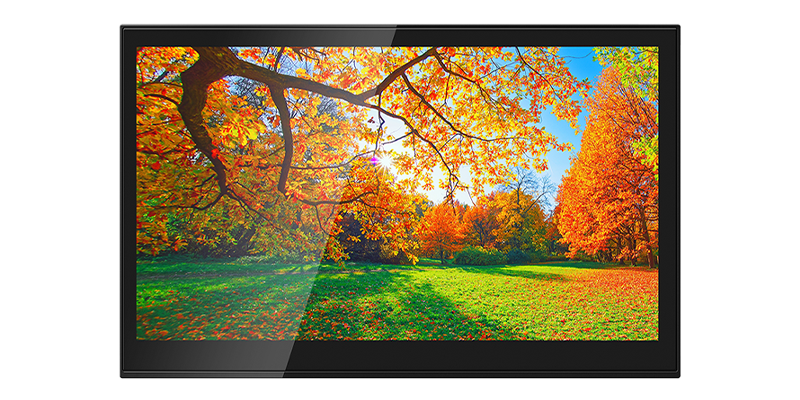

High Definition
8" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles

Wider Viewing Angle
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

Smartphone Connectivity

Apple CarPlay® – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas. For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Apple CarPlay – Split Screen Support
You can view and operate both Apple CarPlay and KENWOOD source in the same screen.

Android Auto ™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.

*Some features and devices may not be available in all countries. Subject to availability.

*Selected mobile phones only

Android Auto – Split Screen Support
You can view and operate both Android Auto and KENWOOD source in the same screen.

Wireless Mirroring for Smartphone
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Smartphone devices.

*Selected smartphones only

HDMI Mirroring for Smartphones
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 8" monitor. KCA-HD200 optional HDMI cable sold separately.

KENWOOD Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.

The Best Audio Experience

High-Resolution Audio Wireless
High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.

Parametric Equalizer
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

High Quality Audio Parts Supporting High-Resolution Audio Reproduction
To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

Digital Optical Output
Connect to a DSP for best sound quality.

Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.

Safe Driving

Enhanced Vehicle Integration
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.

*Available features vary by vehicle

Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

HD Front / Rear Camera Input
The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

Dash Cam Link Ready
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.

Additional Features

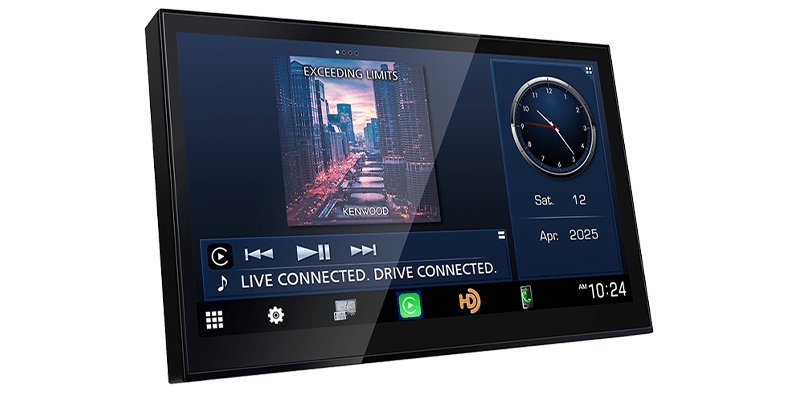

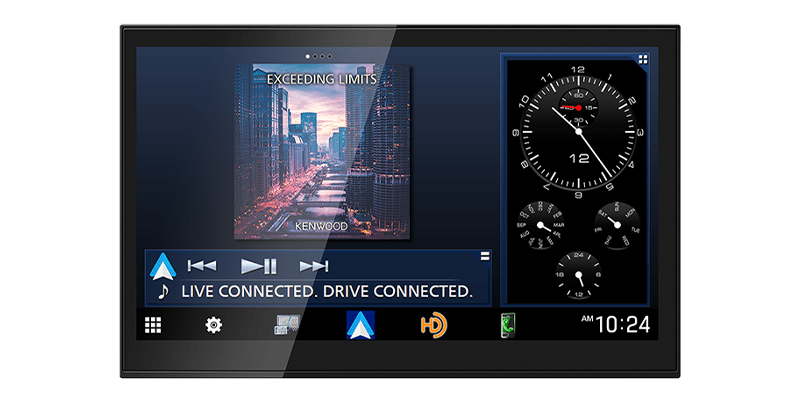

Driving Widget Home Screen
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

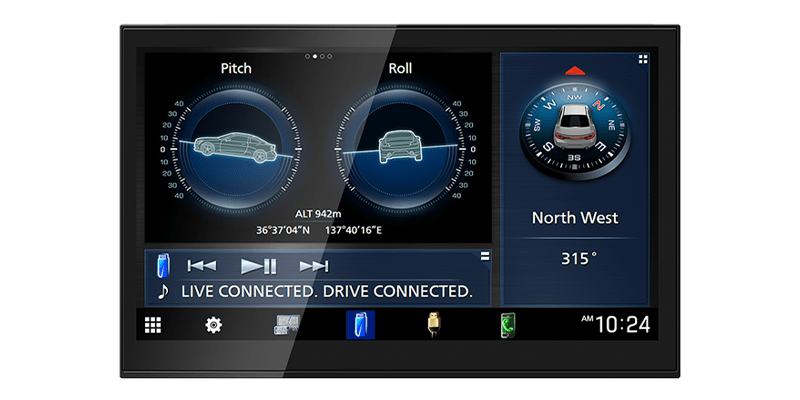

Pitch & Roll GUI
The gyro sensor accurately captures the vehicle's angle and direction and displays it on the screen even on gravel roads, mountain roads, and rough terrain.

SiriusXM Ready
(optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

SiriusXM 360L Ready
SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.

*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi.
In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.

Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

USB Type-C
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.

Specifications

Monitor
Picture size: 8.0 inches(diagonal) wide
W x H: 176.64 x 99.36 (mm), 6-15/16 x 3-15/16 (inch)
Display system: LCD panel
Drive system: TFT active matrix system
Number of pixels: 2,764,800
1280H x 720V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Back lighting: LED

USB I/F Section
Connector Type: Type-C
USB Standard: USB2.0 High Speed
File System: FAT 16/32, exFAT, NTFS
Maximum Power Supply Current: DC5V=3.0A
D/A Converter: 24/32Bit
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV

Frequency Response
192k Sampling: 20 - 88,000 Hz
96k Sampling: 20 - 44,000 Hz
48k Sampling: 20 - 22,000 Hz
44.1k Sampling: 20 - 20,000 Hz
Total harmonic distortion 1kHz: 0.01%
Signal to Noise ratio: 98.5dB
Dynamic range: 89dB

Wireless Mirroring Section
Mode: Sink
Copyright protection: HDCP2.2
Touch Control: UIBC

Wi-Fi
IEEE Standard: 802.11 a/b/g/n/ac
Frequency Range: Dual Band ( 2.4GHz / 5GHz )
Channels: Auto(1-11ch) | Auto(149,153,157,161ch)
Transfer rates (MAX):
     11a: 54 Mbps / 11b: 11 Mbps /
     11g: 54 Mbps / 11n: 300 Mbps /
     11ac: 867 Mbps

Bluetooth Section
Technology: Bluetooth Ver5.2
Frequency: 2.402 – 2.480 GHz
Maximum Communication range: Line of sight approx. 10m(32.8ft)
Audio Codec: SBC / AAC / LDAC
Multi Profile Support: Multi Profile
Profile: HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)

HDMI
Connector Type: Type-D
Input Resolution: VGA (640x480p @59.94Hz/60Hz)
480p (720x480p @59.94Hz/60Hz)
720p(1280x720p @59.94Hz/60Hz)
Input Audio Type: 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM

DSP Section

Graphics Equalizer
BAND: 13Band
frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]

2Way X'Over
HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]

3Way X'Over
HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE: -12/-18/-24[dB/Oct.]
Band PASS FILTER frequency: Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE: -12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE: -12/-18/-24[dB/Oct.]

Position
Front / Rear /Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
Gain: -8 to 0dB
Subwoofer Level: -50 to +10dB

Digital FM
Frequency Range: 87.9MHz - 107.9MHz
(Frequency step): (200kHz)
Frequency Response: 20Hz - 20kHz
(±3.0 dB)
S/N: 80dB (STEREO)

Digital AM
Frequency Range: 530kHz - 1700kHz
(Frequency step): (10kHz)
Frequency Response: 40Hz - 15kHz
(±3.0 dB)
S/N: 80dB (STEREO)

FM
Frequency Range: 87.9MHz - 107.9MHz
(Frequency step): (200kHz)
Usable sensitivity: 7.3dBf
S/N 30dB: 0.7μV/75Ω
Frequency response: 30Hz - 15kHz
S/N(dB): 70dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)

AM
Frequency Range: 530kHz - 1700kHz
(Frequency step): (10kHz)
Usable sensitivity: 30dBμ

Video
Color system of external video input: NTSC/PAL
External video input level (RCA jacks): 1 Vp-p / 75 Ohms
External video input level (Mini jacks): -
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
Analog RGB input: -

Audio
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear): 29W x 4 (4Ω,1kHz,10%THD)
Output frequency band: 20 - 88,000Hz
Preout level (V): 5V / 10kOhms
Preout impedance (Ω): =< 300 Ohms
Speaker Impedance (Ω): 4-8 Ohms
External audio max input level (RCA jacks): 2V / 22kOhms

Digital Audio Out
Connector Type: OPTICAL
Output frequency: 48kHz / 96kHz, 24bit
Linea PCM

General
Operating voltage: 12V DC Car Battery
Weight: 3.1lb
Dimensions WxHxD: 7 x 2 x 4-1/8 inch
Weight: 1.8lb
Monitor Dimensions WxHxD: 7-1/2 x 4-3/4 x 1-1/8 inch
Weight: 2.4lb
