Overview
Overview
About This Product
Description

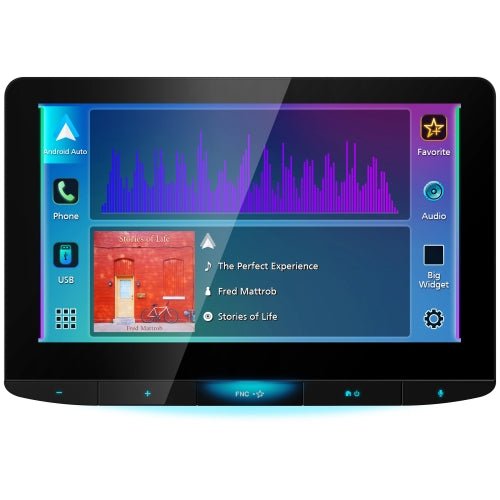

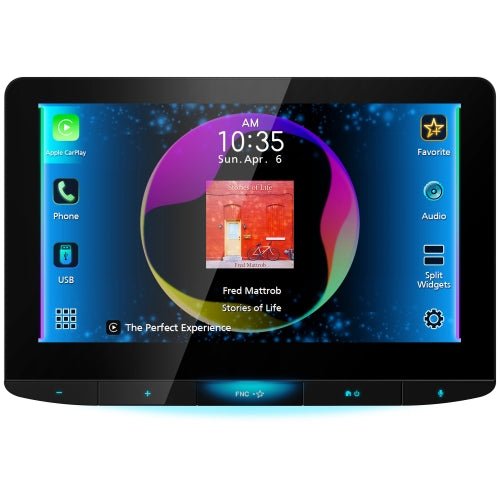

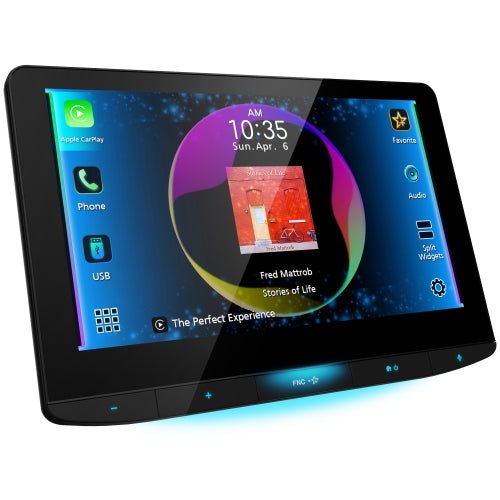

JVC KW-Z1001W Digital Media Receiver
The JVC KW-Z1001W is a premium digital media receiver designed around a large, floating 10.1-inch High-Definition (1280 x 720) capacitive touchscreen. Built with optical bonding technology for high visibility and reduced glare, the screen features a fully adjustable 4-way position layout to ensure a clean fit in most vehicle dashboards.The JVC KW-Z1001W is a premium digital media receiver designed around a large, floating 10.1-inch High-Definition (1280 x 720) capacitive touchscreen. Built with optical bonding technology for high visibility and reduced glare, the screen features a fully adjustable 4-way position layout to ensure a clean fit in most vehicle dashboards.
Wireless/Wired Apple CarPlay
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Apple CarPlay – SPLIT SCREEN SUPPORT
You can view and operate both Apple CarPlay and JVC source in the same screen.
Android Auto™ – CONNECT WIRELESSLY OR VIA USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

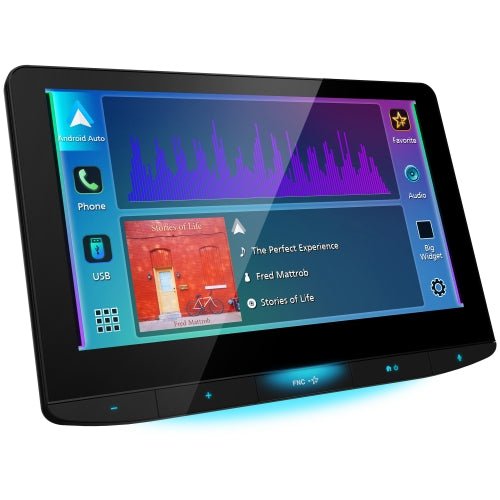

Android Auto – SPLIT SCREEN SUPPORT
You can view and operate both Android Auto and JVC source in the same screen.
Wireless Mirroring for Compatible Smartphones
Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
*Selected models only
HDMI Mirroring for Compatible Smartphones
Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
High Definition Display (1280 x 720)
The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.
Optical Bonding Technology
The optical bonding technology minimizes the refractive light index by bonding the liquid crystal module and clear panel. It suppresses the reflection of the screen and maintains high visibility. In addition, since optical bonding does not have an air layer between the liquid crystal module and the clear panel, display visibility is not impaired by internal condensation, further enhancing its durability.

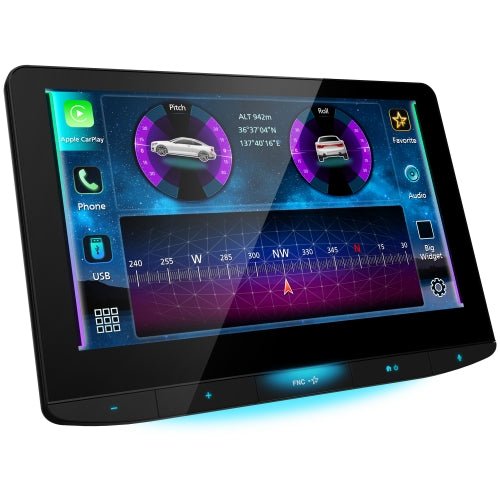

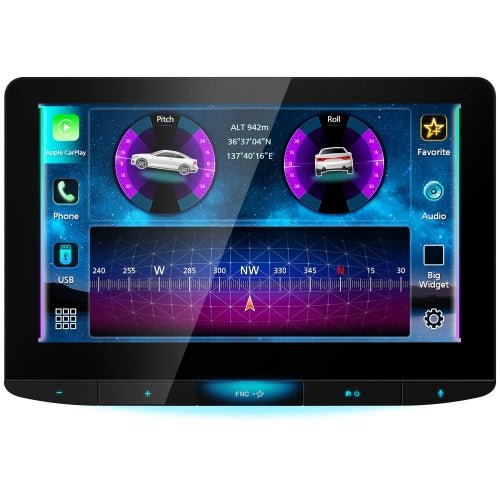

Dynamic GUI
Various information including time, photos, album art images, or iDatalink Maestro™ and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.
Live Wallpaper
Synchronize background visual and color with music.
Adjustable 4-Way Display Position
Fully adjustable display allows you to change the height, angle, and depth for easy vehicle fitment.
Height: 4 steps（0, 33/64, 1-1/32, 1-17/32 inch)
Tilt: -10˚ ~ +45˚
Depth: 2 steps（0, 25/32 inch)
Left / Right : 3 steps（-1-3/16, 0, 1-3/16 inch)
Safe Driving
iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive Data Solutions. To find an authorized dealer please visit [http://maestro.idatalink.com/](http://maestro.idatalink.com/)
HD Front / Rear Camera Input
An optional High Definition camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.
4-Camera Input
Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.
Sound Optimization
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting
Internet Radio / Digital Radio
Siriusxm Ready - (optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Siriusxm 360L Ready
SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.
*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi. In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.
Built-In Hd Radio Tuner
HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.
General
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
4.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Detachable USB with High Current 3.0A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 3.0A. Single rear USB port with detachable extension cable included.
*Compatibility depends on the smartphone
JVC Portal App Compatible
Display the image data saved on your smartphone on the KW-Z1001W with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.
JVC Remote Control App
Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.
Remote control (RM-RK259) is optionally available.
Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Specifications
Monitor
High Definition Monitor: Yes
Screen Size: 10.1"W HD Screen
Touch Panel: Capacitive / Bonding
Gesture Touch Control: Yes
Key Illumination Color: Variable
Dimmer: Yes
Multilingual Display: Yes[4]
Live Wallpaper: Yes
Media Playback
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
AVI/MKV Compatible: USB
Bluetooth Control
Built-in Bluetooth[1]: Yes (Version 5.2, Wired-Mic included)
Hands Free Call: Yes (HFP1.7)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
5 BT-Audio Connection: Yes
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes
Wi-Fi Control
Built-in Wi-Fi: Yes
Android Control
Android Auto[2]: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via WiFi)
iPod/iPhone Control
Apple CarPlay[3]: Yes (via Wi-Fi or USB)
USB
USB Port: x 1 (Type-C)
Position: Rear
USB Power Supply: 5V/3A(USB type-C Current 3A) or 5V/1.5A(USB BC1.2)
Radio Tuner
Built-in HD Radio: Yes
SiriusXM Ready: Yes *SiriusXM 360L Ready
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Auto Memory Entry: Yes
FM
Frequency Range: 87.9 - 107.9MHz
AM
Frequency Range: 530-1,700kHz
Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (8Preset + 4user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
3-Way X'over: Yes
High-Resolution Audio: Yes
K2 Technology: Yes
Space Enhancement: Yes
Sound Response: Yes
Sound Lift: Yes
Volume Link EQ: Yes
Time Alignment: Yes

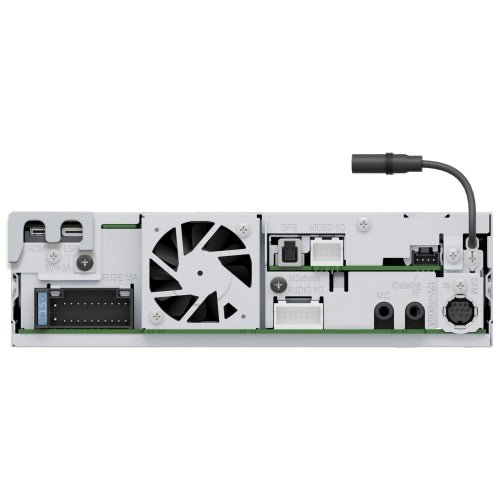

Inputs and Outputs
AV Input: RCA (AV-IN or Camera Input switchable)
Video Out: RCA
HDMI Terminal: Yes
Camera Input: Max 4 inputs (including AV- IN's assignable input)
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance: 4V
Subwoofer Output with Level/Frequency Control: Yes
General
iDatalink Maestro Ready: Yes
JVC Portal App: Yes
Remote Control Application: Yes
Face Type
Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote Control: Optional (RM-RK259K)
Steering Remote Control Ready: Yes
Dimensions (W x H x D)
Chassis: 7" x 2" x 6-1/4" (178 x 50 x 158 mm)
Monitor: 10-5/16" x 7-1/8" x 1-9/16" (262 x 176 x 41 mm)
Weight
Chassis: 2.9lbs (1.3kg)
Monitor: 2.4lbs (1.1kg)
Unit weight in individual package: 7.72lbs (3.5kg)
[1]Available functions depend on mobile phone.
[2]Compatible Android phone and compatible active data plan required.
[3][iPhone] SE(2nd G), X, XR, XS, XS Pro, 11, 11 Pro, 11 Pro Max, 12, 12 mini, 12 Pro , 12 Pro Max, 13, 13 mini , 13 Pro, 13 Pro Max, 14, 14 Plus, 14 Pro, 14 Pro Max, SE(3rd G), 15, 15 Plus, 15 Pro, 15 Pro Max The service may not be available in certain countries.
[4]Multilingual (English / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Chinese (Simplified) /Chinese (Traditional) / Thai / Turkish / Arabic / Persian / Hebrew / Greece / Malaysia / Indonesia / Polish / Czech / Hungarian)
Recently Viewed
Customers Also Bought
BOOK A FREE CONSULTATION
Want to know if this product is compatible with your car? We’ll tell you for free!
Overview
Overview
About This Product
Description
JVC KW-Z1001W Digital Media Receiver
The JVC KW-Z1001W is a premium digital media receiver designed around a large, floating 10.1-inch High-Definition (1280 x 720) capacitive touchscreen. Built with optical bonding technology for high visibility and reduced glare, the screen features a fully adjustable 4-way position layout to ensure a clean fit in most vehicle dashboards.The JVC KW-Z1001W is a premium digital media receiver designed around a large, floating 10.1-inch High-Definition (1280 x 720) capacitive touchscreen. Built with optical bonding technology for high visibility and reduced glare, the screen features a fully adjustable 4-way position layout to ensure a clean fit in most vehicle dashboards.
Wireless/Wired Apple CarPlay
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Apple CarPlay – SPLIT SCREEN SUPPORT
You can view and operate both Apple CarPlay and JVC source in the same screen.
Android Auto™ – CONNECT WIRELESSLY OR VIA USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
Android Auto – SPLIT SCREEN SUPPORT
You can view and operate both Android Auto and JVC source in the same screen.
Wireless Mirroring for Compatible Smartphones
Wireless Mirroring for Android Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
*Selected models only
HDMI Mirroring for Compatible Smartphones
Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
High Definition Display (1280 x 720)
The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.
Optical Bonding Technology
The optical bonding technology minimizes the refractive light index by bonding the liquid crystal module and clear panel. It suppresses the reflection of the screen and maintains high visibility. In addition, since optical bonding does not have an air layer between the liquid crystal module and the clear panel, display visibility is not impaired by internal condensation, further enhancing its durability.
Dynamic GUI
Various information including time, photos, album art images, or iDatalink Maestro™ and more, can be displayed on the home screen in a big, easy-to-view way. Swiping the monitor with two fingers lets you split the screen or change the information window.
Live Wallpaper
Synchronize background visual and color with music.
Adjustable 4-Way Display Position
Fully adjustable display allows you to change the height, angle, and depth for easy vehicle fitment.
Height: 4 steps（0, 33/64, 1-1/32, 1-17/32 inch)
Tilt: -10˚ ~ +45˚
Depth: 2 steps（0, 25/32 inch)
Left / Right : 3 steps（-1-3/16, 0, 1-3/16 inch)
Safe Driving
iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive Data Solutions. To find an authorized dealer please visit [http://maestro.idatalink.com/](http://maestro.idatalink.com/)
HD Front / Rear Camera Input
An optional High Definition camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.
4-Camera Input
Enables users to add a reverse (rear facing) camera, front camera and an additional 2 blindspot cameras, further enhancing driver safety and convenience.
Sound Optimization
High-Resolution Audio Playback
You can enjoy playback of 96kHz/24bit audio which contains about 3 times the musical information of music CDs (44.1kHz/16bit), or even 192kHz/24bit High-Resolution Audio files with their approx. 6.5 times data volume. With high sound quality approaching the original master recording itself, you will experience the presence and ambience of a tune the way CD simply cannot.
K2 Technology for Enhanced Digital Sound Quality
K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192kHz. It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting
Internet Radio / Digital Radio
Siriusxm Ready - (optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Siriusxm 360L Ready
SiriusXM 360L is the latest-generation audio platform from SiriusXM, combining satellite radio with internet streaming. SiriusXM 360L offers over 100 music channels, a vast library of on-demand content, and a live sports category where you can listen to game broadcasts and sporting events. It also features personalized "For You" recommendations, a Spotlight section, and easy access to related content.
*To enjoy 360L contents, it is necessary that the device is connected to the internet and H/U is connected with the device by Wi-Fi. In addition, “360L IP Connection” in SETUP has to be set to ON.
*SiriusXM 360L requires a dedicated WiFi connection. Other Apps that require a WiFi connection may not work while SiriusXM 360L is in use.
Built-In Hd Radio Tuner
HD Radio is a Digital technology that allows a radio station to transmit more information in the same radio wave, enabling higher quality sound and additional content. HD Radio technology makes AM Stations have FM Station-like sound quality, while FM Stations are broadcast with CD-like sound quality. Unlike typical FM or AM transmission, HD Radio has crystal clear reception with low noise and no audio distortion.
General
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
4.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 4.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Detachable USB with High Current 3.0A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 3.0A. Single rear USB port with detachable extension cable included.
*Compatibility depends on the smartphone
JVC Portal App Compatible
Display the image data saved on your smartphone on the KW-Z1001W with JVC Portal App now available for both iOS and Android. You can set your favorite image on the wallpaper of the receiver and enjoy the slide show.
JVC Remote Control App
Control the music directly from the smartphone using simple finger gestures with "JVC Remote S" app* now available for both iOS and Android.
Remote control (RM-RK259) is optionally available.
Display your smartphone screen on the KW-Z1001W’s display via an HDMI cable and third party adapter.
*KS-U70, optional HDMI cable and smartphone specific third party adapter are required (sold separately).
Specifications
Monitor
High Definition Monitor: Yes
Screen Size: 10.1"W HD Screen
Touch Panel: Capacitive / Bonding
Gesture Touch Control: Yes
Key Illumination Color: Variable
Dimmer: Yes
Multilingual Display: Yes[4]
Live Wallpaper: Yes
Media Playback
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
AVI/MKV Compatible: USB
Bluetooth Control
Built-in Bluetooth[1]: Yes (Version 5.2, Wired-Mic included)
Hands Free Call: Yes (HFP1.7)
2 Phones Full-Time Connection: Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
5 BT-Audio Connection: Yes
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes
Wi-Fi Control
Built-in Wi-Fi: Yes
Android Control
Android Auto[2]: Yes (via Wi-Fi or USB)
Mirroring for Android: Yes (via WiFi)
iPod/iPhone Control
Apple CarPlay[3]: Yes (via Wi-Fi or USB)
USB
USB Port: x 1 (Type-C)
Position: Rear
USB Power Supply: 5V/3A(USB type-C Current 3A) or 5V/1.5A(USB BC1.2)
Radio Tuner
Built-in HD Radio: Yes
SiriusXM Ready: Yes *SiriusXM 360L Ready
Radio Broadcast Data System (RBDS): Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Auto Memory Entry: Yes
FM
Frequency Range: 87.9 - 107.9MHz
AM
Frequency Range: 530-1,700kHz
Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (8Preset + 4user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
3-Way X'over: Yes
High-Resolution Audio: Yes
K2 Technology: Yes
Space Enhancement: Yes
Sound Response: Yes
Sound Lift: Yes
Volume Link EQ: Yes
Time Alignment: Yes
Inputs and Outputs
AV Input: RCA (AV-IN or Camera Input switchable)
Video Out: RCA
HDMI Terminal: Yes
Camera Input: Max 4 inputs (including AV- IN's assignable input)
Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
Pre-output Level/Impedance: 4V
Subwoofer Output with Level/Frequency Control: Yes
General
iDatalink Maestro Ready: Yes
JVC Portal App: Yes
Remote Control Application: Yes
Face Type
Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
Wireless Remote Control: Optional (RM-RK259K)
Steering Remote Control Ready: Yes
Dimensions (W x H x D)
Chassis: 7" x 2" x 6-1/4" (178 x 50 x 158 mm)
Monitor: 10-5/16" x 7-1/8" x 1-9/16" (262 x 176 x 41 mm)
Weight
Chassis: 2.9lbs (1.3kg)
Monitor: 2.4lbs (1.1kg)
Unit weight in individual package: 7.72lbs (3.5kg)
[1]Available functions depend on mobile phone.
[2]Compatible Android phone and compatible active data plan required.
[3][iPhone] SE(2nd G), X, XR, XS, XS Pro, 11, 11 Pro, 11 Pro Max, 12, 12 mini, 12 Pro , 12 Pro Max, 13, 13 mini , 13 Pro, 13 Pro Max, 14, 14 Plus, 14 Pro, 14 Pro Max, SE(3rd G), 15, 15 Plus, 15 Pro, 15 Pro Max The service may not be available in certain countries.
[4]Multilingual (English / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Chinese (Simplified) /Chinese (Traditional) / Thai / Turkish / Arabic / Persian / Hebrew / Greece / Malaysia / Indonesia / Polish / Czech / Hungarian)
