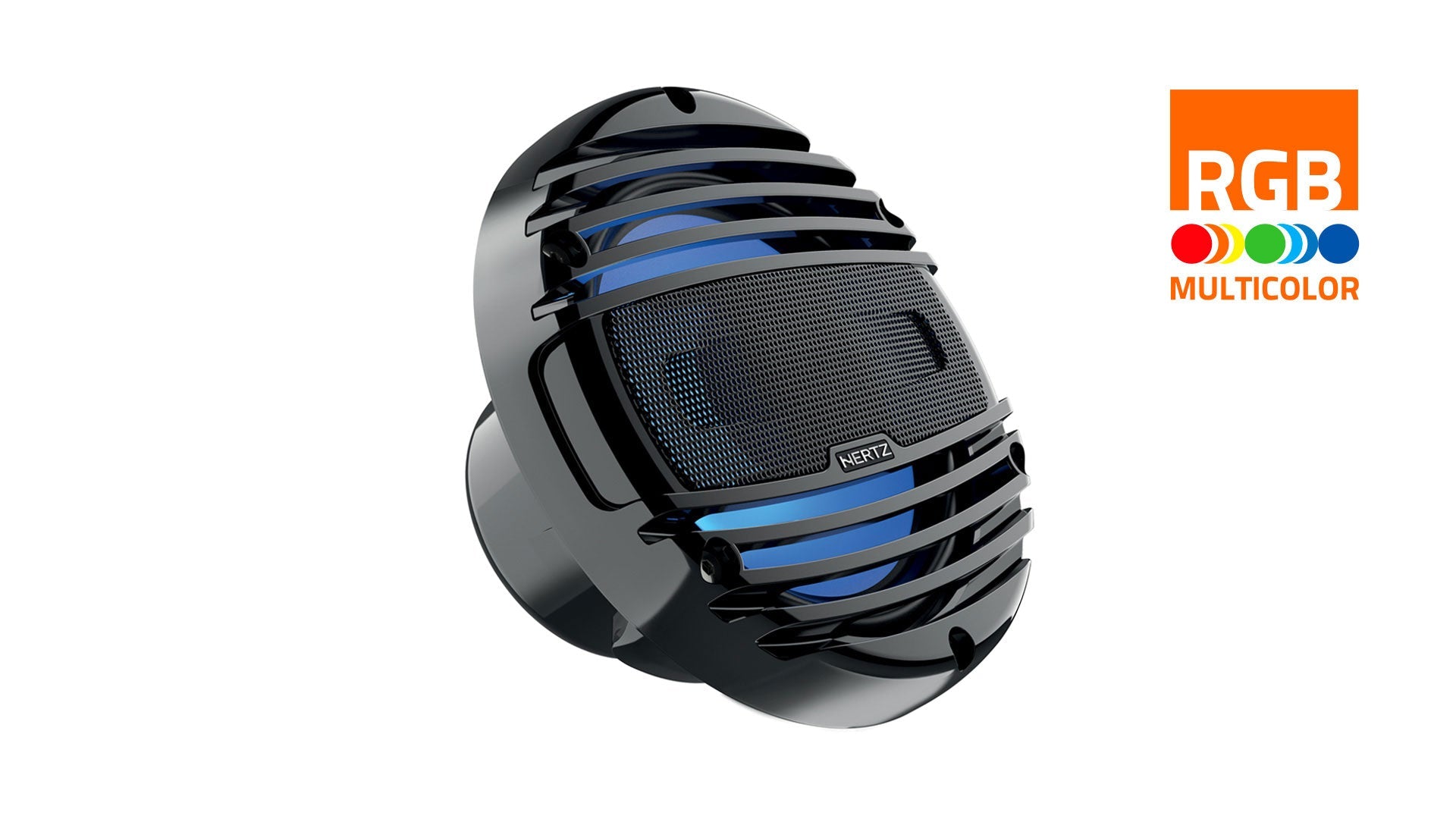

Hertz HMX 6.5 LD-TW 6.5" LED Marine Coaxial Speakers

Hertz HMX 6.5 LD-TW 6.5" LED Marine Coaxial Speakers

HMX 6.5 LD-TW hi-performance marine coaxial speakers with RGB LEDs lighting option, also available in the white option HMX 6.5 LD-TC, feature a tone-on-tone front mesh matching the grille colour. The tweeter acoustic lens optimizes off-axis dispersion and maximized SPL.

The RGB LED lighting circuit is integrated below the tweeter, protected by a Polypropylene transparent cover acting as light diffusion. The UV-resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features

• Integrated RGB LED lighting to enhance your experience in combination with the HM RGB 1 BK accessory.
• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
• 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
• Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
• Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
• Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
• FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
• Sealed built-in crossover with resettable solid-state tweeter protection circuit.
• Gold-plated corrosion resistant terminals.

Technical Specifications
Component: HI-END LED COAX
Size mm (in.): 165 (6.5)
Power Handling - Continuous W: 75
Power Handling - Peak W: 150
Impedance Ohm: 4
Depth mm (in.): 95,6 (3.76)
Tweeter diaphragm mm (in.): 36 (1.4)
Woofer Voice Coil Ø mm (in.): 25 (1)
Tweeter Voice Coil Ø mm (in.): 20 (0.8)
Frequency Response Hz: 50 ÷ 25k
Woofer Magnet size D x d x h mm (in.): 78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.): 19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.): 1 (2.2)
Woofer Magnet: High density flux ferrite
Tweeter Magnet: Neodymium
Cone: Polypropylene with UV inhibitors
Dome: PEI
Xmech mm (in.): ±6,65 (0.26)

Electro-acoustic Specifications
D mm: 125
Re Ohm: 3,5
Fs Hz: 65
Le mH: 0,53
Vas I: 8,8
Mms g: 14
Cms mm/N: 0,4
BL T*m: 5,2
Qts: 0,7
Qes: 0,75
Qms: 11,5
Spl dB: 89

Physical Specifications

A: 172,2 mm: 6.78 in.
B: 128 mm: 5.04 in.
C: 95,6 mm: 3.76 in.
D: 69 mm: 2.72 in.
F: 26,6 mm: 1.05 in.

Frequency Response
