Audison SR-1.500.2 Subwoofer Amplifier
Audison SR-1.500.2 Subwoofer Amplifier
In stock
Earn 449 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.
Installation Service
Available at all Car Toys locations
Our certified installers are true automotive enthusiasts. Their work is their passion and for jobs big or small, simple or complex, there's no better way to go.
In stock
Audison SR-1.500.2 Subwoofer Amplifier
Earn 449 Car Toys Points
Car Toys Points Program
Become a member and earn points & exclusive rewards every time you shop. Redeemable online only.
Overview
Overview
About This Product
Description

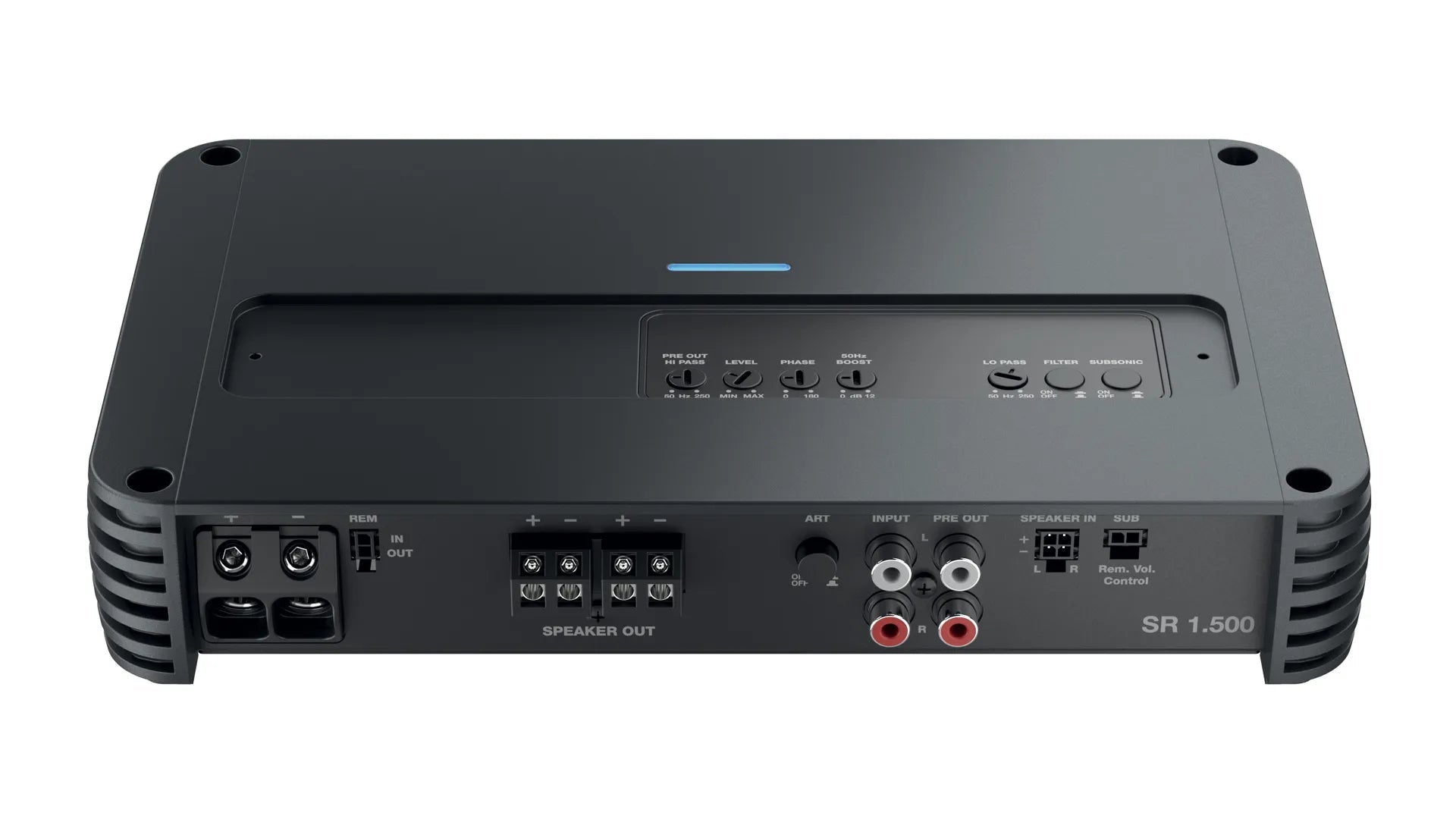

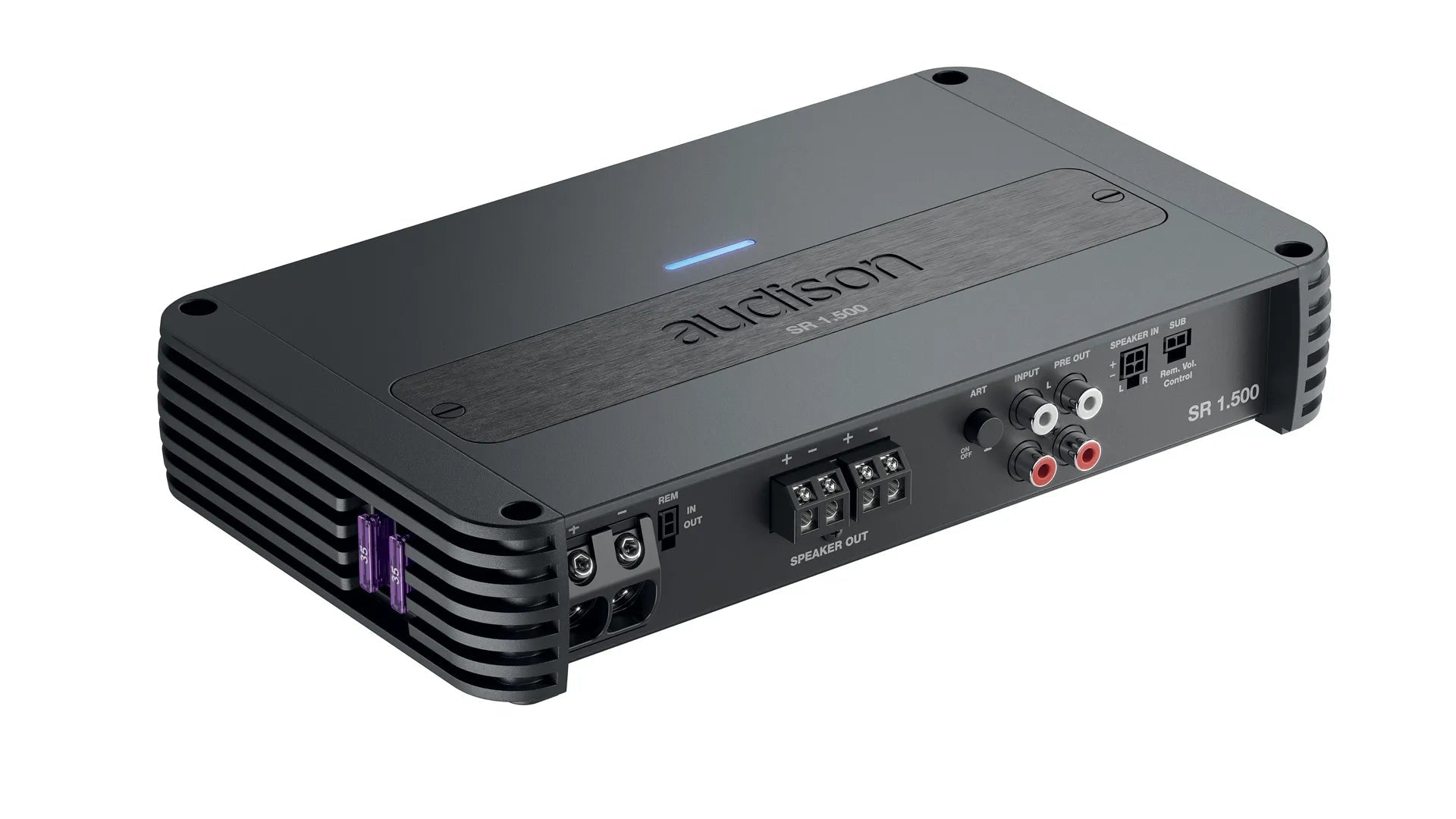

Audison SR-1.500.2 Subwoofer Amplifier
The Audison SR 1.500 is a 1-ohm stable mono amplifier with a built-in crossover featuring compact dimensions and an impressive RMS power of 1000 W.
Features
- Elegant and functional design with rounded corners to minimize space, facilitating installation.
- Built-in USS (Universal Speakers Simulator).
- Full built-in crossover section.
- Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / +6 dB) to your musical preference.
- Balanced high-level inputs for connecting to the OEM head unit speaker output.
- Low-level RCA for after-market speakers.
- ART (Automatic Remote On/Off) function.
- Remote IN / OUT socket to allow control of multiple amplifiers.
- PRE-OUT allows for system expansion.
Specifications
Amplifier Tech Data
Channels: 1
Class: D-Class
Hi Level Input: Yes
Low Level Input: Yes
Digital Input: No
Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
Operating power supply voltage: 6.5 ÷17 VDC
Idling current: 0.8 A
Idling current when off: 0.02 mA
Consumption @ 14.4 VDC, 1Ω, Max Musical Power: 40 A
Remote OUT: 6.5 ÷ 15 VDC (150 mA)
Remote IN: 6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 ÷ 7 VDC
Amplifier Stage
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.1 %
Bandwidth A: (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz
S/N ratio A: (A weighted @ 1 V): 100 dBA
Damping factor A: > 300
Input sensitivity Pre-In: 0.2 ÷ 5 VRMS
Input sensitivity Speaker-In: 0.8 ÷ 20 VRMS
Total Power RMS: 1000 W
Minimum load impedance: 1Ω
Output Power (RMS) @14.4 VDC, 1% THD:
1Ch 500 W x 1 (4Ω)
1Ch 800 W x 1 (2Ω)
1Ch 1000 W x 1 (1Ω)
Adjustable Crossover: No
CEA Specifications
Output power @ 4Ω, 1% THD+N, 14.4 V: 500 W 1 CH
SN ratio (ref. 1W output): 75 dBA
Inputs
Input Type: Pre-In / Speaker-In
Filters Outputs: PRE OUT Hi-Pass filtered 50 ÷ 250Hz @ 12 dB/Oct.
Filter Pass A: Filters: Full LP 50 ÷ 250Hz @ 24 dB/Oct.
Inputs/Outputs Phase: (0 ÷ 180) deg
Inputs/Outputs Bass Boost: (0 ÷12) dB
Inputs/Outputs Subsonic: 25 Hz @ 24 dB/Oct.
Remote Sub Volume: (-20 ÷ 6) dB
Other
Weight: 2.23 kg
Dimensions
Dimension A: 264 mm
Dimension B: 234 mm
Dimension C: 155 mm
Dimension D: 135 mm
Dimension E: 47.5 mm
- 500 Watts x 1 @ 4 Ohm
- 800 Watts x 1 @ 2 Ohm
- 1000 Watts x 1 @ 1 Ohm
