Audison AVK 6A P II Voce 6.5" Component Speakers

Audison AVK 6A P II Voce 6.5" Component Speakers

The Audison VOCE II AVK 6A P II system, engineered for dynamic performance, integrates the AV 1.1 II Hi-Res Tweeter and AV 6.5 P II Mid-Bass component. This combination achieves extraordinary power handling up to 150W RMS, attributed to the 1.6 in. (40 mm) CCAW voice coil that ensures exceptional durability and dynamic response. The system excels in delivering powerful mid-bass performance, capturing the full essence of music with clarity and precision. Enhanced installation flexibility is provided by OEM-style and Faston connectors, ensuring seamless integration into any vehicle setup.

Give Sound Its True Voice
Audison Voce II, the second generation of our iconic VOCE speakers, challenged us—to rethink how we design, test, and manufacture speakers. We’ve revamped materials, supply chains, assembly techniques, and packaging. Our goal was to “unlearn” to innovate and to “reinforce our expertise” where we knew we were on the right track. This dedication ensures that every aspect of VOCE II not only meets but exceeds the sophisticated demands of today’s car audio enthusiasts.

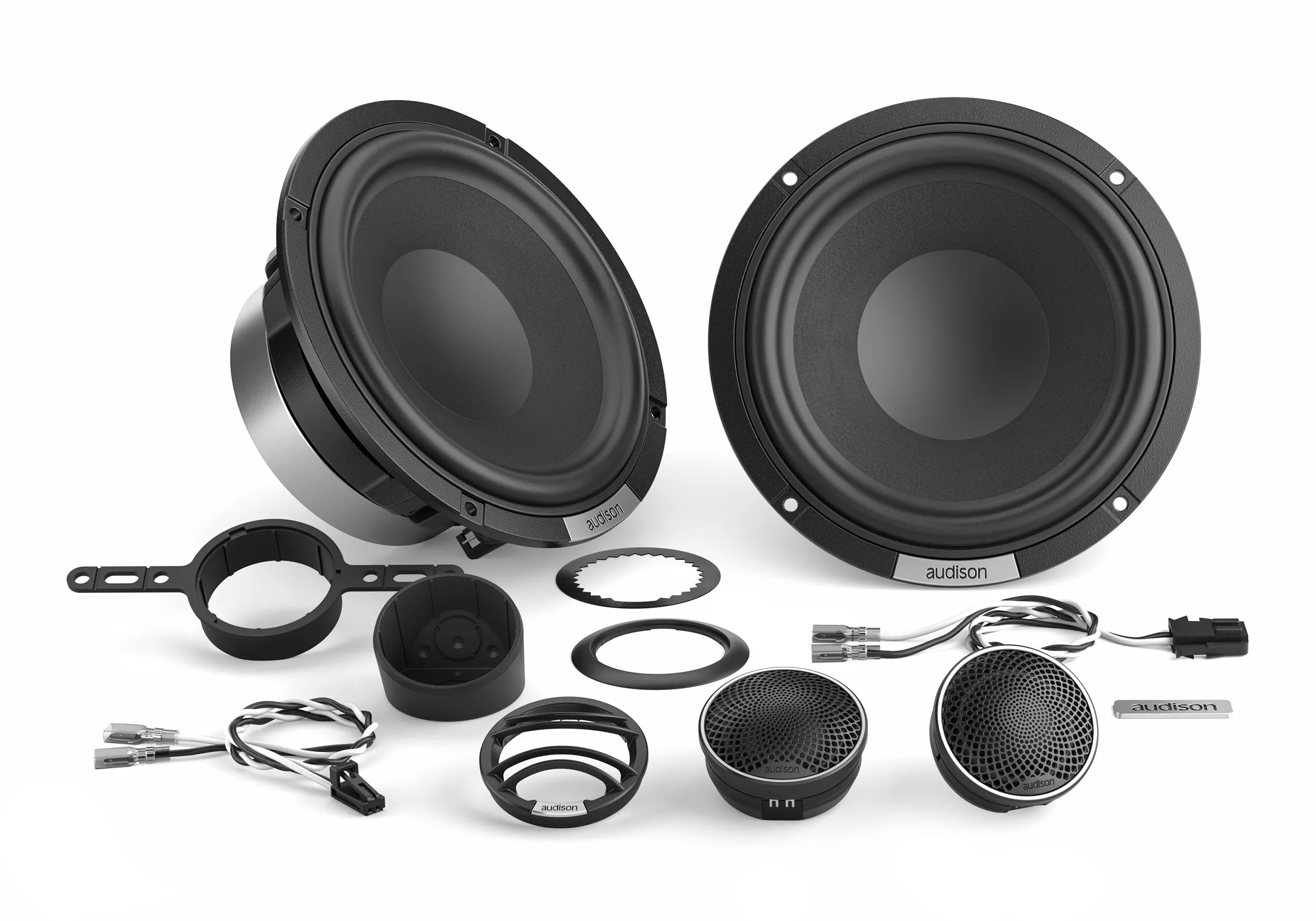

AVK 6A P II 2-way active system
The AVK 6A P II is designed to be the ideal partner for modern DSPs, capable of responding to even the slightest adjustments in any parameter. The extended frequency response and flexibility offered by the AV 1.1 II and AV 6.5 P II allow crossover points to be set within a wide range, perfectly adapting to the user’s personal preferences. Thanks to the precision of these drivers, every sound detail can be finely tuned to ensure a tailored listening experience without compromise.

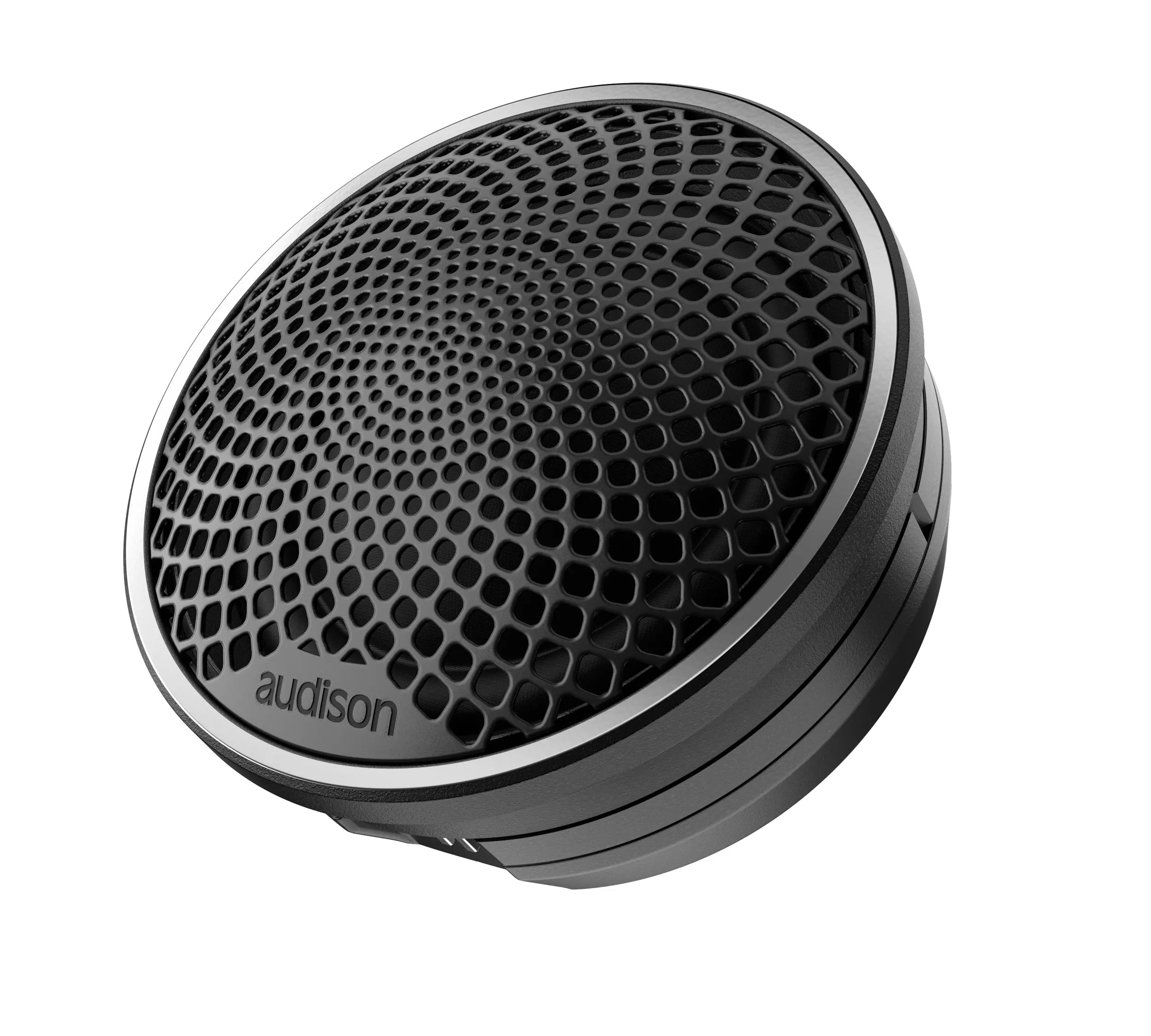

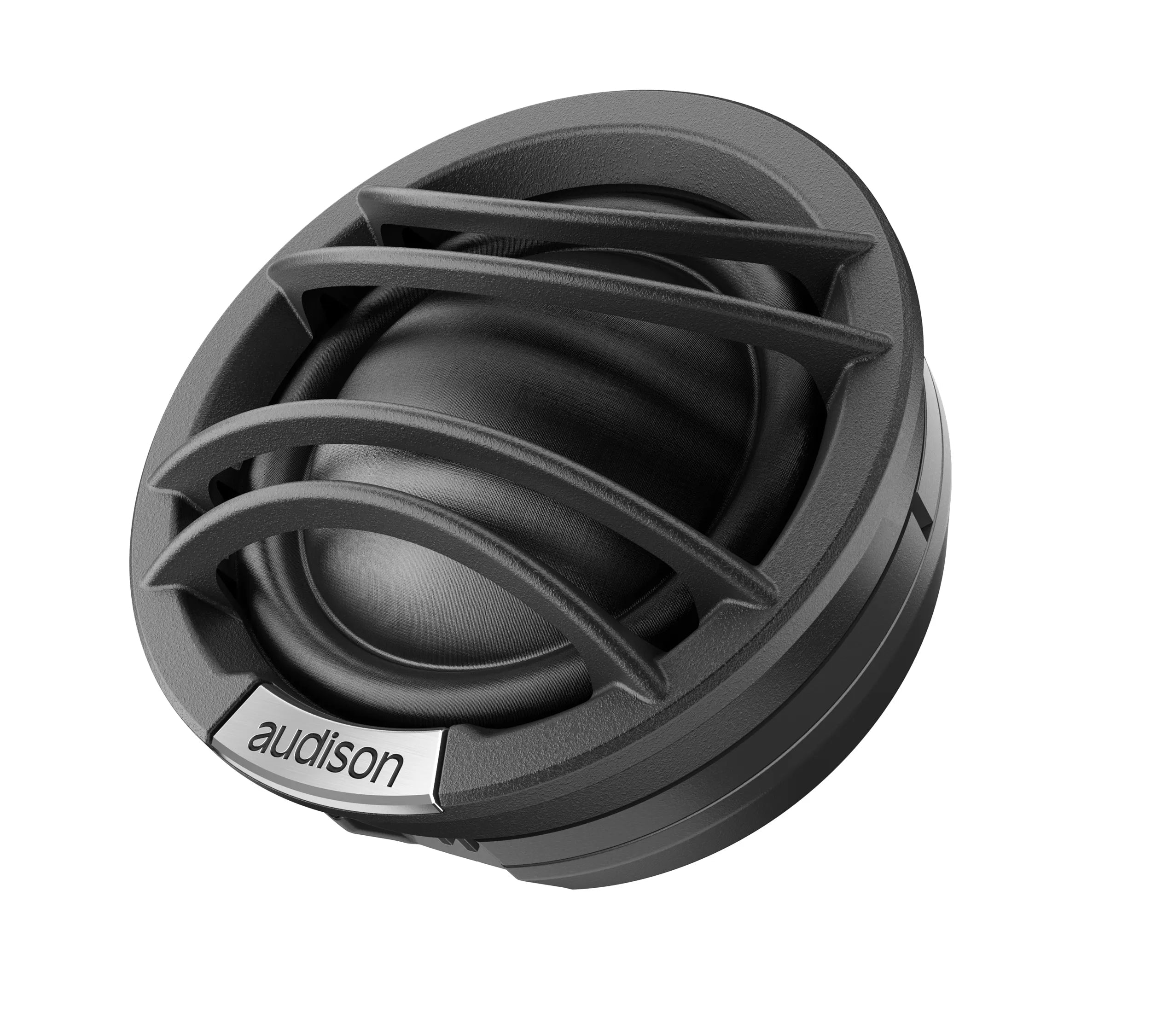

AV 1.1 II Tweeter - Pure Performance and Versatile Installation
The system includes the AV 1.1 II tweeter, dedicated to delivering crystal-clear high frequencies. With Hi-Res Audio certification and the ability to extend beyond 40 kHz, this tweeter ensures detailed and precise reproduction, making it ideal for high-resolution audio content. This exceptional high-frequency extension enables the tweeter to offer optimal off-axis dispersion, making it perfect for cabin installations where listeners are often not directly aligned with the speakers. The AV 1.1 II is also equipped with AIF (Any Install Faceplate) technology, simplifying installation with a range of accessories, and comes with both mesh and spoke grilles to offer maximum flexibility in aesthetics and performance.

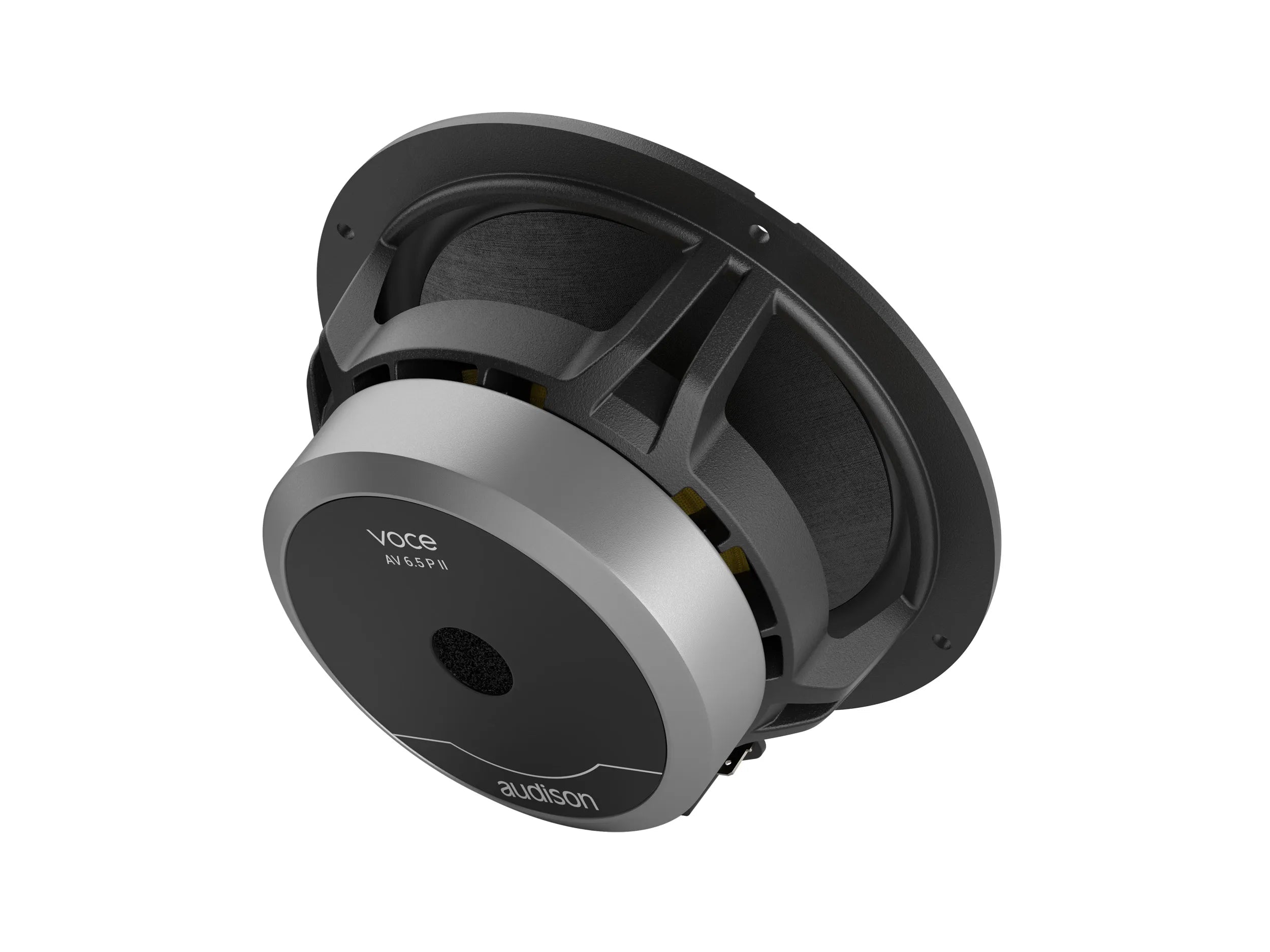

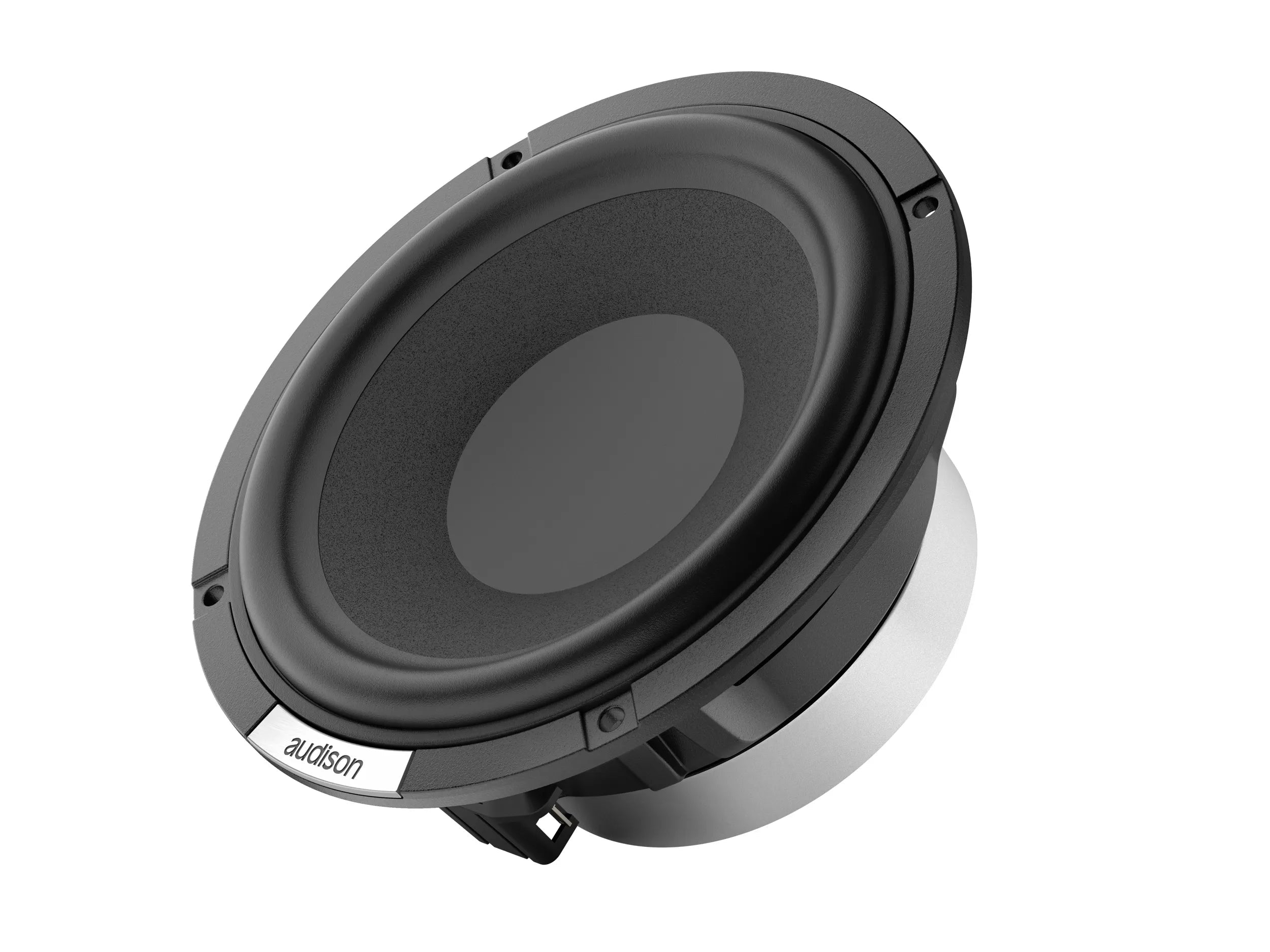

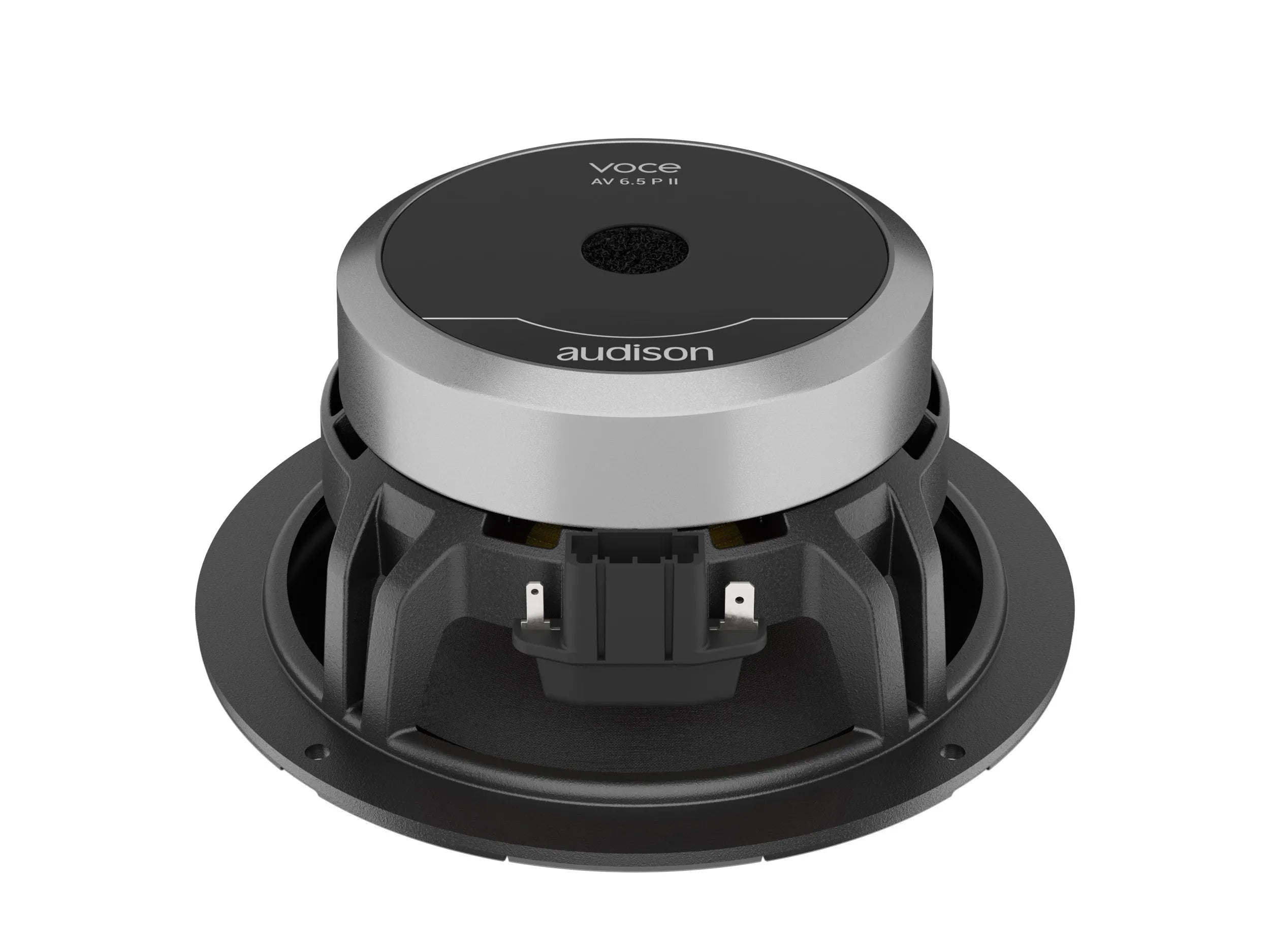

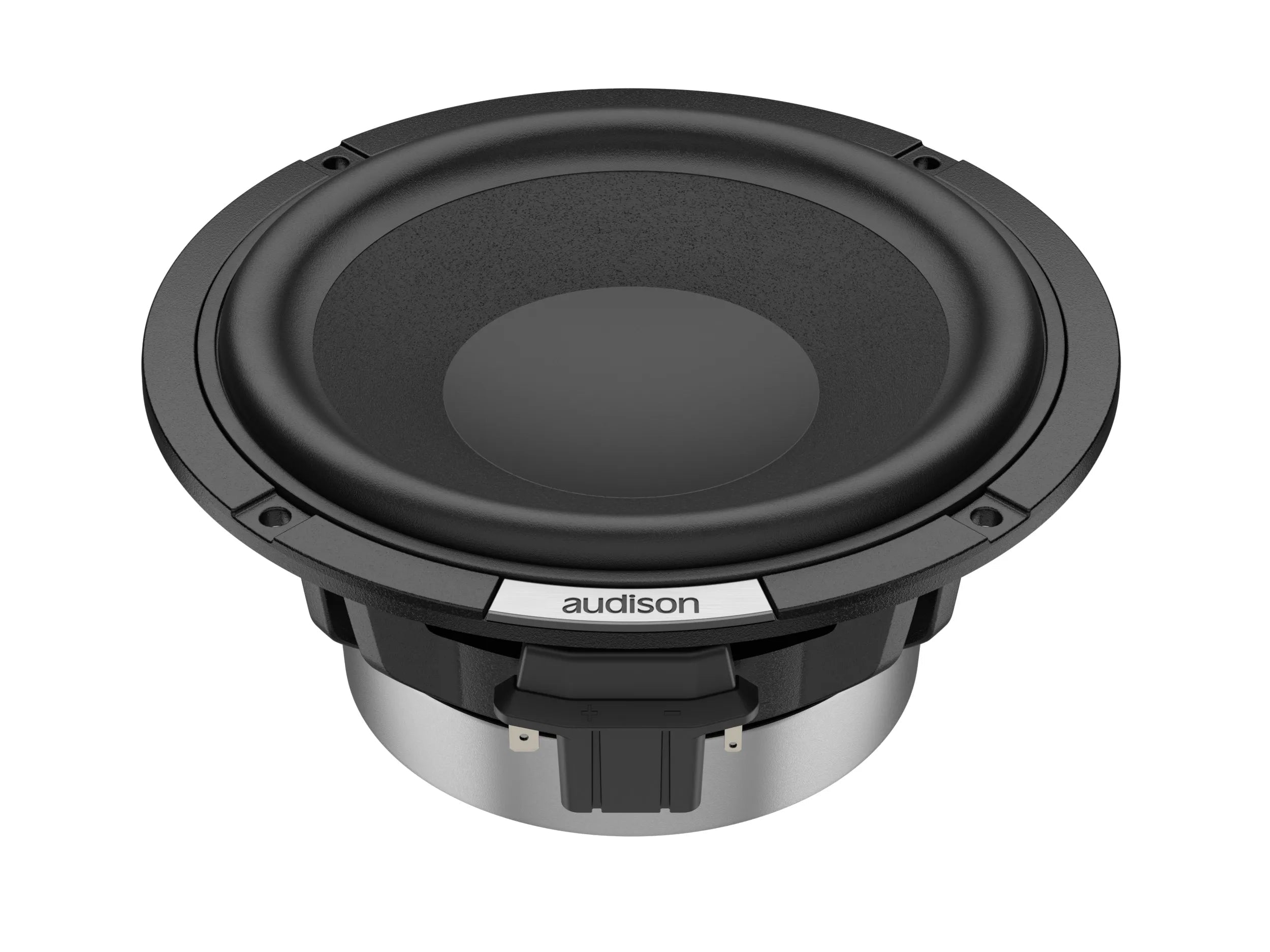

AV 6.5 P II Woofer - Powerful Bass and Perfect Control
The AV 6.5 P II woofer completes the system, delivering uncompromised power and control in reproducing bass and mid frequencies. Designed to handle up to 150W RMS, this woofer is perfect for those seeking immediate and precise mid-bass response, with powerful dynamics free of distortion. Equipped with a powerful magnet and a 40 mm CCAW (Copper Clad Aluminum Wire), the AV 6.5 P II guarantees linear response across the entire low- and mid-frequency spectrum. Its versatility allows it to work seamlessly with the DSP, optimizing sound performance in any condition, always ensuring natural and dynamic reproduction.

Features

• Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
• Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing a smooth, extended response with warm, natural sound reproduction.
• 1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
• Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
• OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
• AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
• FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
• Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
• eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.

AV 6.5 P II

• (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM-optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for wide frequency response and clean reproduction, even in midrange frequencies.
• Die-cast aluminum Basket with Magnet Cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two adhesive Audison logo badges, which are provided, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.

Specifications
Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W
Frequency Response: 45 - 7500 Hz
Voice Coil Diameter: 40 mm (1.57 in)
Magnet Material: HIGH DENSITY FLUX FERRITE
Magnet Size: 100 X 45 X 18
Cone Material: PRESSED PAPER CONE

Technical Specifications HF Tweeter Size: 28 mm (1.1 in)
Frequency Response: 1000 - 40000 Hz
Power Handling - Peak: 180 W
Voice Coil Diameter: 28 mm (1.57 in)
Dome Material: TETOLON FIBRE

Electric-acoustic Specs
Woofer Size: 165 mm (6.5 in)
Impedance: 4 Ohm
Power Handling - Peak: 300 W
Power Handling - Continuous: 150 W
Frequency Response: 45 - 7500 Hz
Voice Coil Diameter: 40 mm (1.57 in)
Magnet Material: HIGH DENSITY FLUX FERRITE
Magnet Size: 100 X 45 X 18
Cone Material: PRESSED PAPER CONE

Weight & Dimensions

Weight Woofer: 1.6 kg
Weight Tweeter: 0.1 kg
Weight Crossover: 0.1 kg
Dimension A: 165 mm (6.5 in)
Dimension A1: 48 mm
Dimension B: 140.8 mm (5.54 in)
Dimension C: 74.2 mm (2.92 in)
Dimension D: 69.8 mm (2.75 in)
Dimension B1: 44.9 mm
Dimension C1: 26.7 mm
Dimension D1: 16.5 mm

Frequency Response

Tweeter

Woofer
