Audison AF M8.14 BIT Forza Series 8-Channel Amplifier with 14-Channel DSP
AF M8.14 bit boasts eight high-fidelity amplified channels 90W x 8 @4Ohm, 140W x 8 @2Ohm* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 280W x 4 @4Ohm*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Next-Generation Tuning Capabilities For Maximum Control
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User
Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your
USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
Advanced OEM Integration Capabilities
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four
additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation
technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.

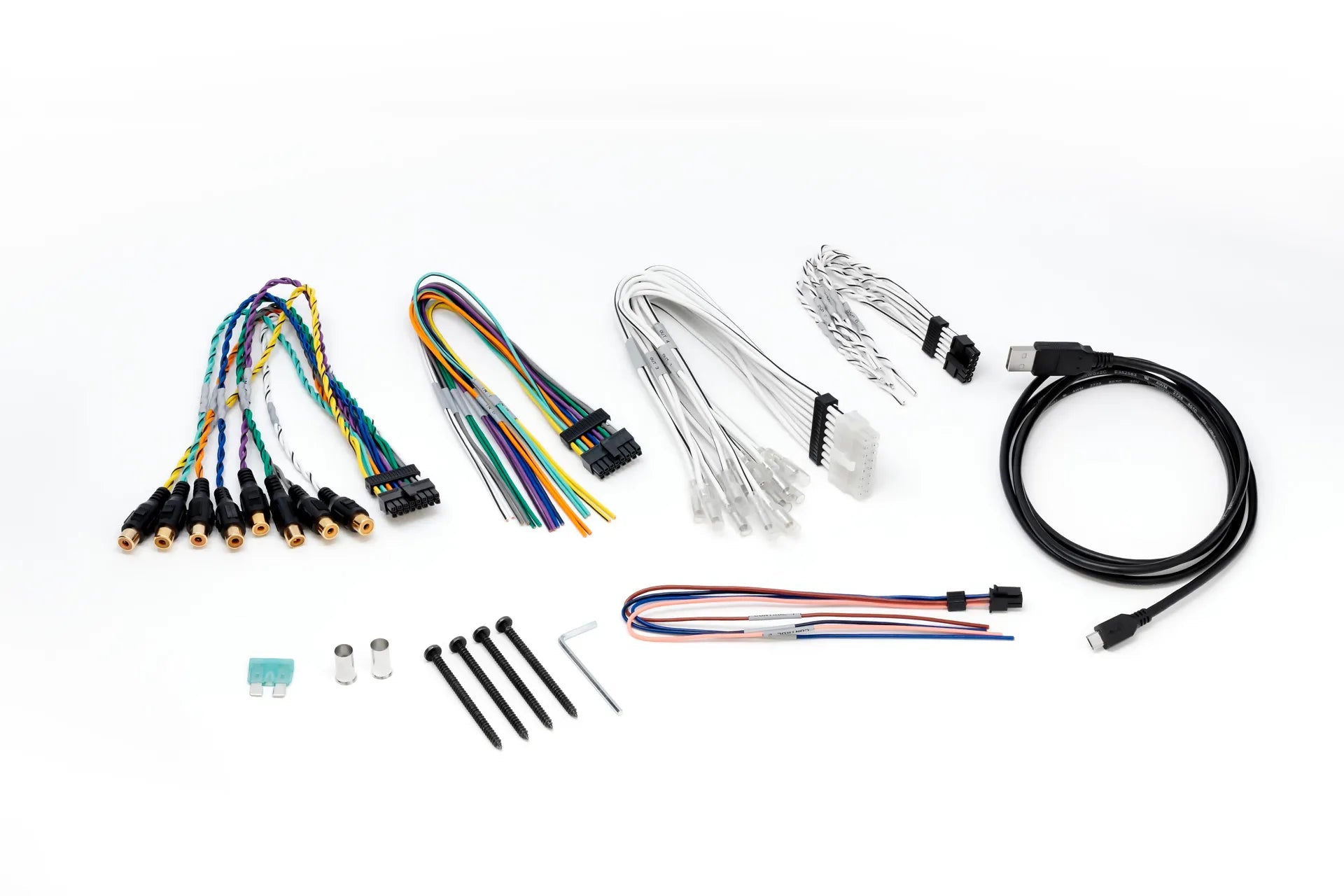

AF M8.14 bit includes a set of six high-quality cables supplied with a protective printed strip placed upstream of the Molex connectors to increase the resistance to torsion
Features
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analogs or 1 digital input)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
Specifications
Channels: 8
Class: D-Class
Power supply voltage / fuse: 6.5 ÷ 15 VDC / 2 x 30A
Idling current: 1.5 A
Standby Current Draw: 1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
Remote IN: 4 ÷15 VDC (1 mA)
Remote OUT: 6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
Efficiency Rated Power: 82%
Amplifier Stage
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.05%
Bandwidth @ -1.5 dB: 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS: 100
S/N ratio (A weighted @ 1 V Input) Master Input: 98.5 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input: 105
Total Power RMS: 1120 W
Minimum load impedance: 8Ch: 2Ω | 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD
8 Ch @ 4Ω: 90 W x 8
• 8 Ch @ 2Ω: 140 W x 8
• 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 280 W x 4
Adjustable Crossover: Yes
CEA Specifications
Output power @ 4Ω, 1% THD+N, 14.4 V: 90 W x 8
SN ratio (ref. 1 W output): 80 dB
Inputs / Outputs
Pre-In Inputs: 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Digital Input: Yes
Pre Outputs: 6
Hi Level Inputs: 8
Low Level Inputs: 8
Speaker-In Inputs: 2.2 ÷ 22 VRMS (5 Ω Imp.)
Digital IN: 1 x Optical S/PDIF; Max 192kHz/24bit + 1 x Optical/Coaxial S/PDIF; Max 96kHz/24 bit with optional F2O card
Sub Out (RCA Pre Out): 5V RMS
Digital Signal Processor
Audio DSP Converter:
Analog Devices ADAU1467 automotive qualified audio processor.
Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
Filter type: Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope:
Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
QLP @ 6 dB/Oct.
Crossover frequency: 20 Hz ÷ 20 kHz
Phase control: 0° / 180°, All-Pass filters
Analog Input Equalizer (20 ÷ 20k Hz): 12 Biquad + Delay
Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay: 0 ÷ 15 ms
Input Output Real Time Audio Monitor: RTA

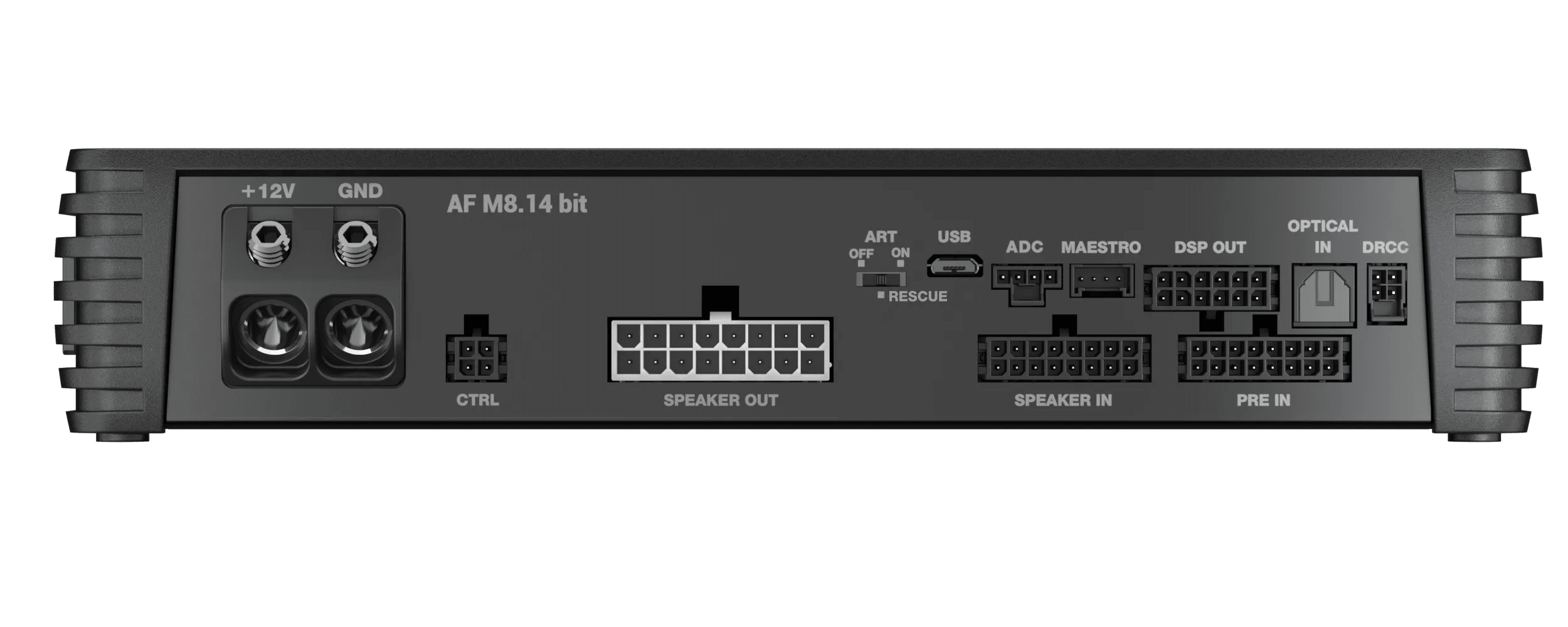

Control Connections
DRC Port: Input for DRCC remote control (Optional)
ADC Port: Manage other Audison devices that support this standard
1 Wire: Customizable functions (+ 12 V activated)
2 Wire: Customizable functions (+ 12 V activated)
General Requirements
PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768)
Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
Size: 240 x 47 x 156 / 9.44 x 1.85 x 6.14
Weight: 2.04 kg
