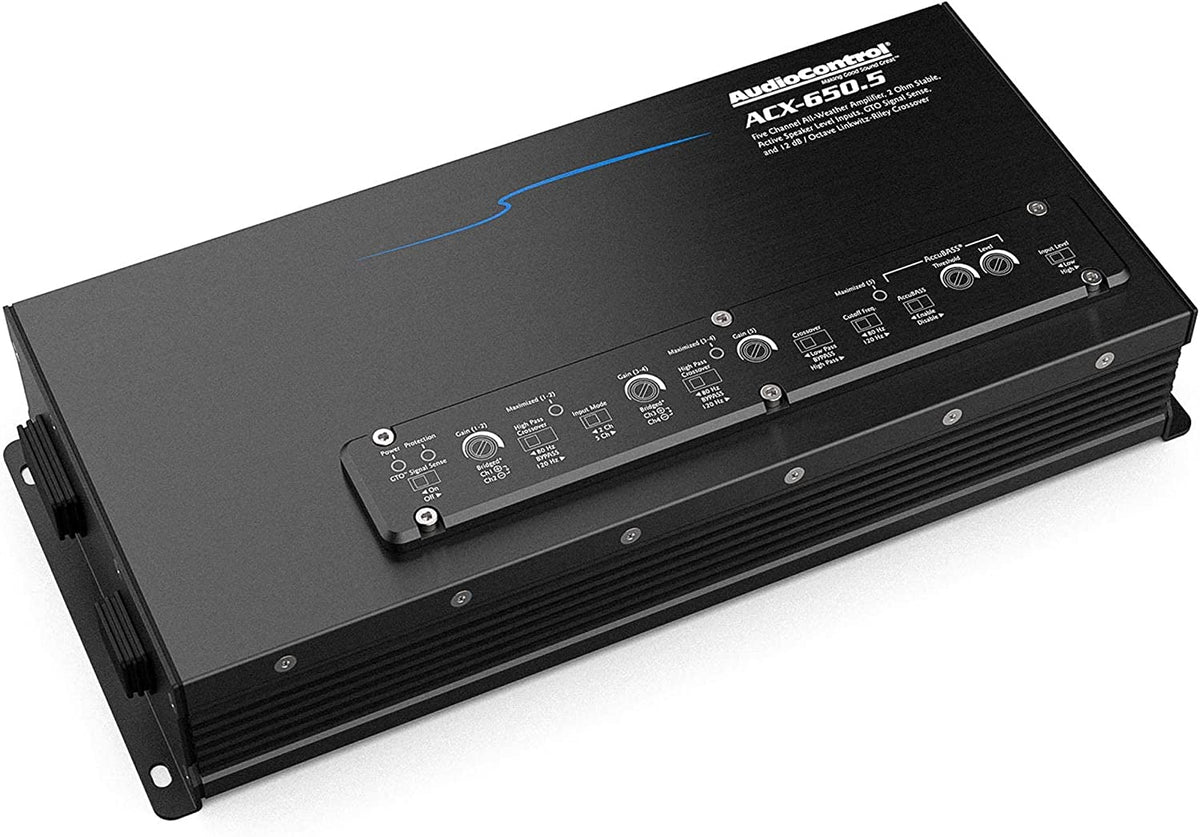

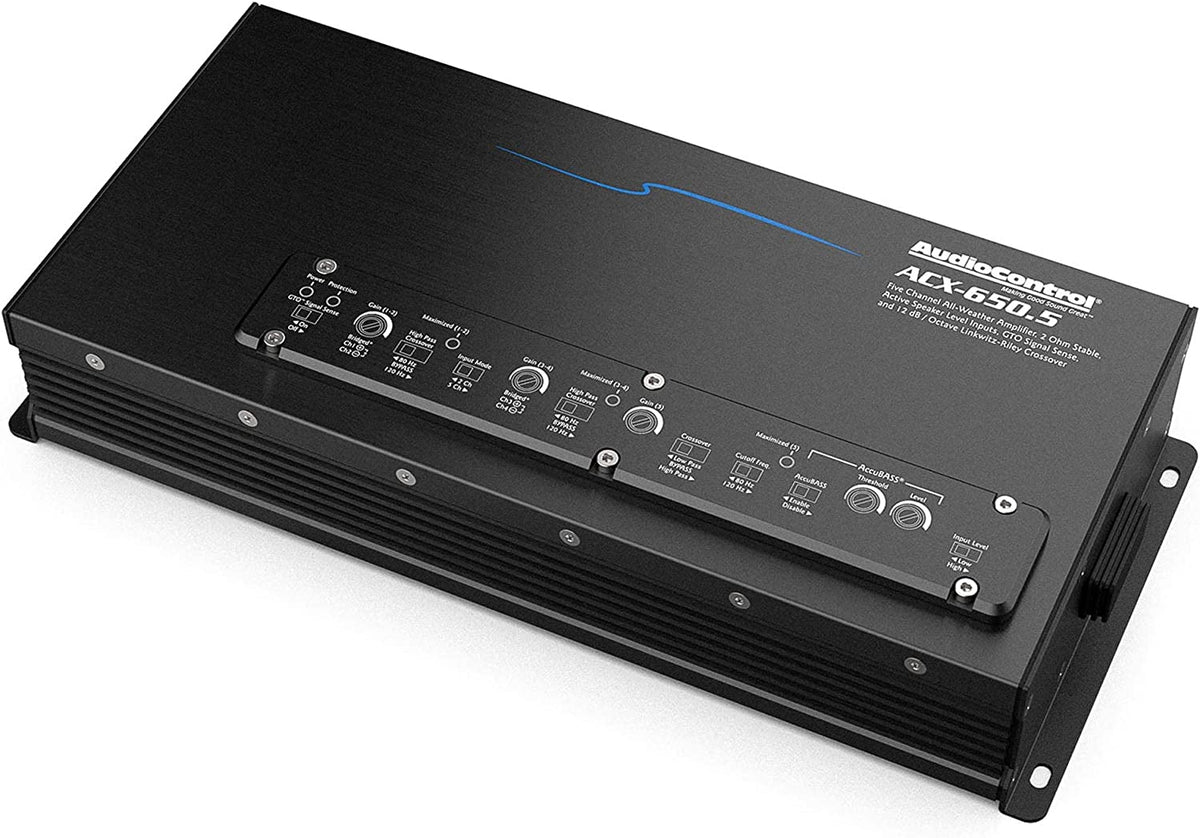

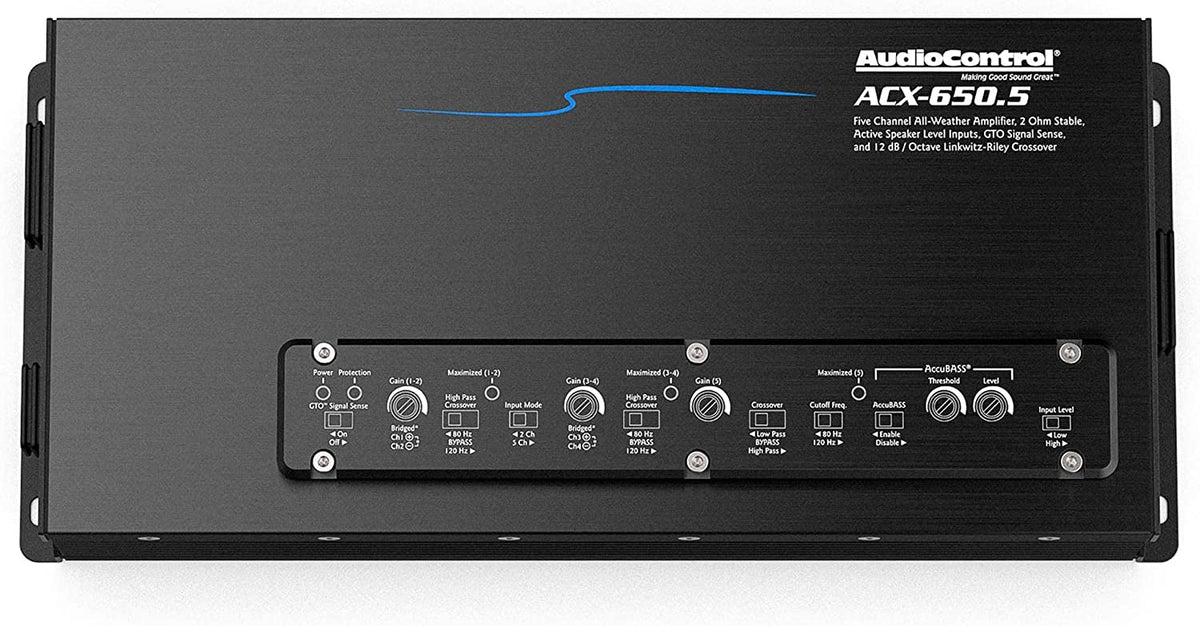

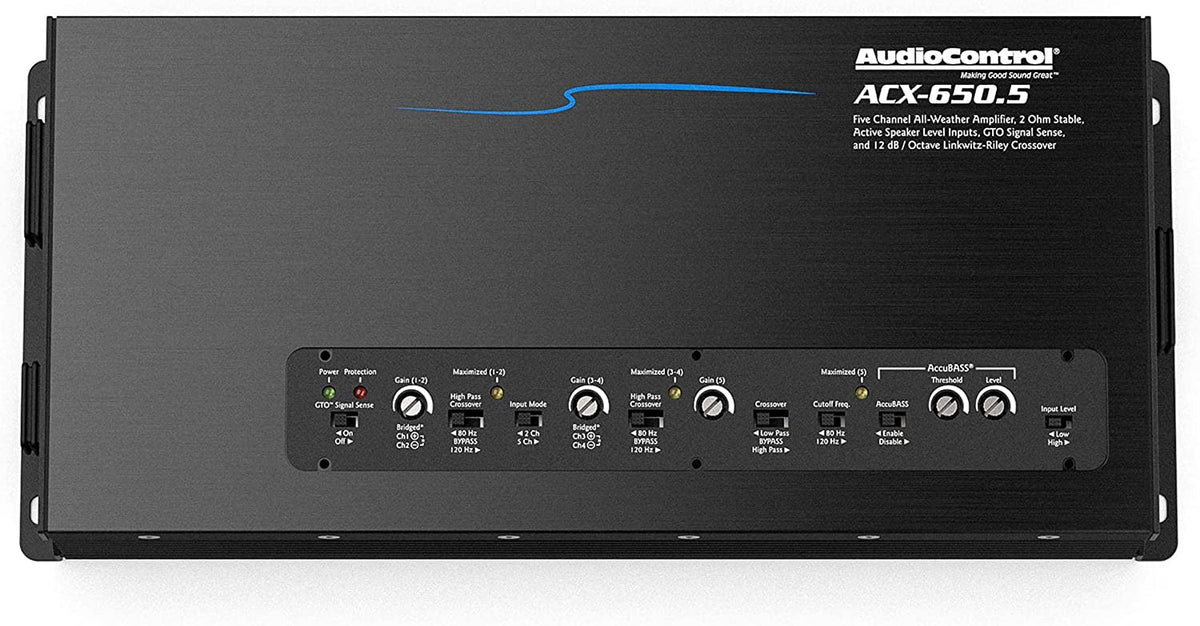

AudioControl ACX-650.5 All Weather 5-Channel Amplifier, for Boat/UTV/Motorcycle

Audio Control ACX-650.5 All Weather 5-Channel Amplifier

AudioControl’s ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.

Features

4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
2 x 150 Watts @ 4 Ohms, Bridged Mono
IPX6 Rated
AccuBASS® bass management
GTOTM Signal Sense
High and low input modes
Linkwitz-Riley Crossover
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Specifications

Inputs
Preamp/Speaker Level Inputs: 6
Input Voltage Low: 500 mV – 6 Vrms
Input Voltage Range High: 1 Vrms – 12 Vrms Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ohm – 50 W x 4 + 200 W x 1
2 Ohm – 75 W x 4 + 350 W x 1
Bridged 4 Ohm – 150 W x 2 Performance
Frequency Response: 26 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.05%
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
IP Rating: IPX6 General
Recommended Fuse Rating: 30A Weights & Dimensions
Dimensions: 11.97″W x 5.31″D x 2.36″H
Weight: 5.8 lbs. (2.63 kg)

Audio Control ACX-650.5 All Weather 5-Channel Amplifier

AudioControl’s ACX-650.5 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-650.5 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-650.5 all-weather amplifier the perfect solution for your next adventure.

Features

4 x 50 Watts @ 4 Ohms, 1 x 200 Watts @ 4 Ohms
4 x 75 Watts @ 2 Ohms, 1 x 350 Watts @ 2 Ohms
2 x 150 Watts @ 4 Ohms, Bridged Mono
IPX6 Rated
AccuBASS® bass management
GTOTM Signal Sense
High and low input modes
Linkwitz-Riley Crossover
Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Specifications

Inputs
Preamp/Speaker Level Inputs: 6
Input Voltage Low: 500 mV – 6 Vrms
Input Voltage Range High: 1 Vrms – 12 Vrms Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ohm – 50 W x 4 + 200 W x 1
2 Ohm – 75 W x 4 + 350 W x 1
Bridged 4 Ohm – 150 W x 2 Performance
Frequency Response: 26 Hz – 22 kHz
Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
THD+N: < 0.05%
Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
IP Rating: IPX6 General
Recommended Fuse Rating: 30A Weights & Dimensions
Dimensions: 11.97″W x 5.31″D x 2.36″H
Weight: 5.8 lbs. (2.63 kg)
