• 100 Watts RMS | 200 Watts Peak
• Ceramic-Coated Aluminum Alloy Diaphragm
• Treated Silk S-Roll Surround

• 100 Watts RMS | 200 Watts Peak
• Mineral-Filled Polypropylene Woofer
• Grille Included

• 50 Watts RMS | 100 Watts Peak
• Tuned Mass Damper (TMD®) Suspesion
• "M" Profile "W" Sandwich Cone

• 11" WXGA Floating CapacitiveTouchscreen Display
• Wireless/Wired Apple CarPlay and Android Auto
• Hi-Res Audio Playback (96kHz / 24bit)

JL Audio VX1000/5i 5-Channel Class D Amplifier with DSP

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 600W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 600W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

Specifications

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω: 75 W RMS x 4
Main Channels @ 2 Ω: 100 W RMS x 4
Main Channels - Bridged @ 4Ω: 200 W RMS x 2
Subwoofer Channel @ 4 Ω: 400 W RMS x 1
Subwoofer Channel @ 3 Ω: 500 W RMS x 1
Subwoofer Channel @ 2 Ω: 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω: N/A

Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω: 60 W RMS x 4
Main Channels @ 2 Ω: 90 W RMS x 4
Main Channels - Bridged @ 4Ω: 180 W RMS x 2
Subwoofer Channel @ 4 Ω: 360 W RMS x 1
Subwoofer Channel @ 3 Ω: 480 W RMS x 1
Subwoofer Channel @ 2 Ω: 600 W RMS x 1
Subwoofer Channel @ 1.5 Ω: N/A

General Specifications
Frequency Response (Main Channels): 12 Hz - 24 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel): 12 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels): 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Main Channels): 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel): 73 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 2 Ω: >50 / 50 Hz
Damping Factor @ 4 Ω: >150 / 50 Hz
THD+N @ Rated Power (Main Channels): <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H): 2.12 in / 54 mm
Width (W): 11.32 in / 287 mm
Depth (D): 6.62 in / 168 mm
Net Weight: 6.45 lb / 2.93 kg

Focal TBM

The best of Focal technologies

• 500 Watts RMS x 1 @ 4 Ohm (12.5V)
• 650 Watts RMS x 1 @ 3 Ohm (12.5V)
• 800 Watts RMS x 1 @ 1 Ohm (12.5V)

• 95W x 2 + 185 W x 2 + 660W x1 @ 4 Ohm RMS
• 150W x 2 + 290 W x 2 + 1030W x1 @ 2 Ohm RMS
• Direct DSP (bypassing all preamplifier circuits)

JL Audio VX700/5i 5-Channel Amplifier with DSP

VXi amplifiers combine JL Audio’s advanced amplifier technology with a powerful digital signal processor, all within a compact and beautiful package that is easy to install and offers unprecedented tuning power and flexibility.

At the heart of each VXi amplifier is a customized, triple-core AKM® DSP engine. This powerful DSP not only enables powerful tuning capabilities, but it also helps to improve amplifier audio performance by acting as a master clock for the full-range audio amplifier sections. Further amplifier performance gains have been achieved via minimum loop area output designs, DirectFET® output devices and closely coupled output capacitor banks. The result is a new level of Class D amplifier performance, with outstanding efficiency, reliable power delivery and world-class audio quality.

The triple-core DSP engine has ample power to enable a full suite of powerful signal processing functions. These include powerful input switching, routing and mixing that allow a wide range of sources and configurations. Also included for each amplifier output channel and the analog pre-outs: high pass and low pass filters, delay, all-pass filter, polarity and output level trim. Optical, digital pre-outs feature the ability to EQ and level control the digital stream.

Instead of using traditional control knobs and switches, VXi amplifiers are easily configured from the driver’s seat, using JL Audio’s free TüN™ software on a compatible computer, tablet or smartphone. Users can define up to six active preset tunings that can be called up at the push of a button using one of the compatible DRC controllers (sold separately).

Overview

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Employing our second generation NexD2™ amplifier technology, the VX700/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 @ 4 ohms while also powering a subwoofer with up to 300W @ 2 ohms. Bridging the main channels converts it into a very powerful, 3-channel system amplifier with up to 200W x 2 @ 4 ohms on the main channels and 300W @ 2 ohms on the subwoofer channel.

The NexD2™ full-range technology in the main channels of this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The subwoofer channel features an optimized low-frequency variant of the NexD2™ technology. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, Subwoofer Output Harness, 6 ft A/B USB Cable

Features

TüN Software Applications
Intuitive setup and tuning, all at your fingertips. Automatically recognizes connected amplifier and displays appropriate interface. TüN™ is available for download for free in a variety of applications, for computers and most handheld devices. TuN Software

Unprecedented, Onboard DSP Tuning Power
Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
Hi-Res audio processing at 24 bit/96 kHz
High-performance AKM® A/D and D/A converters
10 Bands of fully parametric EQ, per output channel, including pre-outs
Shelving EQ option for Band 1 and Band 10
High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
Linkwitz-Riley: 12, 24, 48 dB/octave
Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
Polarity Reversal (0 or 180 deg.)
Output Level Trim in 0.1 dB steps

NexD2TM Switching Amplifier Technology
Our latest generation of high-speed switching technology delivers superb full-range power, fidelity and efficiency.
DSP acts as central clock for all channels to improve audio quality and reduce noise.

Ultra-Versatile Analog and Digital Inputs
High-performance, differential-balanced analog inputs for outstanding noise rejection
Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
Automatic turn-on options via Signal-Sensing or DC-Offset sensing

Functional Compact Chassis Design
Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
Configurable LED logo ring displays status and can display audio preset color code or user-defined color
Logo badge can be oriented in 90 degree increments
Corner caps engineered to conceal mounting holes and hardware

JLidTM System Command and Control with Networking Capabilities JL Audio's digital protocol provides control interface and communication between VXi amplifiers and optional JLidTM accessories, including: DRC-100/DRC-200/DRC-205 (coming soon) Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
VXi-BTC Bluetooth® Communicator (coming soon): Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
VXi-HUB Optical Network Hub (coming soon): Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.

Specifications

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

General Specifications
Frequency Response (Main Channels) 12 Hz - 24 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 12 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Main Channels) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel) 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Main Channels) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to highest rated power (Digital Inputs - Subwoofer Channel) 102 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Main Channels) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W (Digital Inputs - Subwoofer Channel) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >50 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Physical Specifications
Height (H) 2.12 in / 54 mm
Width (W) 9.81 in / 250 mm
Depth (D) 6.62 in / 168 mm
Net Weight 5.6 lb / 2.54 kg

Focal EC165K

Pushing Back the Limits

Alpine HDA-V90 Status Hi-Res 5-Channel Amplifier

Features

Specifications

What's in the Box

JL Audio 10W7AE-3

• Satin-Black Powdercoated Baskets
• Bright Anodized Surround Clamp Ring
• Anniversary Edition Cone Badge
• Anniversary Edition Terminal Label

Specifications

• Continuous Power Handling (RMS) 750 W
• Recommended Amplifier Power (RMS) 300 - 750 W
• Nominal Impedance (Znom) 3 Ω

• Nominal Diameter 10.0 in / 250 mm
• Overall Diameter (A) 10.5 in / 267 mm
• Mounting Hole Diameter (B) 8.74 in / 222 mm
• Bolt Hole Circle Diameter (C) 9.34 in / 237 mm
• Motor Outer Diameter (D) 6.55 in / 166 mm
• Mounting Depth (E) 8.0 in / 203 mm
• Driver Displacement 0.09 cu ft / 2.5 L
• Net Weight 30 lb / 13.6 kg

• Free Air Resonance (Fs) 30.6 Hz
• Electrical “Q” (Qes) 0.578
• Mechanical “Q” (Qms) 7.647
• Total Speaker “Q” (Qts) 0.537
• Equivalent Compliance (Vas) 1.28 cu ft / 36.1 L
• One-Way Linear Excursion (Xmax)* 0.9 in / 23 mm
• Reference Efficiency (no) 0.17%
• Efficiency (1 W / 1 m)** 84.3 dB SPL
• Effective Piston Area (Sd) 59.8 sq in / 0.0386 sq m
• DC Resistance (Re) 2.75 Ω

Technology

Detailed Information:
Since 1997, JL Audio has been at the forefront of Finite Element Analysis-based modeling of loudspeaker motors and suspensions. This research is aimed at decoding what we refer to as the "Loudspeaker Genome"... a project aimed at understanding the true behavior of loudspeakers under power and in motion. A major component of this integrated system is DMA (Dynamic Motor Analysis). Starting with the 15W3 and the W7 Subwoofers in the late 1990's and early 2000's, DMA has played an important role in the design of all JL Audio woofers sold today, including our component woofers.

DMA is a Finite Element Analysis (FEA)-based system, meaning that it takes a large, complex problem, breaks it down into small solution elements for analysis and then assembles the data to form an accurate, "big-picture" solution. DMA's breakthrough is that it actually considers the effects of power through the coil as well as coil/cone position within the framework of a time-domain analysis. This gives us a highly accurate model of a speaker's actual behavior under real power, something that the traditional Thiele-Small models or other low power measurements cannot do. Because DMA does not rely on a steady-state model, it is able to consider shifts in the circuit elements being analyzed. These modeling routines are intense, requiring hours to run for a whole speaker.

DMA is able to analyze the real effects of fluctuating power and excursion upon the magnetic circuit of the motor, specifically the dynamic variations of the "fixed" magnetic field. This delivers intensely valuable information compared to traditional modeling, which assumes that the "fixed" field produced in the air gap by the magnet and the motor plates is unchanging. DMA not only shows that this "fixed" field changes in reaction to the magnetic field created by current flowing through the voice coil, but it helps our engineers arrive at motor solutions that minimize this instability. Analyzing this behavior is critical to understanding the distortion mechanisms of a speaker motor and sheds light on the aspects of motor design that determine truly linear behavior:

1. Linear motor force over the speaker's operational excursion range
2. Consistent motor force with both positive and negative current through the coil
3. Consistent motor force at varying applied power levels

Our ability to fully analyze these aspects of motor behavior allows our transducer engineers to make critical adjustments to motor designs that result in extremely linear, highly stable dynamic loudspeaker motor systems.

The payoff is reduced distortion, improved transient performance and stellar sound quality.
W-Cone (U.S. Patent #6,496,590)
Summary:
The W-Cone is a unit-body cone assembly that delivers astonishing cone stiffness with minimal mass. The shape also provides superb torsional rigidity, which is critical to maintaining voice coil alignment at the suspension limits.
Detailed Information:
The more excursion and motor force a speaker has, the more important cone rigidity becomes. The acceleration forces are extreme, requiring the cone to withstand rapid changes in speed and direction without deformation. Deformation not only leads to distortion, but can also affect the speaker's mechanical integrity by allowing the voice coil to go out of alignment and rub on the top-plate and the pole-piece of the motor. There are several approaches to enhancing cone rigidity. The obvious ones are using a thicker material and/or a stiffer material. In recent years, several manufacturers have used composite cone materials (Kevlar®, fiberglass, etc.) or metals (aluminum, magnesium, titanium alloys). The use of these exotic materials is typically accompanied by marketing claims that the material chosen has exceptional stiffness-to-mass characteristics. These are true statements, but can be misleading. While these materials have excellent stiffness-to-mass properties (compared to paper or poly), they are not lighter than paper or poly in practice. This means that their use accepts the compromise of added moving mass on the design. This leads to efficiency penalties and suspension complications (it's harder to keep a heavy mass aligned properly). A simple poly cone diaphragm, while sufficient for lower power designs, would not remain rigid under the demands that the W7 design requires. Our engineering team knew that high levels of cone rigidity would be needed, but they focused on achieving rigidity without a huge weight penalty. This ultimately led to the design we call the W-Cone. The W-Cone assembly achieves its rigidity through architectural means, rather than through inherently stiff materials. The design addresses the stiffness issue by using two lightweight mineral-filled polypropylene skins, bonded together at the perimeter and the center of the assembly. The lower skin's cross-section is shaped like a 'W', hence the name, and provides incredible rigidity when bonded to the dished upper skin. The effect is not unlike the trusses of a bridge or the unit-body construction of a modern automobile. In addition to the overall rigidity benefit, the lower skin's shape distributes the force generated by the coil and motor more evenly than a typical diaphragm. The force is not only applied to the apex but also distributed to the perimeter of the outer diaphragm for more linear behavior. A further benefit of the W-Cone is that the upper skin (the one in contact with the listening environment), is isolated from the high air-pressure gradients of the enclosure, further reducing deformation (and distortion). As a point of comparison, the W-Cone assembly of a 12W7 is 32% lighter than a typical aluminum-alloy 12-inch cone. If analyzed in terms of weight per square inch of piston area, the W7 cone-body weighs 1.24g/sq.in., compared to 1.45g/sq.in. for an aluminum-alloy cone and 1.66g/sq.in. for a titanium-alloy cone. So why polypropylene" As stated above, our patented W-Cone technology achieves all of the benefits of more exotic materials while
better suiting the unique nature of the W7. Since the W7 surround is detachable, the moving system (including the diaphragm) is
subject to mechanical stress unseen in conventional designs. Because the user can tug on the cone while manipulating the surround, the
cone must be able to handle this without buckling or deforming. Paper, metal or brittle composite cones would not handle this well.
Our two-skin unit-body cone design achieves outstanding axial and torsional stiffness to withstand all kinds of abuse, and will remain
largely unaffected and unblemished. Elevated Frame Cooling (U.S. Patent #6,219,431 & #6,229,902)
Summary:
JL Audio's patented Elevated Frame Cooling design delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.
Detailed Information:
Many speakers employ venting techniques to enhance voice coil cooling. This is typically accomplished by having big holes in the sides of the frame just below the spider attachment shelf. While it provides a modest cooling benefit, this low-velocity air-flow does not blow directly or strongly on the voice coil. Our patented design improves upon this cooling technique in a number of ways. By elevating the frame above the top-plate of the motor (via stand-offs integrated into the bottom of the frame) a narrow, high-velocity air-path is created between the bottom surface of the frame and the top surface of the top-plate. This air path leads directly to the voice coil and then turns upward into the spider air cavity. By utilizing the pumping action of the spider through this focused air path, a large volume of cool air hits the coil windings directly. Another important benefit is that the upper surface of the top-plate (one of the speaker's hottest parts) is directly exposed to
cooling air flow, whereas on a conventional design it is isolated from the air flow by the lower flange of the frame. The elevated
frame technology greatly increases thermal power handling, reduces compression effects and does so without any additional parts.
Floating Cone Attach Method - FCAM™ (U.S. Patent #6,501,844)
Summary:
This assembly technique, conceived by JL Audio, ensures proper surround geometry in the assembled speaker for better excursion control
and dynamic voice coil alignment.
Detailed Information:
JL Audio's patented FCAM™ technology is an innovative method of bonding the surround/cone assembly to the voice coil former/spider assembly. This feature helps ensure concentricity of the surround, spider and voice coil without torquing the suspension to achieve it. This allows for the inevitable, slight variations in production part dimensions without having them negatively impact the integrity of the suspension and coil-centering at high excursions. OverRoll Surround
Summary:
By utilizing space wasted in conventional speakers, this ground-breaking innovation controls the W7's massive excursion without sacrificing precious cone area.
Detailed Information:
One of the first things you notice about a W7 is that something is "missing"... the mounting flange. Of course, this is actually not the case. The mounting flange is simply hidden beneath the surround and is made accessible for mounting purposes by detaching the outer edge of the surround and moving the roll to the inside (a pretty neat little trick). Apart from the obvious benefits of amazing your friends as you pull the surround off your speaker, there is a serious technical issue that led us in this design direction: Effective Piston Area ("Sd"). This is essentially the speaker's "cylinder bore", to use an automotive engine analogy, and is calculated by measuring the diameter of the diaphragm including one-half of the surround roll-width. In other words, from the top- center of the surround on one side to top-center of the surround on the other side. The displacement capability of a speaker is determined by this piston area times the speaker's excursion capability. Displacement of air is directly linked to output potential. Therefore, the more air a speaker can ultimately displace, the louder it can play. That being said, there is a big difference between piston area and excursion: piston area doesn't need power to make it happen. This means that by making a larger piston, you are directly improving displacement for a given amount of excursion and, therefore, making your speaker more efficient. This is not the only factor that governs efficiency, but it is a major one. To make a speaker have more excursion capability not only requires a motor design that can deliver more stroke, but also requires a surround rugged enough to handle the demands of longer excursions and controlled enough to keep everything lined up properly. If the surround's roll-width is not adequately large, its behavior (compliance) is not linear over the useful stroke of the woofer and it is more likely to fatigue and fail. For this reason, speakers with longer excursion capability generally need larger surround rolls (we won't comment on the ones that use large rolls strictly for cosmetic effect). The problem with big surrounds is that they begin to encroach on the effective piston area of the driver. For example, a typical 12- inch woofer with a medium-sized roll has an effective piston area of 81.52 square inches. Compare this to a fat-surround 12-inch woofer which has a piston area of 69.07 square inches (15.2 % less effective piston area than the medium-size roll.) To overcome this loss, the fat-surround woofer has to produce more excursion to displace the same air as the woofer with the medium surround (and will require more power to do so). OverRoll™ technology neatly sidesteps this compromise by allowing us to make full use of the entire footprint of the speaker, placing the surround further to the outside than in a conventional woofer. This means that we can use a large roll for all its benefits without sacrificing cone area (in fact, the 12W7 has 1% more piston area than the medium-surround conventional woofer). By maximizing the effective piston/total footprint ratio, we can deliver more output for a given excursion and outside frame diameter. This means that the prodigious excursion advantage of the W7 can be put to full use enhancing output, rather than making up for lost piston area. The technology also provides a geometry advantage on the outside edge of the surround roll, allowing for more linear operation. A further benefit is that the mounting holes are inherently sealed by the surround, resulting in an improved box seal. Radially Cross-Drilled Pole-Piece (U.S. Patent #6,243,479)
Summary:
This innovative venting system greatly enhances thermal dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Elevated Frame cooling technology to effectively remove heat from the voice coil. This improves power handling and reduces power compression effects, leading to more linear performance.
Detailed Information:
This technology differs from a conventionally vented pole-piece in that the air flow is capped off at the top of the pole-piece and directed through machined holes on the outer wall of the pole-piece to the region directly behind the voice coil. The top portion of the pole-piece is smaller in outside diameter where the holes vent and helps create a high-volume, high-velocity airflow path between the inner-coil cavity and the ambient air of the enclosure.This helps remove super-heated air that is trapped between the coil former and pole-piece on a conventional design, leading to a dramatic improvement in cooling efficiency, especially at high excursions. Engineered Lead-Wire System (U.S. Patent #7,356,157)
Summary:
Carefully engineered lead-wire design and attachments ensure controlled, quiet lead-wire behavior under the most extreme excursion demands.
Detailed Information:
Managing the lead-wires on a long-excursion woofer is one of the trickier aspects of its mechanical design. To address this, many long-excursion woofers today rely on a simple solution that weaves the lead-wires into the spider (rear suspension) of the driver. The biggest problem with this approach is that spider limiting behavior plays a hugely important role a woofer's performance. Lead- wires that are attached or woven into the spider material can alter the spider's "stretching" behavior. The tinsel wire naturally has less 'give' than the fabric material of the spider leading to asymmetrical spider behavior and non-uniform stress distribution around the spider circumference. The wire attachment points can also cause localized pulling and tearing forces at the spider's excursion limits. As such, longevity becomes a major concern and makes the woven-in design less than ideal for very long-excursion designs. While a traditional 'flying lead' design does not compromise spider linearity or radial stability, it creates its own challenges on a long-excursion woofer. Managing the 'whipping' behavior of the wire and making sure it does not contact the cone or spider is one challenge. Another is ensuring that the leads do not short one another or the frame of the woofer. To overcome these issues, JL Audio's engineered flying lead-wires work in conjunction with carefully engineered entry and exit support structures molded into the terminals and the voice coil collar. Some models also feature jacketed lead-wires to further reduce the likelihood of shorting and fatigue. The result is flawless high-excursion lead-wire behavior, with outstanding reliability and none of the compromises inherent to a woven-in lead wire system. Building woofers this way requires much more labor and parts complexity than the simpler woven-in approach, but the payoff is in reduced distortion, reduced mechanical noise and improved reliability. Built in U.S.A. with Global Components
Summary:
JL Audio's Miramar, Florida loudspeaker production facility is one of the most advanced in the world.
Detailed Information:
At a time when most audio products are built overseas, JL Audio’s commitment to in-house loudspeaker production continues to grow. To pull this off in a competitive world market, our production engineering team has created one of the world’s most advanced loudspeaker assembly facilities and established a global network of quality component suppliers who build to our specifications. This, combined with our commitment to state-of-the-art assembly technology, allows our skilled workforce to efficiently build JL Audio products to extremely high quality standards, right here in the U.S.A. Since most of our premium loudspeakers incorporate proprietary, patented technologies requiring specific assembly techniques, we find it is vital that the people who designed them have close access to the people manufacturing them. The following JL Audio products are built in our Miramar, Florida factory, with global components:

• Subwoofer Drivers: W7, W6v3, TW5v2, TW3, TW1, W3v3
• Enclosed Car Subwoofers: Stealthbox®, PowerWedge™, ProWedge™, H.O. Wedge™ & MicroSub™ Enclosed Subwoofers
• Marine Loudspeakers, Marine Subwoofer Drivers and Marine Enclosed Loudspeakers
• Home Subwoofers: Dominion™, E-Sub, Fathom® and Gotham®

• 100 Watts RMS | 200 Watts Peak
• TKM "M" Profile Aramid Fiber Inverted Dome Tweeter
• K2 Power Sandwich Cone

• Alpine’s Class D Amplifier Circuit with Dual Post-Filter Feedback Loops
• CTA-2006-B Power Rating: 100W RMS x 4 (4ohm, 14.4V ≤ 1% THD+N); 150W RMS x 4 (2ohm, 14.4V≤ 1% THD+N)
• Bridged: 300W x 2 (4ohm, 14.4V, ≤1% THD+N)
• S/N ratio: >85dB (ref: 1W into 4 ohm), 106dB (at rated power)
• THD+N ≤0.03% (ref: 1W into 4 ohm)

• 6.95" WVGA Resistive Touchscreen Display
• Wireless/Wired Apple CarPlay and Android Auto
• 4 Camera Inputs

Kenwood DNX997XR 6.8" DVD Receiver with Apple CarPlay and Android Auto

Advanced Navigation

Smartphone Connectivity

The Best Audio Experience

Safe Driving

Additional Features

JL Audio VX600/6i

Overview

Features

• Premium, triple-core AKM® DSP with an optimized configuration, developed in collaboration with AKM®
• Hi-Res audio processing at 24 bit/96 kHz
• High-performance AKM® A/D and D/A converters
• 10 Bands of fully parametric EQ, per output channel, including pre-outs
• Shelving EQ option for Band 1 and Band 10
• High-Pass & Low-Pass Filters for each output channel, with selectable alignments and slopes:
• Linkwitz-Riley: 12, 24, 48 dB/octave
• Butterworth: 6, 12, 18, 24, 36, 48 dB/octave
• Signal Delay in 0.01 millisecond steps (equivalent to 1/8-inch, 3 mm)
• All-Pass Filter (Phase EQ), with variable "Q" and corner frequency
• Polarity Reversal (0 or 180 deg.)
• Output Level Trim in 0.1 dB steps

• Our latest generation of high-speed switching technology delivers superb full-range power, fidelity and efficiency.
• DSP acts as central clock for all channels to improve audio quality and reduce noise.

• High-performance, differential-balanced analog inputs for outstanding noise rejection
• Accepts speaker level signals from 200 mV, up to 16V RMS, including those from many factory systems
• Optical Digital (Toslink) input permits direct connection of S/PDIF digital sources, bypassing A/D converter. Accepts up to 24 bit/192 kHz input.
• Independently configurable RCA analog and digital pre-outs (24 bit/96 kHz)
• Automatic turn-on options via Signal-Sensing or DC-Offset sensing

• Solid cast alloy main unibody and bottom plate deliver superb EMI performance and shielding
• All connections utilize compact mating connectors for maximum integrity and fitment into tight spaces.
• Configurable LED logo ring displays status and can display audio preset color code or user-defined color
• Logo badge can be oriented in 90 degree increments
• Corner caps engineered to conceal mounting holes and hardware

• DRC-100/DRC-200/DRC-205 (coming soon) Digital Remote Controllers: Offers convenient level and DSP preset control from the driver's seat.
• VXi-BTC Bluetooth® Communicator (coming soon): Permits wireless configuration of VXi amplifiers using your compatible Apple® or Android® device.
• VXi-HUB Optical Network Hub (coming soon): Provides network connectivity for up to five slave VXi amplifiers, allowing synchronization of DRC controllers and DSP presets. Up to two VXi-HUBs can be daisy-chained to network up to ten VXi amplifiers.

Specifications

• @ 4 Ω 75 W RMS x 6
• @ 2 Ω 100 W RMS x 6
• Bridged @ 4Ω 200 W RMS x 3

• @ 4 Ω 60 W RMS x 6
• @ 2 Ω 90 W RMS x 6
• Bridged @ 4Ω 180 W RMS x 3

• Frequency Response 12 Hz - 24 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power (Analog Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω >100 / 50 Hz
• Damping Factor @ 2 Ω >50 / 50 Hz
• THD+N @ Rated Power <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS
• Min.Copper Power / Ground Wire Gauge 4 AWG wire
• Fuse Rating 50 A (AFS, AGU or MaxiFuse™)

• Height (H) 2.12 in / 54 mm
• Width (W) 9.81 in / 250 mm
• Depth (D) 6.62 in / 168 mm
• Net Weight 5.55 lb / 2.5 kg

JL Audio HD900/5

Physical Specifications

Height (H)	1.93 in / 49 mm
Width (W)	10.74 in / 273 mm
Depth (D)	8.29 in / 211 mm
Net Weight	6.85 lb / 3.11 kg

• Powerful & Compact Mono Amplifier
• High-Fidelity, Full Range Class D
• Regulated Intelligent Power Supply "R.I.P.S."

• Satin Black Powdercoated Basket
• Anniversary Edition Cone Badge and Terminal Label
• 1000 watt, 3 ohm Driver

JL Audio HD1200/1

• @ 4 Ω 1200 W RMS x 1
• @ 3 Ω 1200 W RMS x 1
• @ 2 Ω 1200 W RMS x 1
• @ 1.5 Ω 1200 W RMS x 1

• @ 4 Ω 1200 W RMS x 1
• @ 3 Ω 1200 W RMS x 1
• @ 2 Ω 1200 W RMS x 1
• @ 1.5 Ω 1200 W RMS x 1

• Frequency Response 6 Hz - 8 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels) >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω >500 / 50 Hz
• Damping Factor @ 2 Ω >250 / 50 Hz
• THD+N @ Rated Power (Main Channels) <0.03% @ 4 Ω
• Input Voltage Range @ RCA Inputs Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge 2 AWG wire
• Fuse Rating 100 A (AFS, AGU or MaxiFuse™)

• Filter Mode(s) Low-Pass or High-Pass
• Filter Slope(s) 12/24 dB/octave
• Filter Frequency Range 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometer Yes
• Filter Defeat Function Yes
• Infrasonic Filter 30 Hz, defeatable
• Bass Boost EQ No
• Output Polarity Switch Yes
• Remote Subwoofer Level Control Optional (HD-RLC)
• Remote Bass EQ Boost Control No
• Pass-Through Preamp Output Buffered

• Height (H) 1.93 in / 49 mm
• Width (W) 10.74 in / 273 mm
• Depth (D) 8.29 in / 211 mm
• Net Weight 6.6 lb / 2.99 kg

• 7" WXGA Capacitive Touchscreen Display
• Wireless/Wired Apple CarPlay and Android Auto
• iDatalink® Maestro Compatible

Alpine X-A90M

• Alpine ID Sound Quality
• Class-D Performance
• Rotatable Illuminated Alpine Badge
• Top-Side Control Panel
• Built-in Crossover & Bass EQ
• Remote Bass (RUX-KNOB or RUX-KNOB.2) Compatible

• Power at 4 ohms 600x1
• Power at 2 ohms 900x1
• Width 11 3/4"
• Height 2"
• Depth 7 5/8"

Alpine X-A90V

• Alpine ID Sound Quality
• Class-D Performance
• Rotatable Illuminated Alpine Badge
• Top-Side Control Panel
• Built-in Crossover & Bass EQ
• Remote Bass (RUX-KNOB or RUX-KNOB.2) Compatible

• Power at 4 Ohms 75x4 and 300x1
• Power at 2 Ohms 100x4 and 500x1
• Bridged at 4 Ohms 200x2
• Width 11 3/4"
• Height 2"
• Depth 7 5/8"

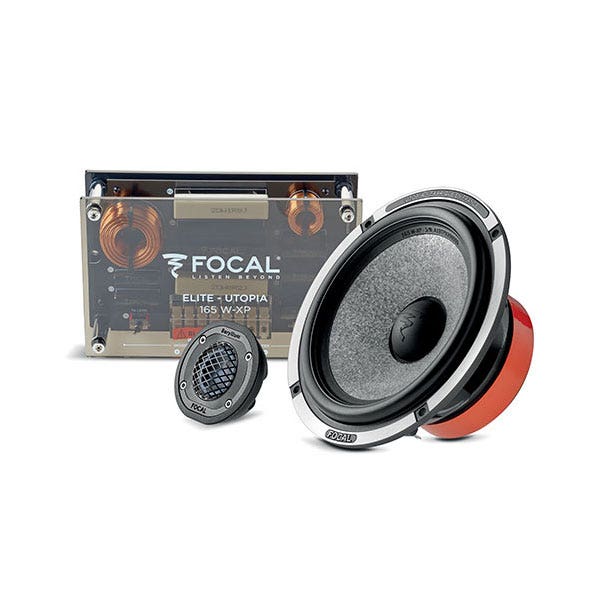

• Butyl Woofer Suspension
• Beryllium Inverted Dome Tweeter
• 12/18dB Bi-Amp Crossover

• 50 Watts RMS | 100 Watts Peak
• TKM "M" Profile Aramid Fiber Inverted Dome Tweeter
• K2 Power Sandwich Cone

• 60 Watts RMS x 4 + 400 Watts RMS x 1 at 4 Ohm
• 75 Watts RMS x 4 + 600 Watts RMS x 1 at 2 Ohm
• Remote Level Control
