JL Audio Evolution C3-650 6.5" Component Speaker System

JL Audio Evolution C3-650 6.5" Component Speaker System

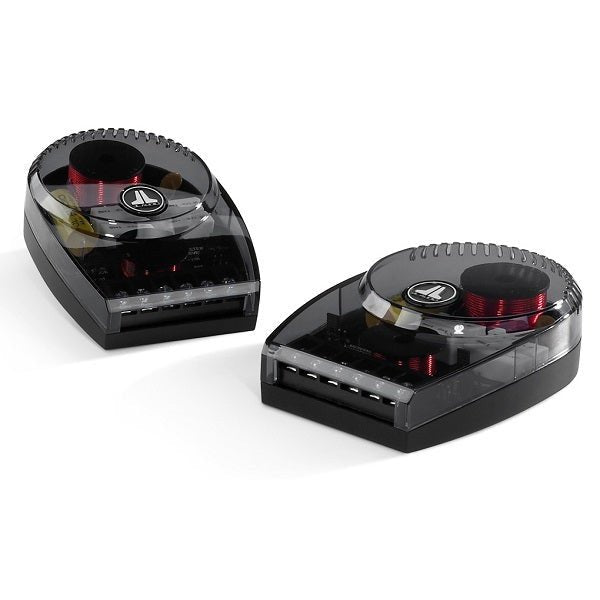

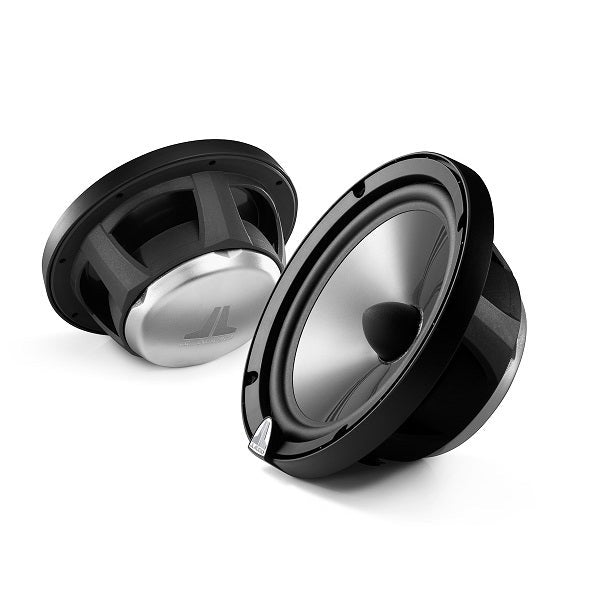

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application. The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures. C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo. General Specifications

• Continuous Power Handling (RMS) 75 W
• Peak Music Power 225 W
• Recommended RMS Amplifier Power (per Ch.) 25 - 150 W
• System Efficiency 90.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 48 Hz - 25 KHz ± 3 dB

Woofer Physical Specifications

• Frame Outer Diameter (A) 6.50 in / 165 mm
• Grille Tray Outer Diameter (B) 6.74 in / 171 mm
• Rear Cover Outer Diameter (C) 4.08 in / 104 mm
• Frontal Coaxial Tweeter Protrusion* (D) 0.75 in / 19 mm

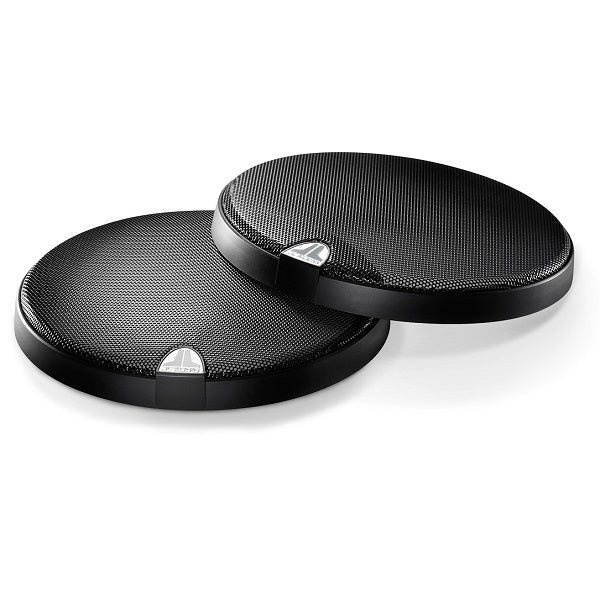

• Frontal Grille Protrusion** (E) 1.03 in / 26 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.55 in / 65 mm

*Frontal coaxial tweeter protrusion measured from mounting surface
**Frontal grille protrusion measured from mounting surface Tweeter Physical Specifications

• Flush Mount Fixture Diameter (A1) 2.12 in / 54 mm
• Surface Mount Fixture Diameter (A2) 1.93 in / 49 mm
• Flush Mount Mounting Hole Diameter (B) 1.875 in / 48 mm
• Flush Mount Fixture Mounting Depth (C) 0.71 in / 18 mm
• Flush Mount Tweeter Frontal Protrusion (D1) 0.32 in / 8 mm
• Surface Mount Tweeter Frontal Protrusion (D2) 0.95 in / 24 mm

Crossover Physical Specifications

• Width (W) 3.36 in / 85 mm
• Height (H) 1.44 in / 37 mm
• Depth (D) 4.72 in / 120 mm
