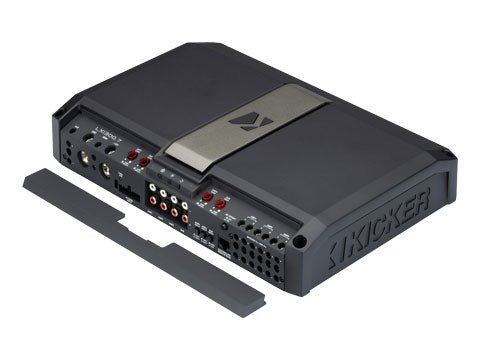

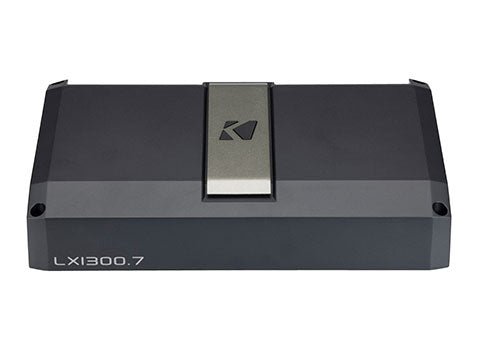

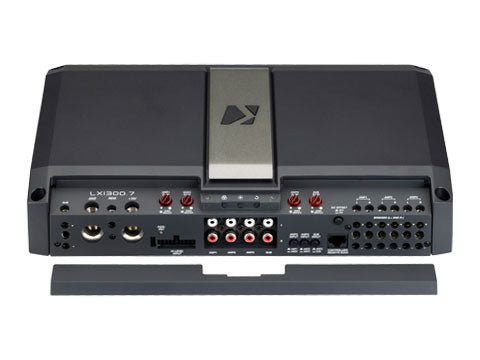

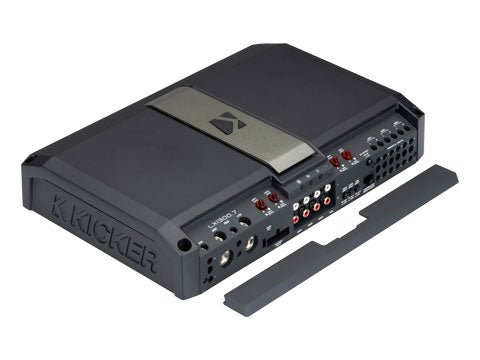

Kicker LX1300.7 7-Channel Amplifier
The KICKER LX-Series seamlessly blends high-performance SQL (Sound Quality Loudness) design with powerful output, incorporating industry feedback to deliver the most requested features. Every multi-channel amplifier is bridgeable and includes the LX Control Center (LXCC) for precise adjustments. Additionally, LX amps with sub sections come with the LX Remote Control (LXRC) featuring SHOCwave2.0™, KICKER’s advanced bass restoration technology.
Engineered from the Ground Up
The LX-Series is KICKER’s premium high-power amplifier line, designed in-house for maximum performance, flexibility, and longevity.
- LX Control Center (LXCC) Included – Fine-tune your entire system with precision.
- LX Remote Control (LXRC) for Sub Sections – Adjust bass levels directly from your dash.
- Efficient Class-D Design – Reduced current draw, extended playtime, and cooler operation.
- Gain-Match LEDs – Optimize gain settings effortlessly.
- Customizable Aesthetics – Reversible center panel with a choice of 11 RGB LED accent colors.
- Advanced FIT+™ Technology – Accepts both low- and high-level signals up to 40V with differential inputs that eliminate unwanted noise for crystal-clear sound.
- Versatile Turn-On Modes & Protection Features – Ensuring stability across thermal, circuit, and voltage conditions for reliable operation.
LX Control Center (LXCC) – Precision System Management
- Real-Time Diagnostics – Monitor battery voltage, LED output clipping, amp temperature, and protection status.
- Advanced Tuning Options – Adjust gain trim, left-channel time delay, and customize crossover settings (HP, LP, or BP) with selectable slope and frequency.
- Parametric Bass Boost – Fine-tune subwoofer output with 0-6dB boost, adjustable center frequency, and Q factor.
- Integrated 3.28 ft (1m) Cable – Directly connects to the amplifier for seamless control.
LX Remote Control (LXRC) – Subwoofer Control at Your Fingertips
- Dynamic Bass Adjustment – Effortlessly tweak bass levels with a dash-mounted remote.
- SHOCwave2.0™ Technology – KICKER’s 2nd-gen digital bass restoration algorithm recovers lost low-bass frequencies for a richer listening experience.
- Battery Voltage Display – Fuel-gauge-style readout keeps you informed.
- RGB LED Brightness Control – Customize the remote’s lighting to match your setup.
- Output Clipping Indicator – Prevents distortion, ensuring clean, powerful bass.
- Long 19.75 ft (6m) RJ45 Cable – Provides flexible installation options.
The KICKER LX-Series delivers exceptional power, precision tuning, and innovative features, making it the ultimate amplifier system for any serious audio enthusiast.
Specifications
RMS Power [Watts/Channel] @ 14.4V
Amp 1 & Amp 2 (Stereo Channels):
2Ω Stereo: 150 x 4
4Ω Stereo: 125 x 4
4Ω Bridged: 250 x 2
Amp 3 (Stereo Pair):
2Ω Stereo: 65 x 2
4Ω Stereo: 65 x 2
4Ω Bridged: 130 x 1
Sub Channel:
1Ω mono: 700W
2Ω mono: 550W
4Ω mono: 300W
Dynamic Power [Watts]
1500
Frequency Response [Hz]
Stereo Channels: 20–20k
Sub Channel: 10–160 (+0/-1dB)
Signal-to-Noise Ratio (a-weighted, re: rated power)
>95dB
Signal-to-Noise Ratio (ref: 1W output)
>75dB
Dimensions [in, cm]
Height: 2-3/8 (6 cm) Width: 8-7/16 (21.4 cm)
Length: 12-5/8 (32 cm)
Input Sensitivity
High level 1V–40V
Low level 125mV–5V
Variable Electronic Crossover
Amp 1 & Amp 2, Amp 3 (Stereo Channels):
Off/HP/LP/BP
HP: 20–5kHz
LP: 40–5kHz
Sub Channel:
LP 40–160Hz, 24dB/octave Linkwitz-Riley
Selectable Topology:
12, 18, or 24dB/oct Butterworth;
12 or 24dB/oct Linkwitz-Riley
Variable Subsonic Filter
24dB/octave Linkwitz-Riley,
variable hi-pass @ 10–80Hz (sub channel only)
KickEQ+™ (Sub Channel)
0–6dB, variable center 20–80Hz,
variable bandwidth 1–5
