JL Audio M3-650X-S-Gw-i 6.5" LED Marine Speakers

JL Audio M3-650X-S-Gw-i 6.5" LED Marine Speakers

Purpose-engineered and built for real marine duty, M3 coaxial systems deliver excellent performance at a more affordable price than our maximum-performance M6 models.

The M3-650X 6.5-inch coaxial speaker is designed around the standard marine 6.5-inch speaker format and features a wide mounting flange with a six hole mounting pattern.

The long excursion woofer design and excellent power handling make your music come through loud and clear at speed, or at anchor. The woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.

A 0.75-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics.

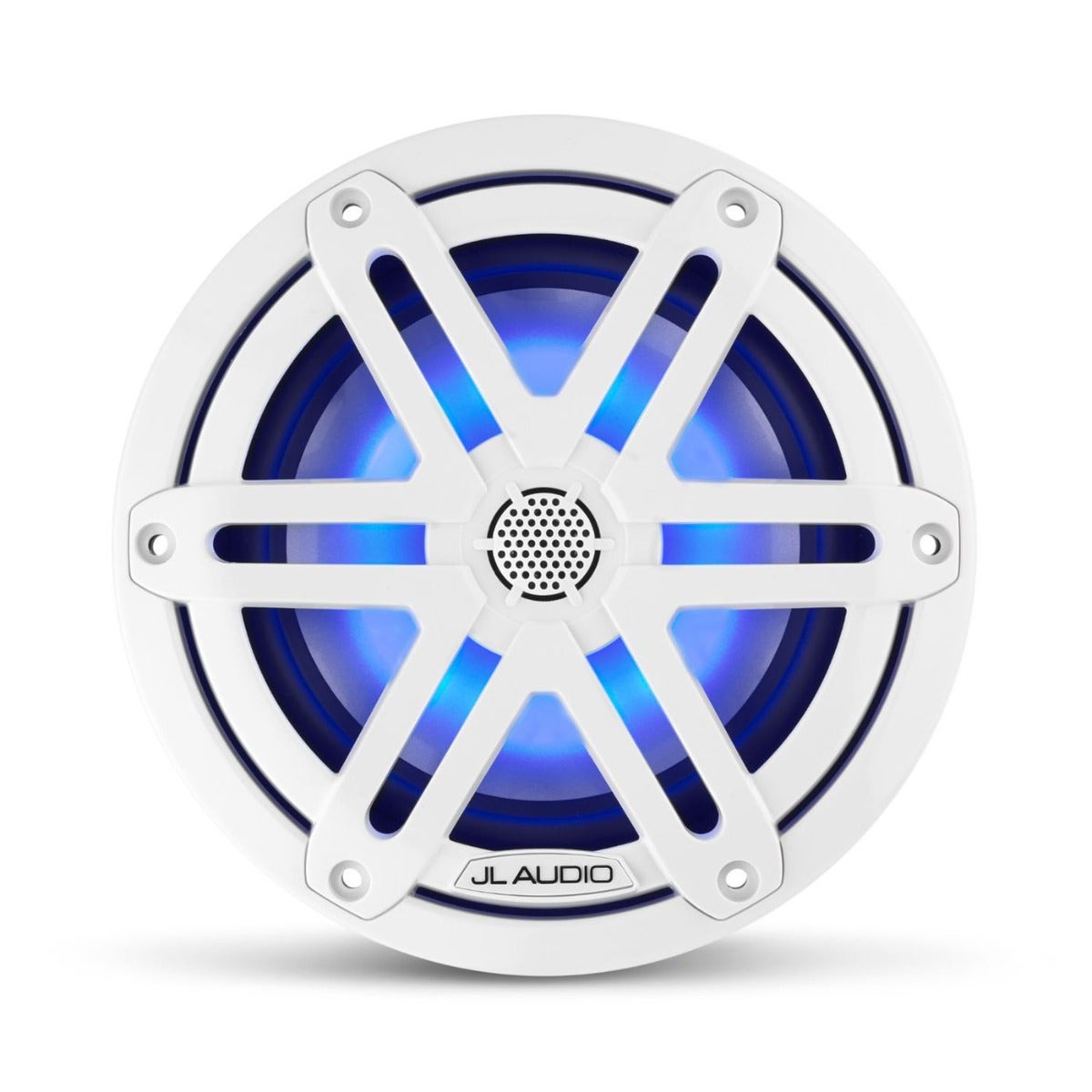

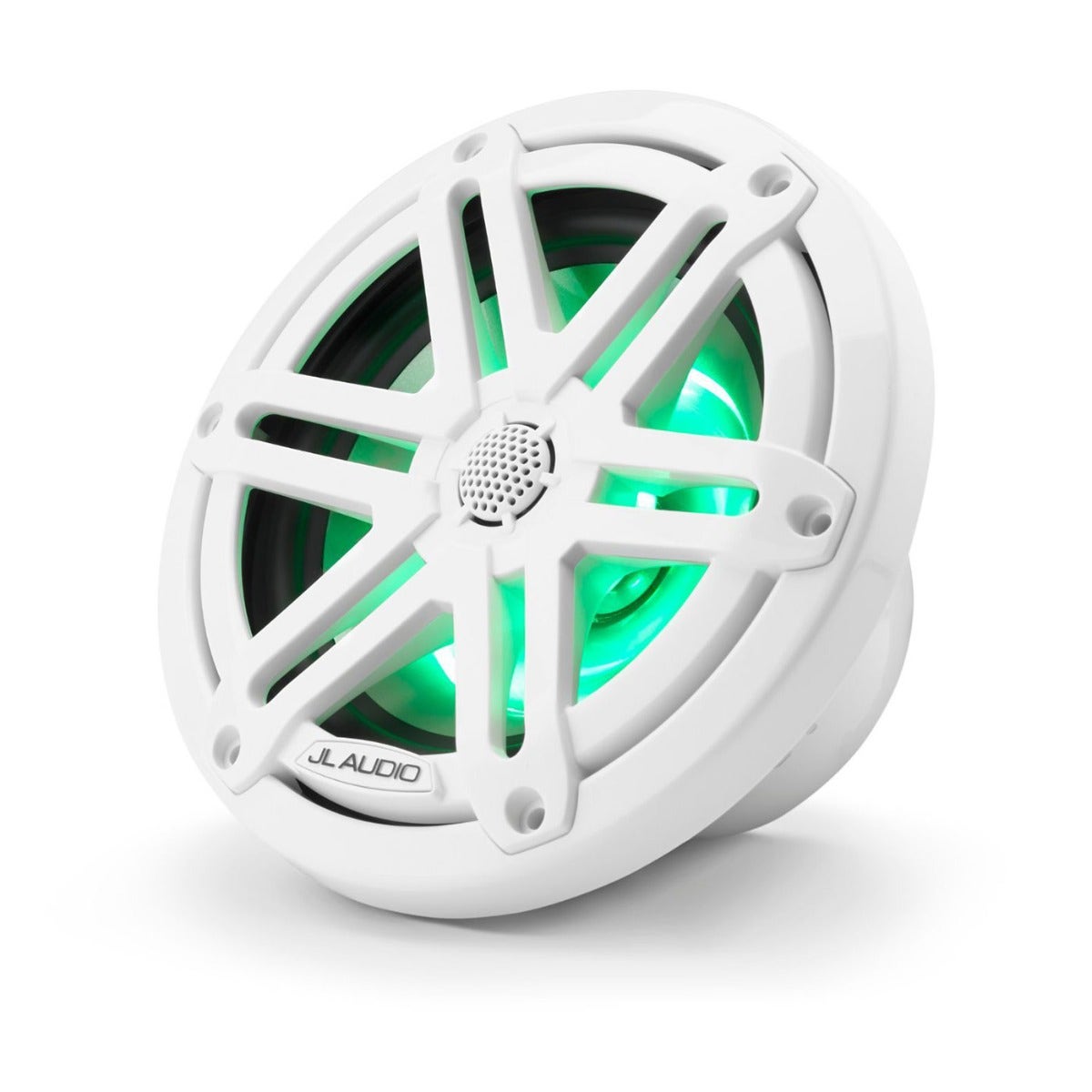

Integrated into the Sport Grille’s frame, the internal LED lighting assembly was meticulously designed to uniformly illuminate the woofer’s cone area with a lively glow, adding a dramatic visual experience to your high seas journey. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.

Although M3-650X Coaxial Systems can be used with as little as 20 W per channel, for best audio performance we recommend amplifiers capable of between 75-100 W of continuous power per channel.

Materials Used

• Injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically Formulated with UV inhibitors for marine duty.
• Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.

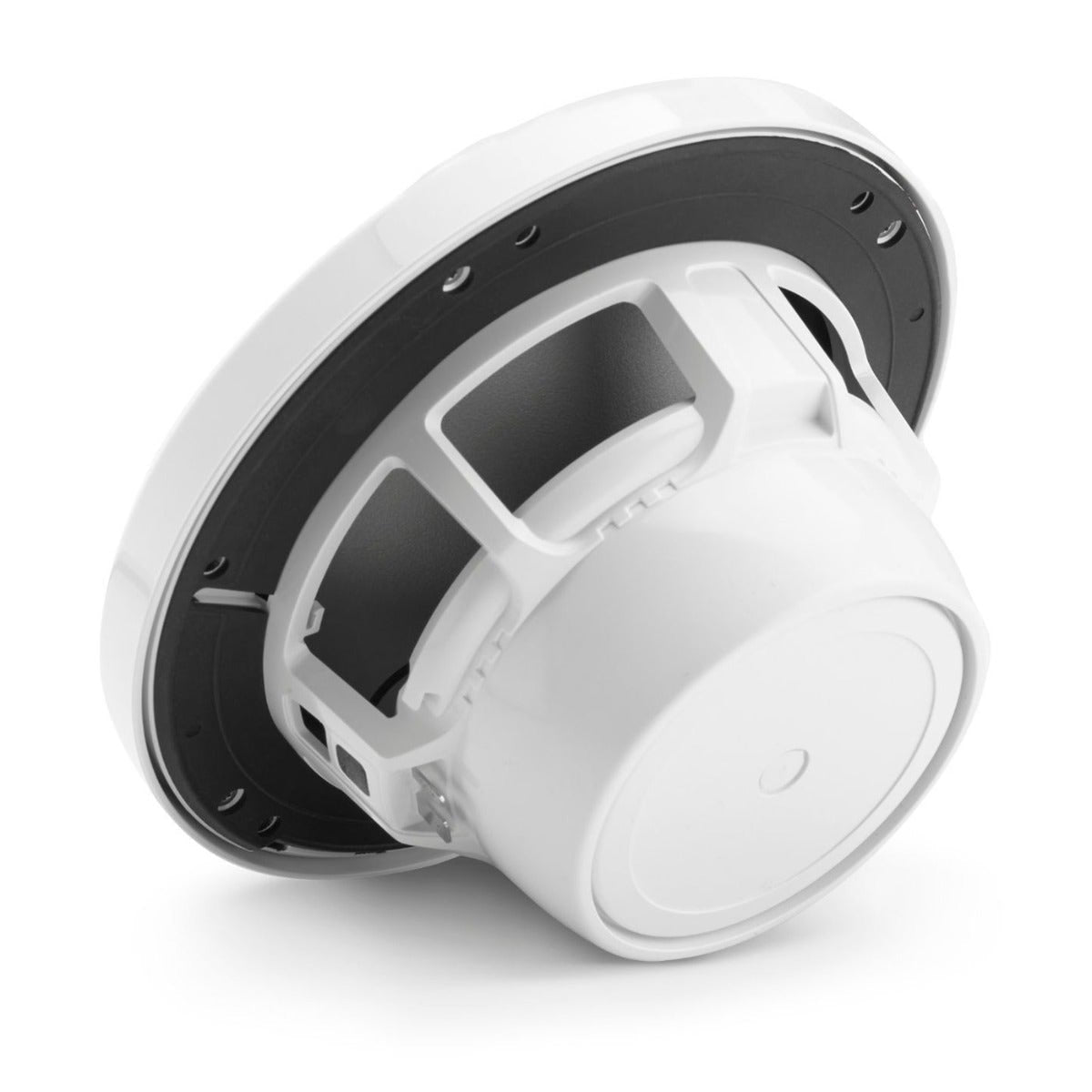

• Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
• Gold-plated, marine-grade brass connection terminals
• Marine-grade stainless steel mounting hardware is included.

Specifications

General Specifications
Continuous Power Handling (RMS): 60 W
Peak Music Power: 225 W
Recommended Amplifier Power (RMS): 20 - 125 W / Ch.
System Efficiency: 89.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 55 Hz - 25 kHz ± 3 dB

Coaxial Physical Specifications
Frame Outer Diameter (A): 6.90 in / 175 mm
Bolt Hole Circle Diameter (B): 6.125 in / 155.5 mm
Motor Outer Diameter (C): 3.85 in / 98 mm
Frontal Grille Protrusion* (D): 0.973 in / 25 mm
Mounting Hole Diameter (E): 5.00 - 5.25 in / 127 - 133 mm
Mounting Depth (F): 2.74 in / 69.5 m
*Frontal grille protrusion measured from mounting surface
