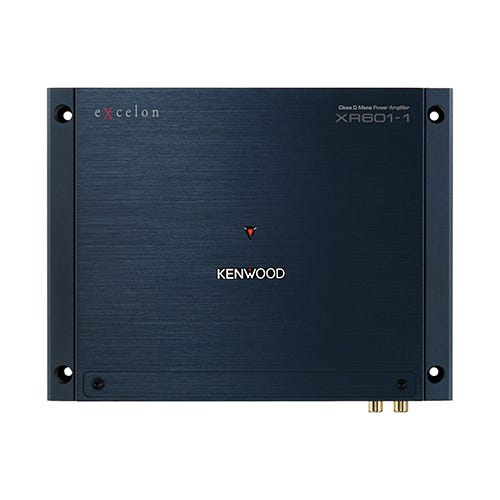

Kenwood eXcelon XR601-1 Subwoofer Amplifier

Kenwood eXcelon XR601-1 Subwoofer Amplifier

High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.

* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

High Performance Parts
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving high resolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality.

Deep Bass Sound
By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.

Enhanced Signal To Noise Ratio
The feedback value of the current XR Amplifier has been optimized to improve the S/N ratio. As a result, the noise level has been reduced by up to 40%.

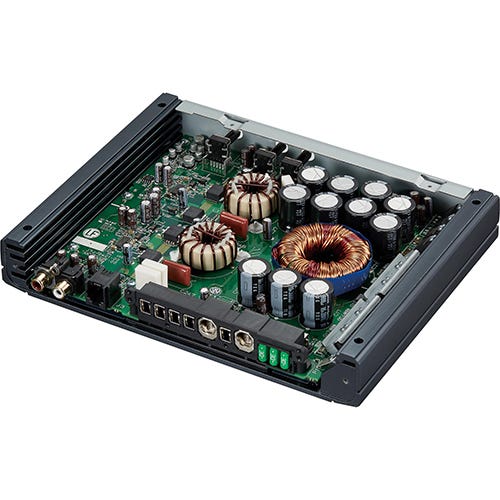

Specialized Circuit Design
The noise reduction system employs a special layout that separates the analog circuit, digital amplifier circuit and power supply circuit. This keeps interference between the circuits to a minimum, decreasing noise and thereby achieving high performance and sound quality.

Wired Remote Control
The wired remote control allows you to adjust the volume of a subwoofer when connected to the head unit.

Specifications
Operating Voltage: 14.4V (11 - 16 V allowable)
Current Consumption: 46 A
Dimensions (W x H x D): 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8)
Weight: 1.6 kg (3.5 lbs)
Warranty: 2-Year
Rated Power Output 14.4 V:
     400 W x 1 (4Ω) (20 Hz - 200 Hz, 1.0% THD)
     600 W x 1 (2Ω) (100 Hz, 1.0% THD)
Frequency Response: 20-200Hz(±1dB)
Input Sensitivity: 0.2 V - 5.0 V (MIN-MAX)
Input Impedance: 10 kΩ
Signal to Noise Ratio: 100 dB
Low Pass Filter Frequency (-24 dB/oct.): 50 Hz - 200 Hz (variable) Low-Pass Filter Frequency
Dimensions (W x H x D): 8 11/16" x 1 3/8" x 6-5/8"
