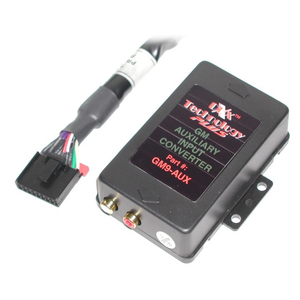

Auxiliary RCA audio input for select 1995-2002 GM group vehicles.
Vehicle specific information:
- Radio must have external CD Changer capabilities.
- Not compatible with factory external CD changer present. Takes place of changer.
- Not compatible with factory RSE (Rear Seat Entertainment) present.
- Connects to 9-pin connector at headunit.
Note:
- Not compatible with single DIN 6-disc (in-dash) slave CD Changer; GM9-AUX takes the place of this
6-disc slave CD Changer.
- GM radios 2000 and earlier are not capable of controlling two units; therefore, these radios will
need to have the slave unit disconnected.
- Camaro radio must be AM/FM/CASS radio.
- Not compatible with 1995 -1999 AM/FM/CD radios.
- Not compatible with vehicles equipped with in-dash 6-disc slave units.
- Pontiac radios AM/FM/SINGLE CD headunits use 9-Pin data port for an OEM cassette deck and are
NOT compatible with the GM9-AUX.
- Pontiac radios 2000 and earlier are not capable of controlling two units; therefore, these radios will
need to have the slave unit disconnected in order to use the GM9-AUX.
Vehicle Application:
Cadillac
Chevrolet
- 1996-2005 Astro Van
- 2002 Avalanche
- 1998-2002 Blazer
- 1997-2002 Camaro
- 1996-1999 Cavalier
- 1995-1997 Impala
- 1996-1999 Lumina
- 1997-2000 Malibu / Maxx
- 1996-1999 Monte Carlo
- 1995-2002 C/K Truck
- 1995-2002 Silverado
- 1995-2002 Suburban
- 1995-2002 Tahoe
- 1997-1999 Venture
GMC
- 1998-2002 Jimmy
- 1999-2001 Envoy
- 1996-2005 Safari
- 1995-2002 Sierra
- 1998-2002 Sonoma
- 1995-2002 Yukon
Oldsmobile
Pontiac
- 1996-1999 Bonneville
- 1996-2002 Firebird
- 1996-2000 Grand AM
- 1996-2003 Grand Prix
- 1999 Montana
- 1996-1999 Sunfire
- 1996-1998 TransSporrt
|
