Small is not the real story here.
Making an amplifier small is great, of course... but not if power and sound quality are sacrificed.
This is why our engineering team focused on achieving world-class fidelity first, and then on making our
HD amplifiers amazingly powerful, efficient and small. These efforts led to a remarkable switching
amplifier technology called Single Cycle Control™, which allows all of these goals to be achieved.
This exclusive core amplifier technology is mated to our regulated, intelligent power supply
(R.I.P.S.), advanced thermal management systems and a full complement of studio-grade processing
features to put the all-new HD amplifiers in a performance class all their own. We invite you to sonically
compare the HD amplifiers to any amplifier, at any price... We think you will quickly discover that all
the old amplifier compromises have suddenly vanished.

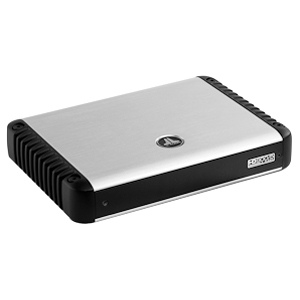

HD900/5 Five-Channel Class D System Amplifier
Features:
| |
HD900/5 |
| Description: |
Five-Channel Class D System Amplifier |
| Patented Technology: |
Single Cycle Control™ (U.S. Patent #6,084,450*) |
| Inputs: |
Three Stereo Pairs (Front, Rear and Sub) |
| Front Crossover: |
Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave
Butterworth or 24 dB/octave Linkwitz-Riley) HP |
| Rear Crossover: |
Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave
Butterworth or 24 dB/octave Linkwitz-Riley) HP |
| Subwoofer Crossover: |
Continously-variable (50 Hz - 500 Hz), selectable-slope (12 dB/octave
Butterworth or 24 dB/octave Linkwitz-Riley) LP |
| Preamp Output: |
2-channel (pass through or tracking LP) |
| Infrasonic Filter: |
Defeatable 24dB/octave at 30 Hz |
| Front and rear speaker
output connections: |
Accept up to 12 AWG wire |
| +12V and Ground connections: |
Accept up to 4 AWG wire |
Notes: R.I.P.S. Regulated, Intelligent Power Supply,
RealSink™ Heat-Management System,
*Patented technology used under exclusive license for mobile audio from PowerPhysics, Inc. -
Newport Beach, CA |
Click here to
download the owner's manual (PDF).
HD900/5 Five-Channel Class D System Amplifier
Specifications:
| |
HD900/5 |
| Rated Power Front Channels: |
100W RMS x 2 @ 4O (11V - 14.5V)
75W RMS x 2 @ 1.5-3O (11V - 14.5V) |
| Rated Power Rear Channels: |
100W RMS x 2 @ 4O (11V - 14.5V)
75W RMS x 2 @ 1.5-3O (11V - 14.5V) |
| Rated Power Subwoofer Channel: |
500W RMS x 1 @ 1.5-4O (11V - 14.5V) |
| THD at Rated Power: |
<0.03% @ 4O (front and rear ch.)
<0.05% @ 5 ohm (subwoofer ch.) |
| S/N Ratio (Front & Rear Channels): |
>108.5 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
|
| S/N Ratio (Subwoofer Channel): |
>95 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Frequency Response (Front and Rear
Channels): |
12 Hz - 28 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel):
|
12 Hz - 10 kHz (+0, -1dB) |
| Damping Factor (Front and Rear Channels):
|
>400 @ 4O per ch. / 50 Hz
>200 @ 2O per ch. / 50 Hz |
| Damping Factor (Subwoofer Channel): |
>800 @ 4O / 50 Hz
>400 @ 2O / 50 Hz |
| Input Range: |
Switchable from 200mV - 2V RMS (Low)
to 800mV - 8V RMS (High) |
| Dimensions (L x W x H): |
10.74 in. x 8.29 in. x 1.93 in.
273 mm x 211 mm x 49 mm
(Width Measurement Includes Plugs) |
|
| Height (H) |
1.93 in / 49 mm |
| Width (W) |
10.74 in / 273 mm |
| Depth (D) |
8.29 in / 211 mm |
| Net Weight |
6.85 lb / 3.11 kg |
|
