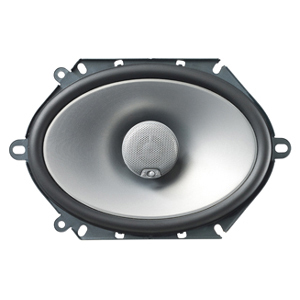

Infinity Reference 6832CF Speaker - 2-way Speaker - 60W (RMS) / 180W (PMPO). 6" x 8" / 5" x
7" two-way loudspeaker with Plus One® woofer one and edge-driven textile dome tweeter.
Key Features
- Plus One® woofer cones - This patent pending technology deliver a cone with more surface
area
than competing models of the same size. The result is increased bass output and higher efficiency.
- True Four Ohms— All Reference speakers feature two ohm voice coils. Original factory-installed
speaker wiring in many cars is 18-22 gauge. This wire, and heating in the voice coil when power is
applied,
increase the impedance “seen” by the amplifier or head unit. The impedance of Reference Speakers
has
been adjusted to compensate for this increase and can be safely driven by any head unit.
- Edge-driven textile dome tweeters - These are not commonly used w-domes, but fully-edge-
driven
domes like those found in better home audio speakers. The benefit is increased power handling and
reduced distortion at high output levels. This technology also allows for better integration with the
mid/woofer.
- Unipivot™ (patent no. 6,002,780) allows the tweeter to be pointed at the listeners location
even
when the speaker is mounted off axis. This optimizes the stereo image and ensures a more uniform
response.
- Tweeter level adjustment - The 6832cf also features a tweeter level adjustment located on the
front
of the speaker and can be set at the reference level of 0dB. If the speakers are located low in the
doors or
if you are looking for a brighter sound, set the tweeter at +3dB.
Specifications
- Power Handling, RMS: 60 watts
- Power Handling, Peak: 180 watts
- Sensitivity (2.83V @ 1m): 93dB
- Frequency Response: 49Hz - 21kHz
- Impedance: 2 ohms
- Mounting Depth:2-3/8" (60mm)
|
