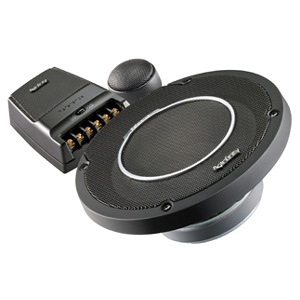

6-1/2" two-way component system including Plus One® woofer and 1" textile dome tweeter
with I-
mount (patent no. 5,859,917) tweeter kit and Starfish™ OEM adapter.
Key Features
- Plus One® woofer cones - This patent pending technology deliver a cone with more surface
area
than competing models of the same size. The result is increased bass output and higher efficiency.
- True Four Ohms— All Reference speakers feature two ohm voice coils. Original factory-installed
speaker wiring in many cars is 18-22 gauge. This wire, and heating in the voice coil when power is
applied,
increase the impedance “seen” by the amplifier or head unit. The impedance of Reference Speakers
has
been adjusted to compensate for this increase and can be safely driven by any head unit.
- Edge-driven textile dome tweeters - These are not commonly used w-domes, but fully-edge-driven
domes like those found in better home audio speakers. The benefit is increased power handling and
reduced distortion at high output levels. This technology also allows for better integration with the
mid/woofer.
- Each Infinity Reference component system includes a pair of laboratory optimized passive
crossover
netorks that include tweeter adjustment. If the tweeters are located low in the doors or if you are
looking
for a brighter sound, set the tweeter at +3dB.
- To facilitate proper installation and location of the tweeter, each Reference component system
includes Infinity's patented I-Mount™ (patent no. 5,859,917) tweeter mounting kit including the
Starfish™ OEM adapter.
Specifications
- Power Handling, RMS: 90 watts
- Power Handling, Peak: 270 watts
- Sensitivity (2.83V @ 1m): 93dB
- Frequency Response: 53Hz - 21kHz
- Impedance: 2 ohms
- Mounting Depth: 1-15/16"
|
